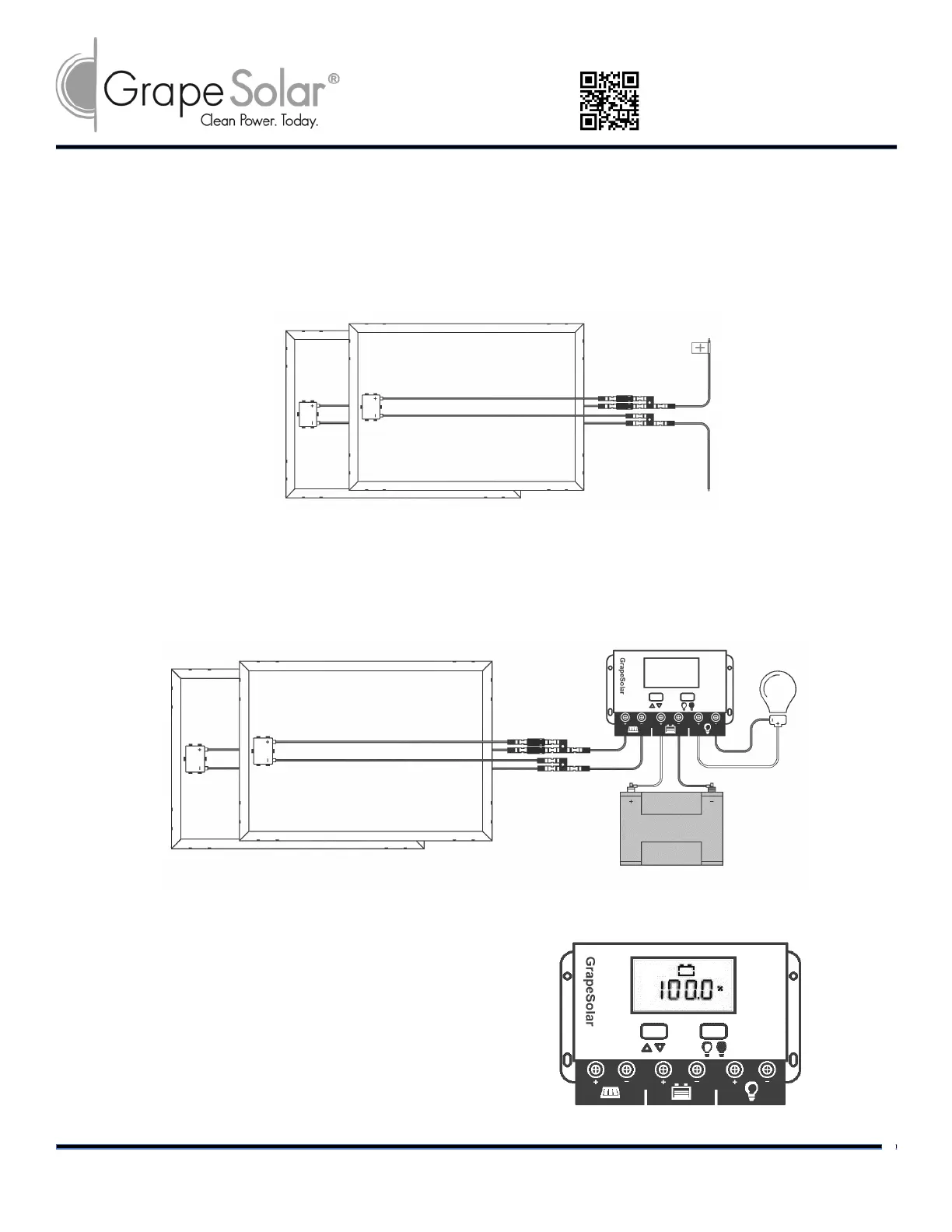

Connect the positive panel cables to the “female” fuse ends from the previous connections. (TIP: to help
distinguish the two bare wire ends, place a piece of tape on this bare wire end deriving from this positive solar
output.)
Connect the negative panel cables to the “male” branch connector ends of the other MC4 cable half .
Connect the positive bare wire end to the “+” PV input of the charge controller .
Connect the negative bare wire end to the “-” PV input of the charge controller .
Remove the panel covering. In good sunlight, the
charge controller’s ”BAT %” should increase to
100%. When the controller is set to “LOAD ON,”
the system will provide power through the load
control output or through the USB port.
7
8
*12V load device
is not included
with kit
