QuickStart Setup
Valid from June 2018
GS-400-KIT PHOTOVOLTAIC POWER GENER-
ATION SYSTEM
CONFIGURATION MANUAL Rev. 180601

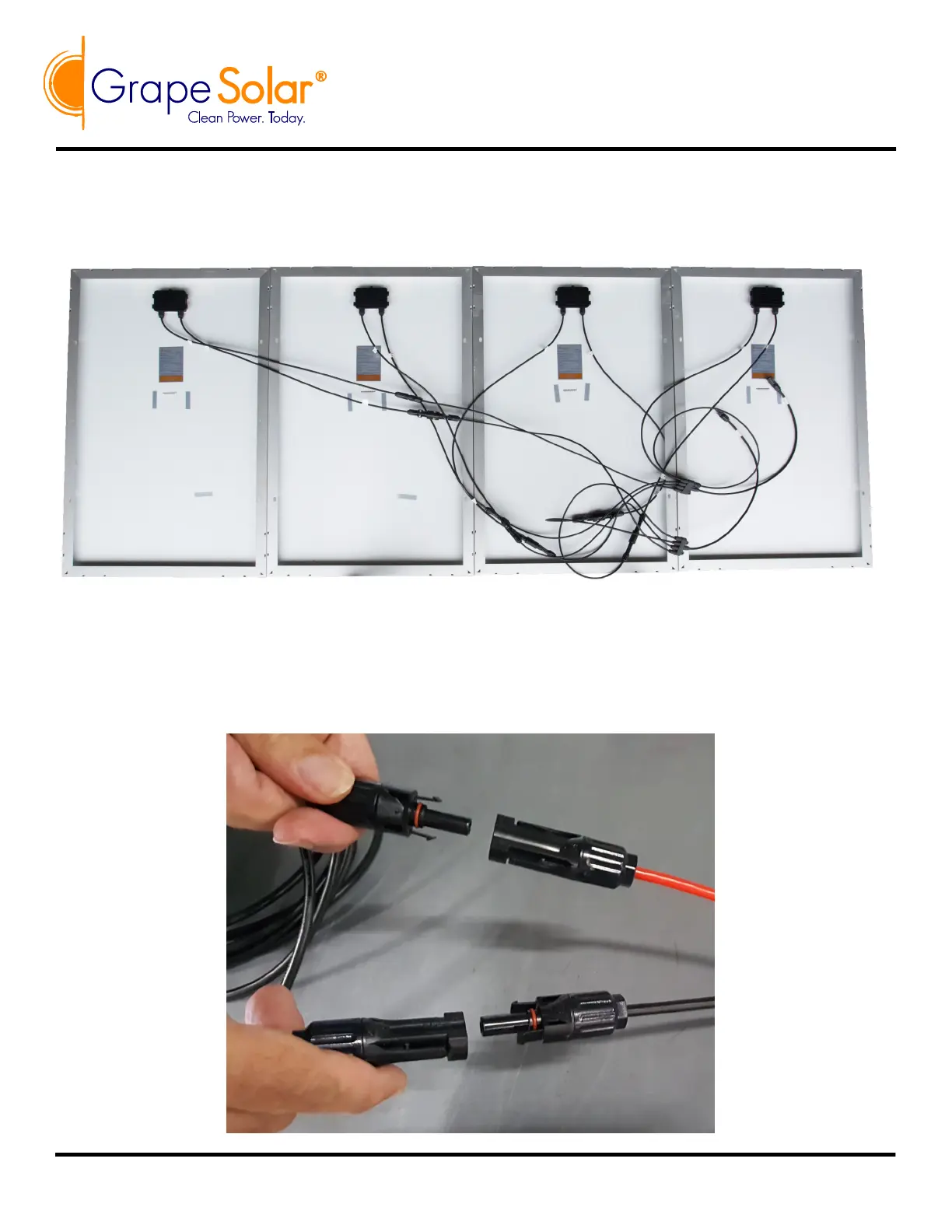

Step 7: Connect the MC4 outputs of the parallel cables to the 15-foot MC4 extension cables. Then connect the
MC4 outputs of the 15-foot cables to the 6” MC4-to-bare wire pair as shown below:
4-panel parallel cable connecon
