QuickStart Setup
Valid from June 2018
GS-400-KIT PHOTOVOLTAIC POWER GENER-
ATION SYSTEM
CONFIGURATION MANUAL Rev. 180601

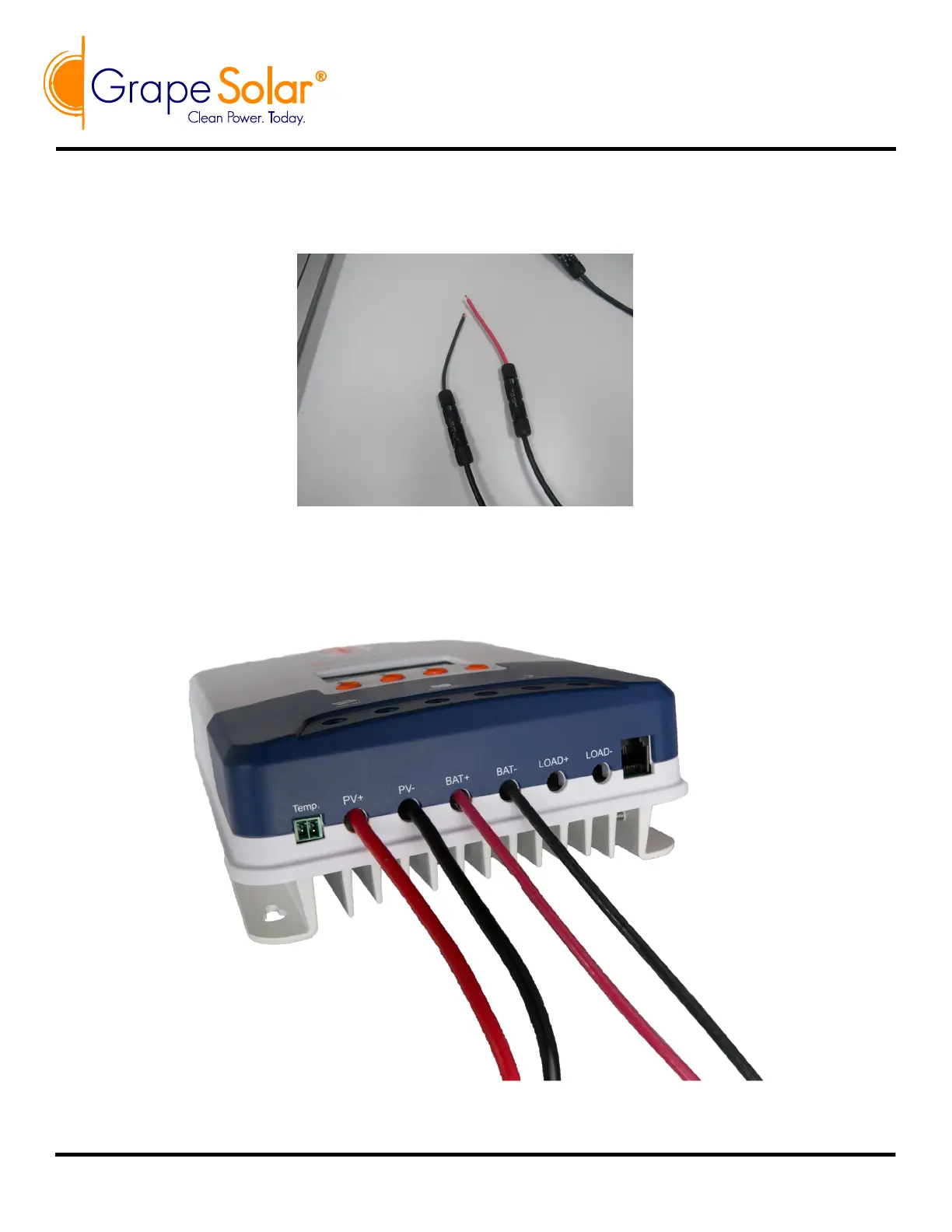

Step 8: Connect the bare wire end of the red cable to the “PV Positive” input of the charge controller, and the
black cable end to the “PV Negative” input (the left-hand set of terminals).
MC4 to bare connecon
