PHOTOVOLTAIC MODULES SAFETY
AND INSTALLATION MANUAL Rev. L
VALID IN NORTH AMERICA ONLY
Valid from February 2011
1305 South Bertelsen Road, Eugene, Oregon 97402, USA
www.grapesolar.com
Tel: 1-877-264-1014 (toll free), 1-541-349-9000, Fax: 1-541-343-9000
14

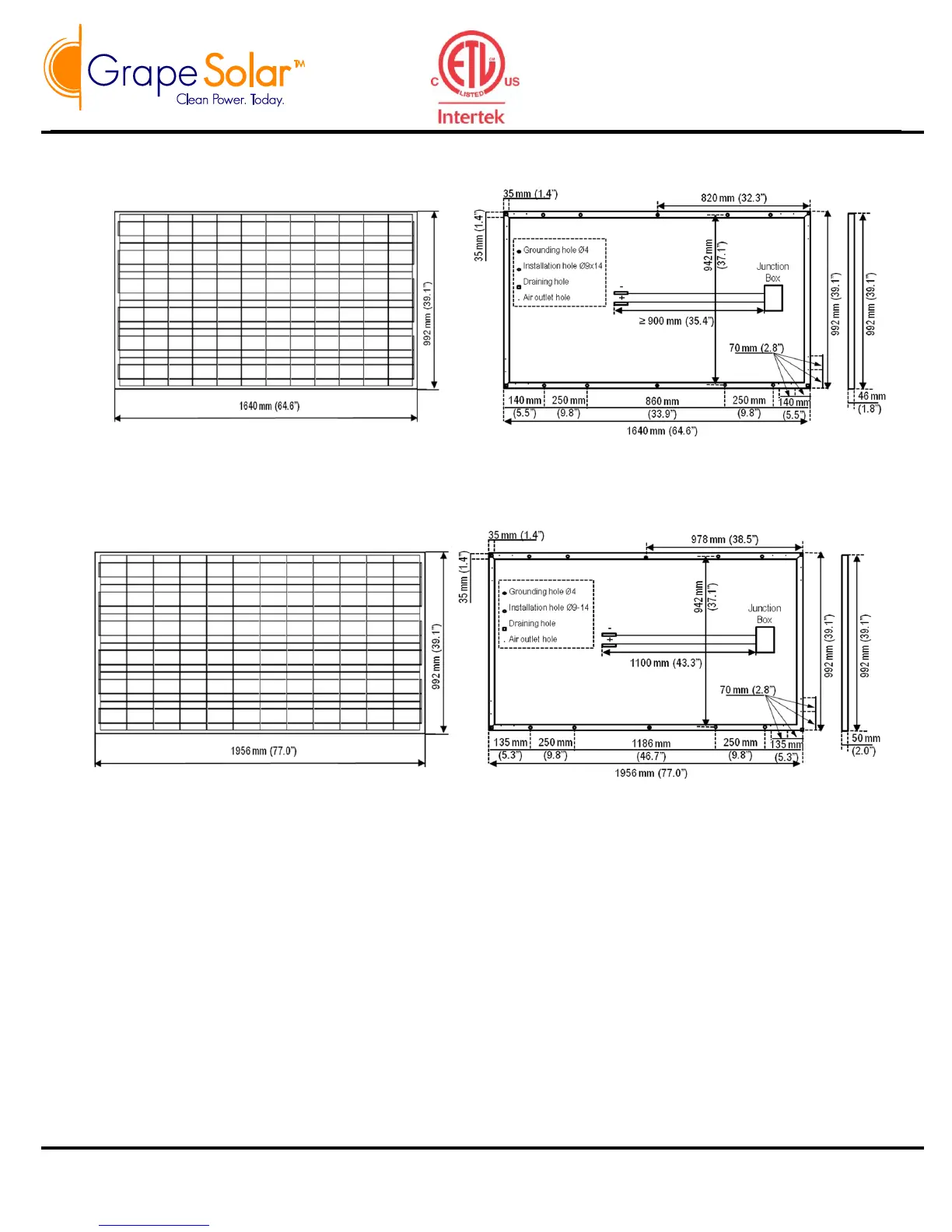

Figure-5 Dimension of Module, and Position of Mounting Holes, GS-P-220-EUG to GS-P-230-EUG
Figure-6 Dimension of Module, and Position of Mounting Holes, GS-P-260-EUG to GS-P-280-EUG
