STEP 5: Optional QuickSwitch
Install the switch in a new hole in the pick guard (or control plate).
Plug QuickSwitch into the QSW pin contact on the Acousti-Phonic Intelligent
Pre-amp. (Diagram 11).
•
•
If you are NOT installing the optional QuickSwitch, skip to STEP 6, page
19. When a guitar equipped with an Acousti-Phonic Intelligent Pre-amp is con-
nected to an amplier via mono cable, the Acousti-Phonic Intelligent Pre-amp
automatically provides a blended magnetic/GHOST signal. To play with just a
mag sound the GHOST volume control is set to zero. To play with just an acoustic
sound the mag volume control is set to zero. This is ne unless you need to
change quickly from one sound to the other. Then you have to adjust two volume
controls quickly.
A Quick Switch Assembly is available to allow quick switching between mag,
acoustic or blended sound. In the mag position the switch mutes the GHOST
signal leaving just the mag sound. In the acoustic position the switch mutes the
mag signal leaving just the acoustic sound. In the centre position the switch has
no effect, leaving the blended sound.
Quick Switch Assembly part number PE 0111-00
To install and wire the Quick Switch Assembly:
For clarity the wiring diagrams show only the new wires.

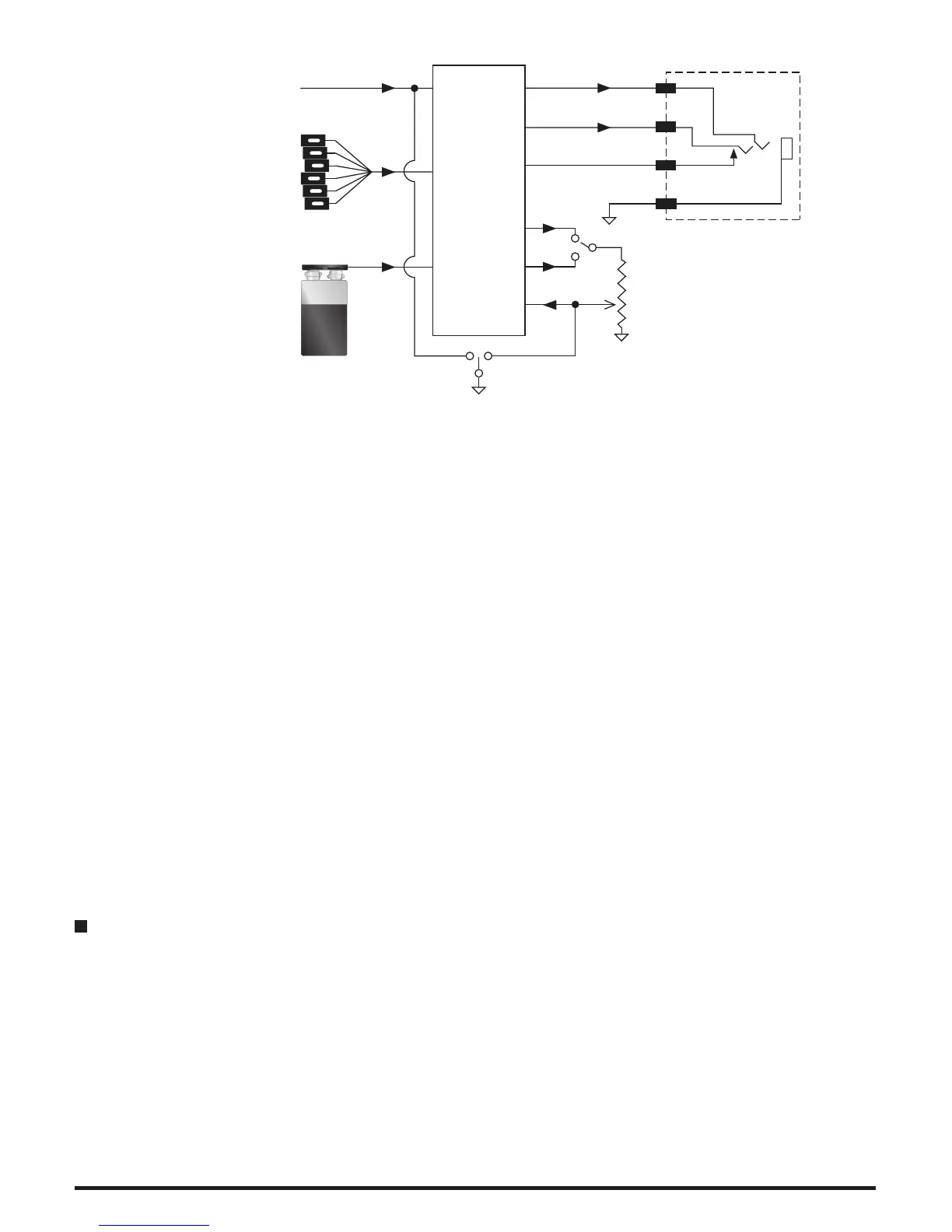

Optional QuickSwitch & Mid/Dark Switch Schematic
Acousti-Phonic Intelligent Pre-amp
Stereo Jack
GHOST
Volume
GHOST
Pickups
Magnetic Pickups
and Controls
Tip
Ring
Switch
Shank
TIP
RING
SW
GHOST
VOL
MAG
PIN
BATT
MID
Mid
Boost
Battery
Quick
Switch
Diagram 10 Continued.
Pickups
To Next Page
