GrassFlap 412T - Page 10

Cotter Pin
WARNING:
First ½” after
tting must
be straight
WARNING:
First ½” after
tting must
be straight
A
B
C
D
FLAP CONNECTION
3/16”
Clevis Pin
10-99-22
Flap Connection:
A) Place 1/4” bushing in ap.
B) Slip clevis onto ap.
C) Insert 3/16” pin with head
on spring side.
D) Insert cotter pin and bend
around pin.
Bushing Cable
Pin Flap End
10-99-28
Zip Tie Cable
to Pedal
2x
Install Pedal
A) Mark and drill two 11/32” holes, if needed, for pedal
mounting bolts.
B) Tighten two 5/16” x 1” hex bolts to secure pedal
assembly to mower deck.
GrassFlap.com Phone: (502)594-3546 10

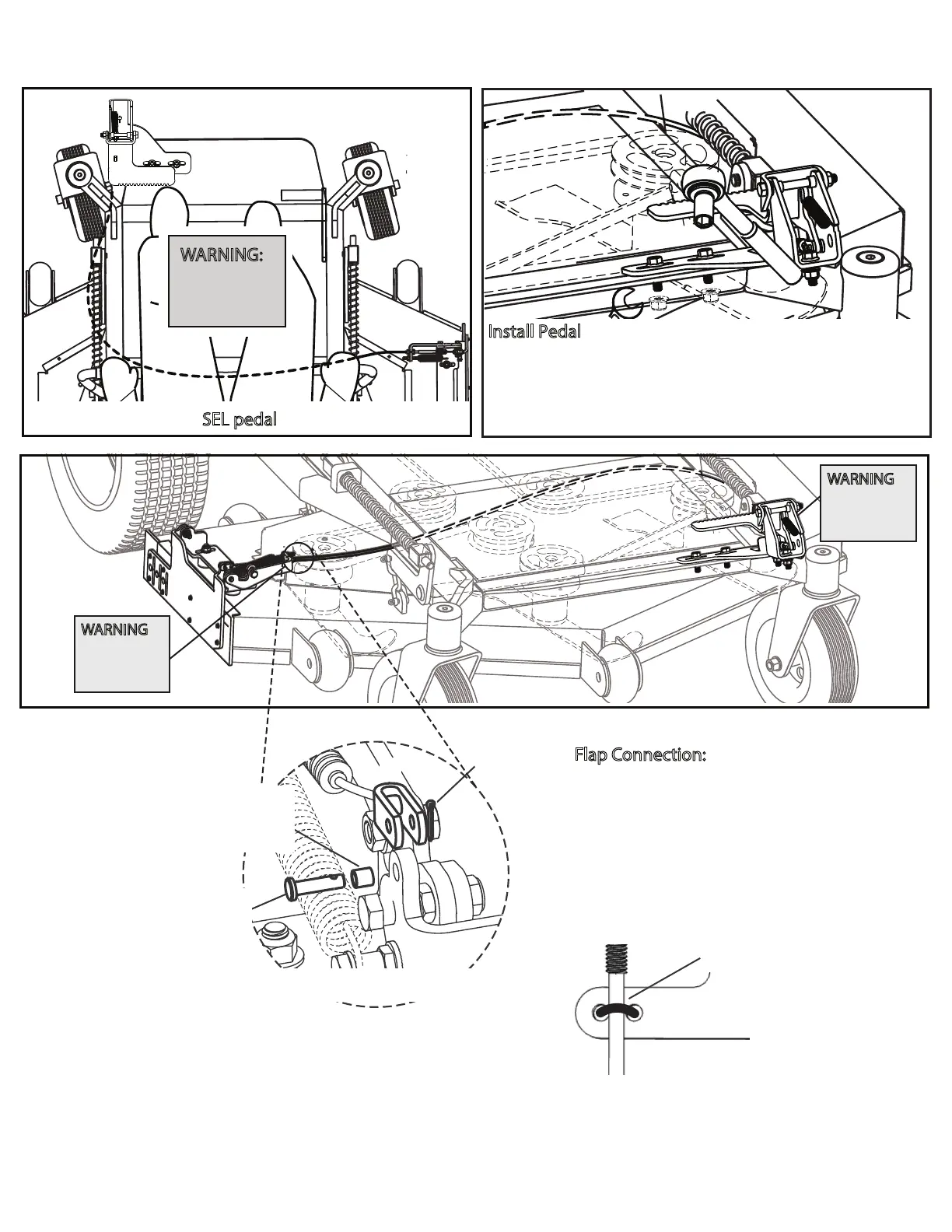

SEL Pedal Location & Cable Routing
Preferred location for SEL pedal assembly.
WARNING:
First ½” after
tting must
be straight
