5
Assembling the TAXI SPORT II
The wing panels

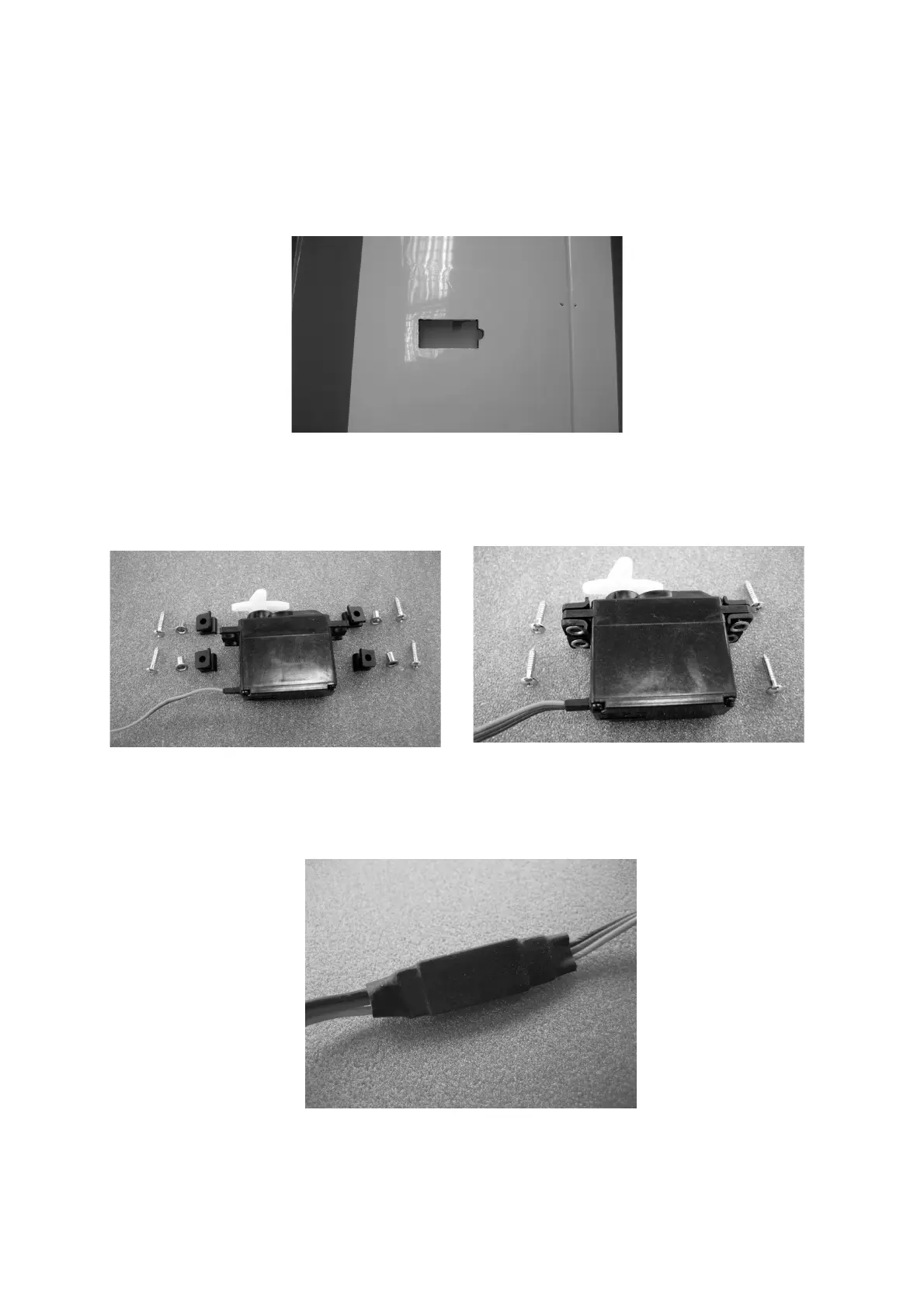

Use your fingertips to locate the opening in one wing for the aileron servo, and
remove the film over it using the tip of a hot soldering iron or a sharp balsa knife.
Press the rubber grommets into the servo mounting lugs, followed by the brass
tubular spacers, with the flange on the underside. The spacers are easier to fit if you
slip them onto a suitable screwdriver first.
Connect the appropriate extension cable to the servo lead, and fit a heat-shrink
sleeve or adhesive tape round the connectors to prevent them working loose.
Route the servo lead through the wing from the servo recess. Fit the servo in the
opening as shown in the photo, drill 1.5 mm Ø pilot-holes for the retaining screws,
and secure it using the screws supplied in the servo accessory pack.
