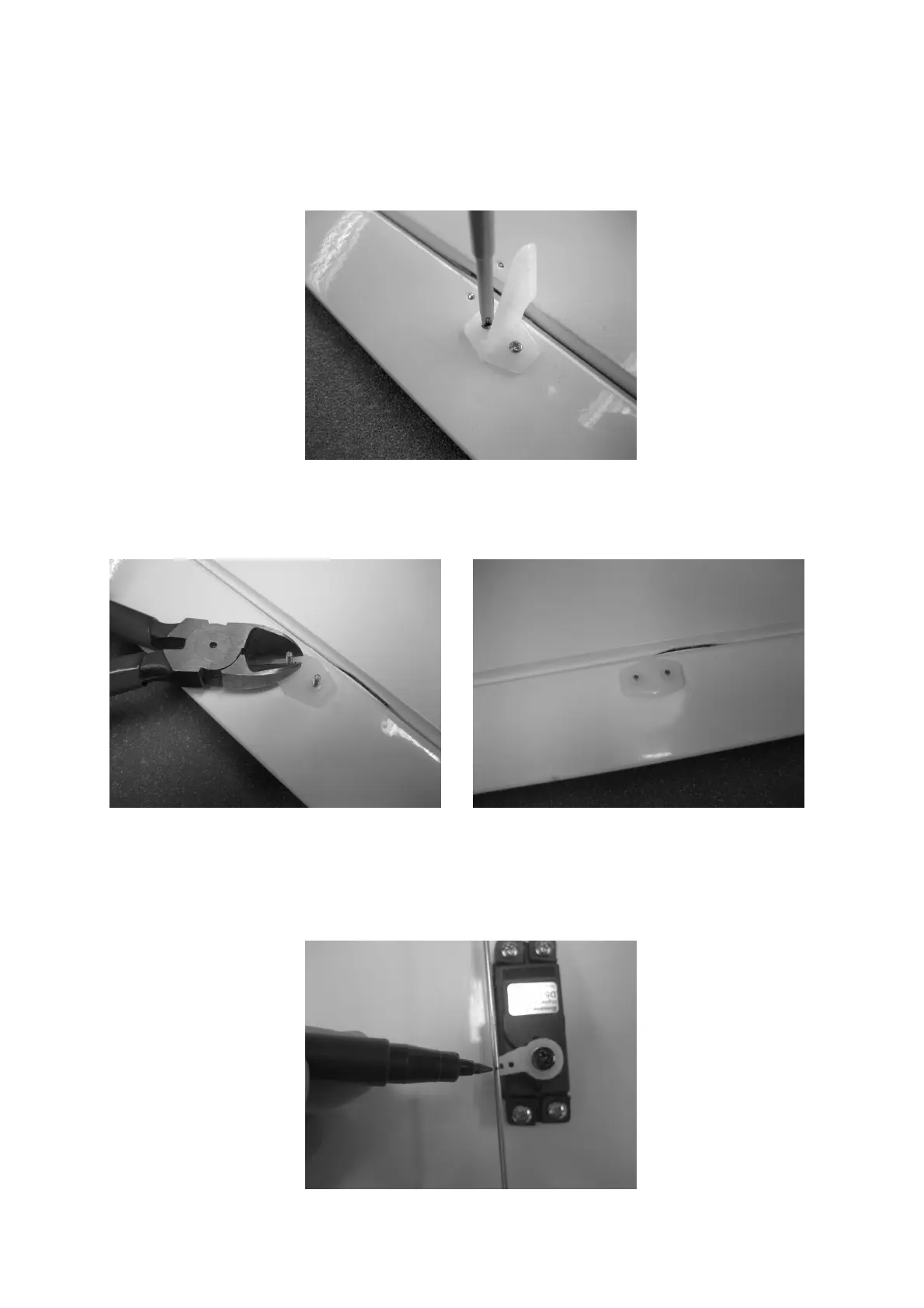

Fix the horn to the aileron using the pan-head screws and plastic spreader plate
supplied. Tighten the screws just to the point where the horn cannot shift - take care
not to over-tighten them.
Snip off excess screw length using side-cutters before filing back the cut ends flush
with the spreader plate.
Locate the M2 threaded pushrod (180 mm long) and fit a locknut and clevis on the
threaded end. Connect the clevis to the second hole from the outside of the aileron
horn. Use a felt-tip pen to mark the point where the pushrod crosses the linkage hole
in the servo output arm.
