21

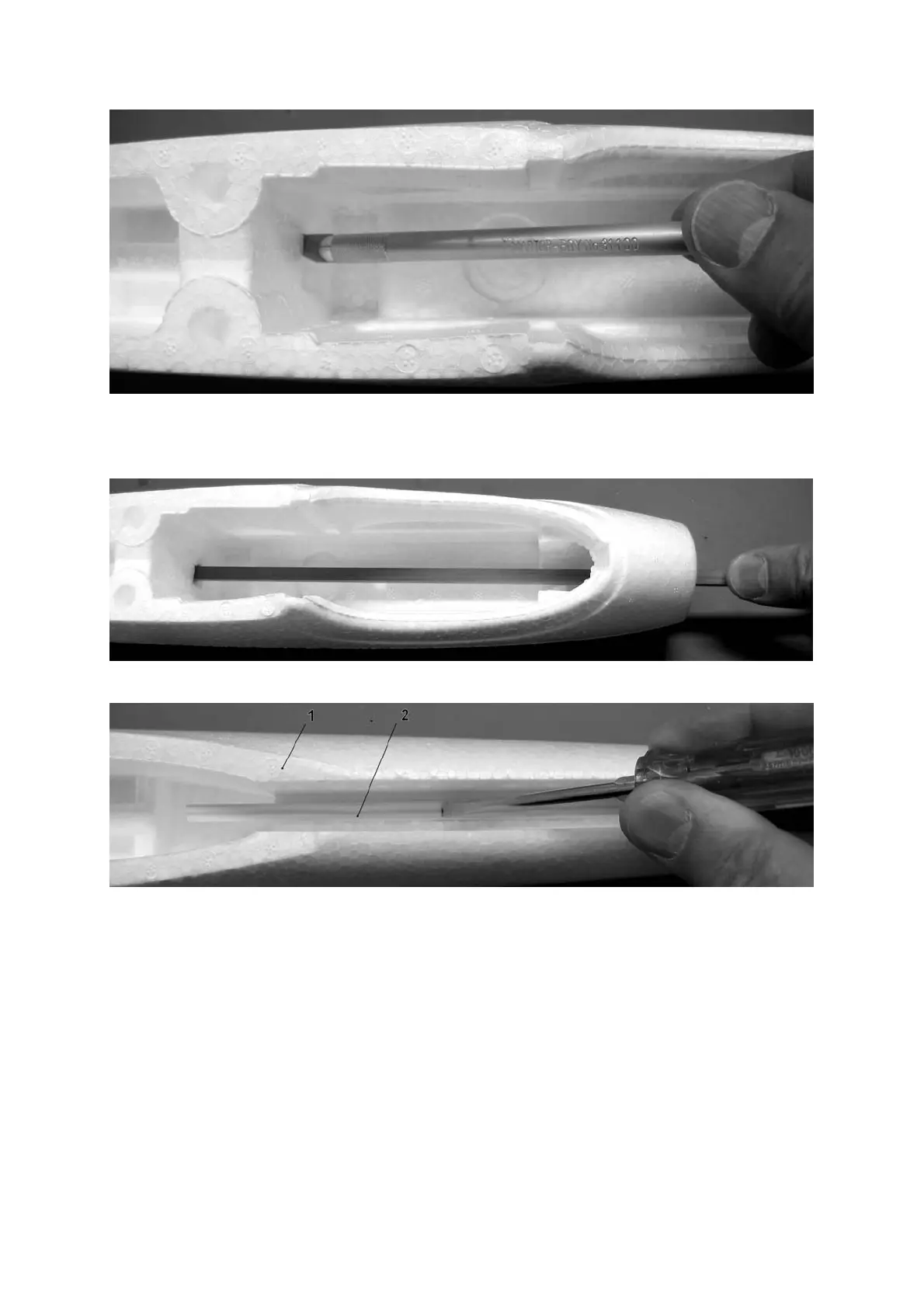

Cut a slot about 10 x 6 mm in size at the bottom of the fuselage for the servo leads to
pass through.
Use the spruce strip (2) to remove the unwanted material from the slot.
Glue the fuselage reinforcement (2) in the fuselage (1), taking care to keep it exactly
central, and push it firmly into place. Check that the spruce strip does not push the
fuselage out of shape.
