GB - 12

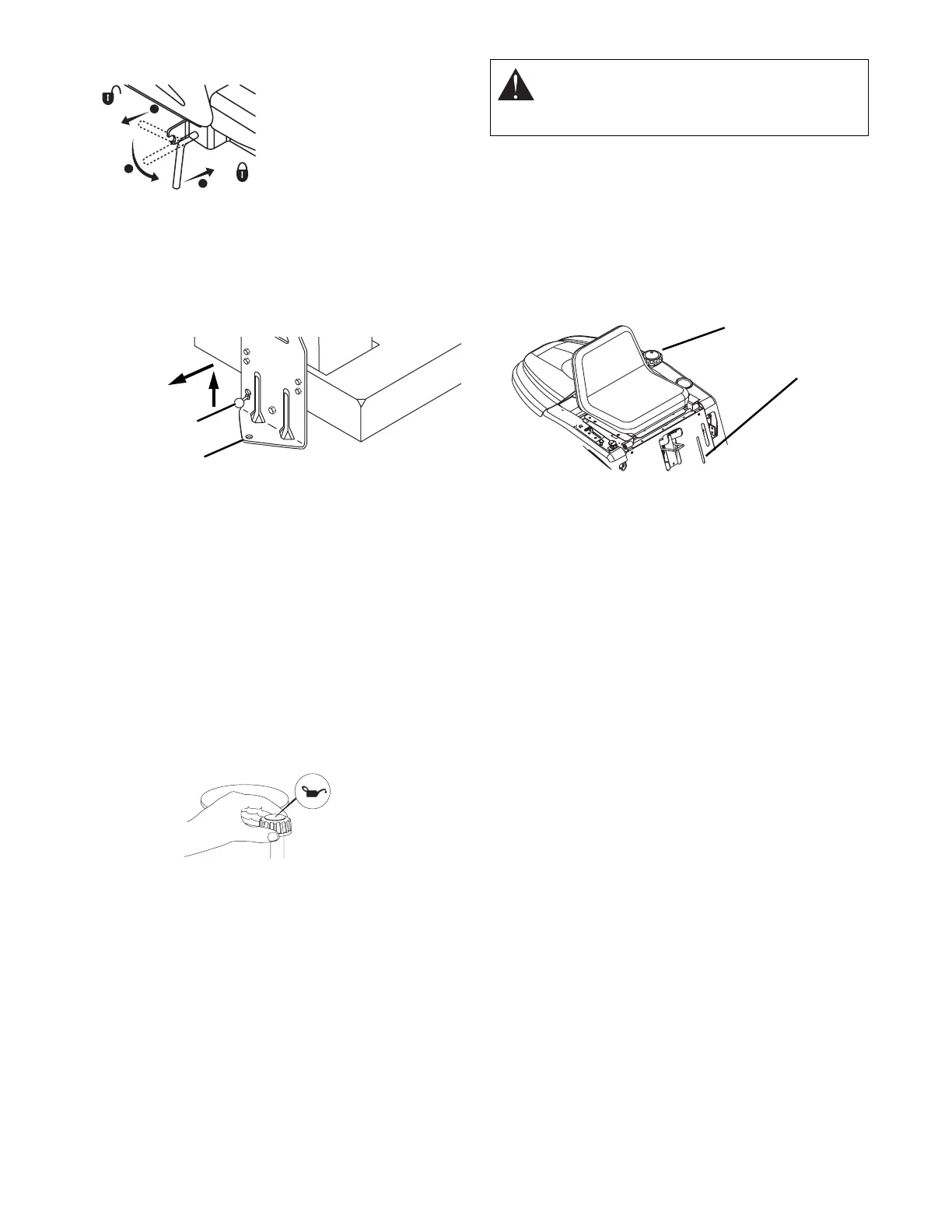

To properly latch and lock
the lock pin.
❶ Pull the pin out of the
latched unlocked position.
❷ Rotate the lock pin
downward 90°.
❸ Push lock pin in to
locked position.
Transmission Dump Valves
Opening the Dump Valves allows the unit to be pushed
by hand. Dump Valves must be closed to drive unit.
• To Open the Dump Valves: Lift up on the Dump
Valve Rod Knob and pull rearward until the
expanded section of the rod comes through the
hole in the trailer hitch. Push the rod back down
to lock it in position.
• To Close the Dump Valves: Lift up on the Dump
Valve Rod and push it forward.
PRE START
1. Check Engine Oil Level
The engine in your tractor has been shipped from the
factory, already filled with summer weight oil. Check
engine oil with tractor on level ground.
1. Remove oil fill cap/dipstick and wipe clean.
2. Reinsert the dipstick and rest the oil fill cap on the
tube. Tighten the cap lightly.
3. Wait a few seconds, remove and read oil level. If
necessary, add oil until "FULL" mark on dipstick is
reached. Do not overfill.
For cold weather operation you should change oil for
easier starting (See "Oil Viscosity Chart" in Engine
Manual). To change oil, see Engine Manual.
2. Check Fuel Level
The fuel level is shown through a window in the control
panel next to the parking brake.
Refer to Engine Manual for proper fuel.
To add fuel to the fuel tank:
1. ALWAYS place unit in open or well ventilated
area.
2. Stop engine and allow to cool for two minutes.
3. Clean the fuel cap and the area around the fuel
cap to prevent dirt from entering the fuel tank.
4. Remove the cap from the fuel tank.
5. Fill the fuel tank to not less than 1/2 inch of
bottom of tank filler neck. Use care; do not spill
fuel.
6. Replace the cap on the fuel tank and tighten.
7. ALWAYS clean up any spilled fuel before starting
the engine.
STARTING THE ENGINE
NOTE: Before starting, read warm and cold starting
procedures below.
1. The operator must be seated.
2. Travel-Steering Control levers must be in the
"NEUTRAL-LOCK" position.
3. The PTO Switch must be in the "OFF" position.
4. For 2048, 1842 - If the engine is cold, apply
choke.For 1740- Place Throttle/Choke control in
Choke position. See Engine Manual for detailed
instructions.
5. Set throttle to proper starting position (2048,
1842 only). See Engine Manual.
6. Turn the ignition key clockwise to the "START"
position. Release the key when the engine starts.
IMPORTANT: Do not run starter continuously for more
than fifteen seconds. If the engine does not start after
several attempts, move throttle control to "FAST"
position, wait a few minutes and try again. If engine still
does not start, move the throttle control back to the
choke position and retry. If engine still does not start,
refer to Troubleshooting.
1
2
3
OE0790
Dump Valve Rod
Trailer Hitch
OE0301
OE0520
WARNING: Fuel is highly flammable and its
vapors are explosive. Handle with care.
NO smoking, NO sparks, NO flames.
Fuel Cap
OE0690
Fuel Level Window
