Gravely ZT X 52 User Manual

46 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

05102200C • 2/17

Printed in USA

ENGLISH

FRANÇAIS

E10

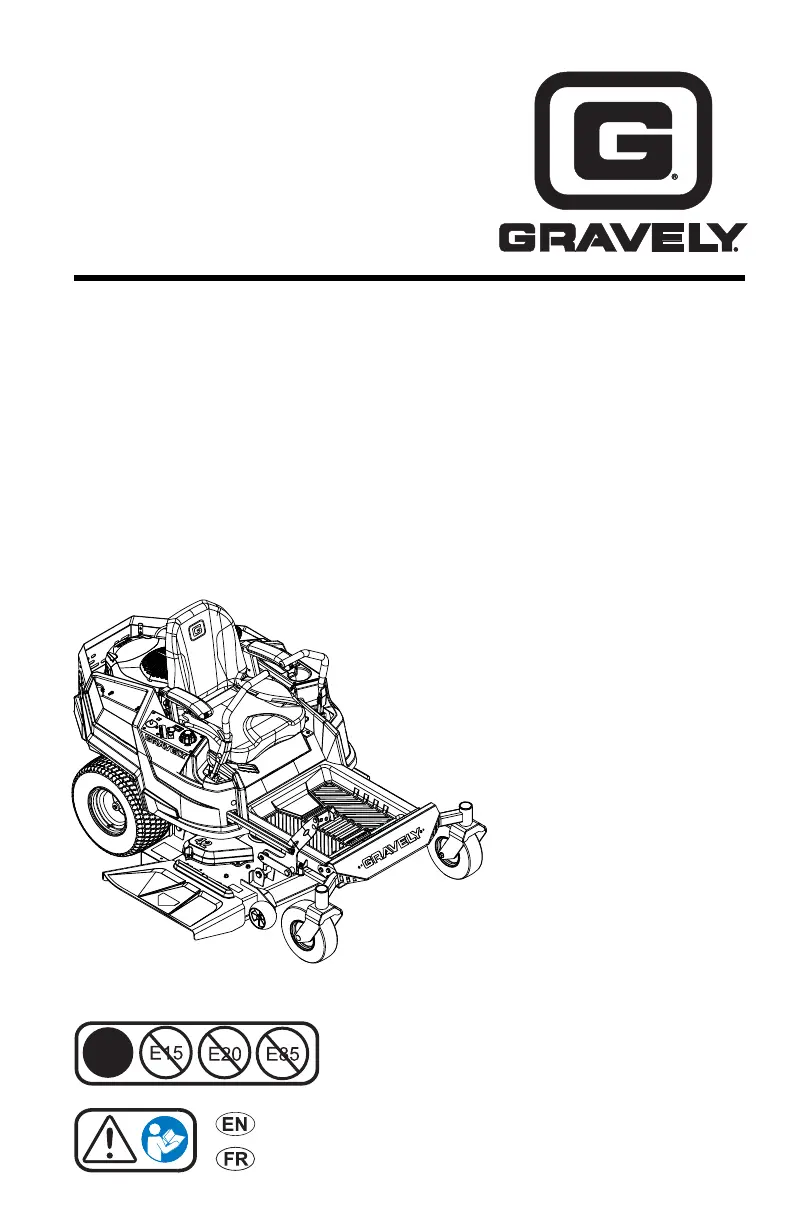

ZT X

Operator’s Manual

Manuel du Utilisateur

ZT XL

™

™

915202 – ZT XL 42

(SN 020000 +)

915204 – ZT XL 52

(SN 020000 +)

915206 – ZT XL 42

(SN 020000 +)

915216 – ZT XL 60

(SN 020000 +)

915218 – ZT XL 60

(SN 020000 +)

915230 – ZT X 52

(SN 020000 +)

915236 – ZT X 52 CARB

(SN 020000 +)

915238 – ZT XL 42 CARB

(SN 020000 +)

915240 – ZT XL 52 CARB

(SN 020000 +)

915242 – ZT XL 60 CARB

(SN 020000 +)

915172 – ZT X 42

(SN 020000 +)

915174 – ZT X 52

(SN 020000 +)

915176 – ZT X 42 CARB

(SN 020000 +)

915200 – ZT XL 52

(SN 020000 +)

Models

Table of Contents

Questions and Answers:

C
Christopher CarsonAug 20, 2025
What to do if my Gravely Lawn Mower engine does not start?
- R
  Richard OwensAug 20, 2025
  If your Gravely Lawn Mower engine won't start, several factors could be at play. First, ensure the Safety Interlock System is properly engaged and functioning; if it's faulty, it needs checking. A depleted fuel tank is a common culprit, so replenish it with fuel. Contaminated fuel can also prevent starting, necessitating a replacement with clean fuel. Check the battery; if it's discharged, charge it. Poor connections between the battery and its cables can hinder starting, so tighten or clean them. Inspect the spark plug wires for looseness and examine the spark plugs themselves, replacing them if faulty. If these steps don't resolve the issue, there may be an electrical or engine fault, in which case you should contact your Gravely dealer.
J
Jeffrey Estrada DVMAug 22, 2025
Why won't my Gravely Lawn Mower engine start?
- M
  Mark HorneAug 22, 2025
  There are several reasons why your Gravely Lawn Mower engine might not be starting. It could be due to the Safety Interlock System not being engaged or being faulty. Another reason could be that the fuel tank is empty or the fuel supply is contaminated, so you should fill the fuel tank or replace the fuel with clean fuel. Also, the battery might be discharged, or the connection between the battery and battery cables may be poor, so ensure to charge the battery or tighten/clean the battery and battery cables. Finally, the spark plug wires could be loose or the spark plugs faulty, so connect the spark plug wires or replace the spark plugs.
J
Jared Patel MDAug 25, 2025
How to improve cutting quality of my Gravely Lawn Mower?
- T
  Taylor FreemanAug 25, 2025
  If your Gravely Lawn Mower exhibits poor cutting quality, several factors may be responsible. Ensure the mower blades are level and the mower deck pitch is correct. Dull or faulty mower blades will also impact cutting performance, so sharpen or replace them as needed. Avoid mowing at excessively high speeds, as this can compromise the cut quality. Inspect the belt tension and condition; replace the deck drive belt if it's in poor condition. Also, avoid setting the cutting height too low, and for very tall grass, consider mowing twice.
Z
zacharywalkerAug 26, 2025
What to do if my Gravely ZT X 52 Lawn Mower does not drive?
- H
  Haley LarsonAug 26, 2025
  If your Gravely Lawn Mower does not drive, ensure that the transaxles are engaged by checking and engaging the levers. If the problem persists, the ground drive belt may be faulty, or the transaxles themselves might be faulty, requiring you to contact your Gravely dealer.
S
shepherdmichaelAug 27, 2025
What to do if Gravely ZT X 52 Lawn Mower has poor cutting quality?
- D
  Doris DiazAug 27, 2025
  If your Gravely Lawn Mower has poor cutting quality, consider the following: * Check if the mower blades are level or the mower deck pitch is incorrect. * See if the mower blades are dull or faulty—sharpen or replace them as needed. * Reduce your mowing speed. * Avoid setting the cutting height too low; for very tall grass, mow twice.
W
William HoffmanAug 29, 2025
What to do if Gravely Lawn Mower does not drive?
- F
  framirezAug 29, 2025
  If your Gravely Lawn Mower isn't driving, the transaxles might be bypassed, so engage the levers.
C
charles17Aug 31, 2025
Why is my Gravely Lawn Mower engine running rough?
- L
  Lisa Flores DVMAug 31, 2025
  If your Gravely Lawn Mower engine is running rough, first check the choke control knob; if it's in the 'on' position (applicable to models 915204, 915206, 915218, 915230, 915236, 915238, 915240, 915242), move it to the 'off' position. Another potential cause is a plugged air filter cartridge, which should be cleaned or replaced. If neither of these resolves the issue, the engine itself may be faulty, and you should contact your Gravely dealer.
K
kevin00Sep 2, 2025
What to do if PTO malfunctions on my Gravely Lawn Mower?
- E
  Edward KelleySep 2, 2025
  If the PTO (Power Take-Off) on your Gravely Lawn Mower is malfunctioning, start by ensuring the operator presence switch is engaged by sitting on the operator seat. If the issue persists, the operator presence switch may be faulty, and you should contact your Gravely dealer. Also, inspect the deck drive belt for any faults and replace it if necessary. If the problem continues, the PTO switch, wiring, connectors, or clutch may be faulty, requiring you to contact your Gravely dealer.
S
Shannon FoxSep 4, 2025
Why does my Gravely ZT X 52 engine overheat?
- B
  Brett West MDSep 4, 2025
  If your Gravely Lawn Mower engine overheats, start by checking the engine oil level and adding oil if it is low. Also, inspect the cooling fins for any blockages and clean the engine if necessary. If the issue persists, the engine itself may be faulty, and you should contact your Gravely dealer.
E
elizabeth93Sep 6, 2025
Why does my Gravely ZT X 52 move with engine off and parking brake engaged?
- M
  Michael LarsenSep 6, 2025
  If your Gravely Lawn Mower moves with the engine off and the parking brake engaged, the parking brake likely needs adjustment. Adjust the parking brake lever accordingly. If the issue persists, the parking brake itself may be faulty, and you should contact your Gravely dealer.

Gravely ZT X 52 Specifications

General

Engine Manufacturer	Kawasaki
Horsepower	23 HP
Cutting Width	52 inches
Fuel Capacity	3.5 gallons
Deck Material	10-gauge steel
Spindle Material	Aluminum
Warranty	3 years
Cutting Height	1.5 - 4.5 inches

Summary

Safety Guidelines and Hazards

Safety Rules and Precautions

Essential safety rules, practices, and warnings for safe operation.

Safety Alerts and Signal Words

Explanation of safety alert symbols and signal words.

Hazard Identification

Descriptions of various hazards like amputation, tipping, and service.

Operator and Bystander Safety

Precautions for bystanders, hot parts, rotating parts, and fuel handling.

Operating Conditions and Slope Safety

Controls and Features Overview

Operator Station Controls

Operating the Unit

Emergency Stopping and Pre-Operation Checks

Procedures for emergency stopping and essential pre-operation checks.

Starting and Operating the Unit

Step-by-step guide for starting engine and operating the unit.

Maintenance Procedures

Maintenance Schedule Overview

Safety System and Brake Checks

How to check safety interlock system and parking brake function.

Engine Oil and Tire Pressure Checks

Blade, Belt, and Battery Service

Hydraulic System Maintenance

Adjustments and Calibration

Seat and Steering Lever Adjustment

Unit Tracking Adjustment

Adjusting unit to track straight via tire pressure and steering levers.

Mower Deck Leveling and Pitch

Troubleshooting Common Issues

Engine and Drive System Issues

Solutions for engine starting, running rough, and drive system problems.

PTO and Tracking Problems
