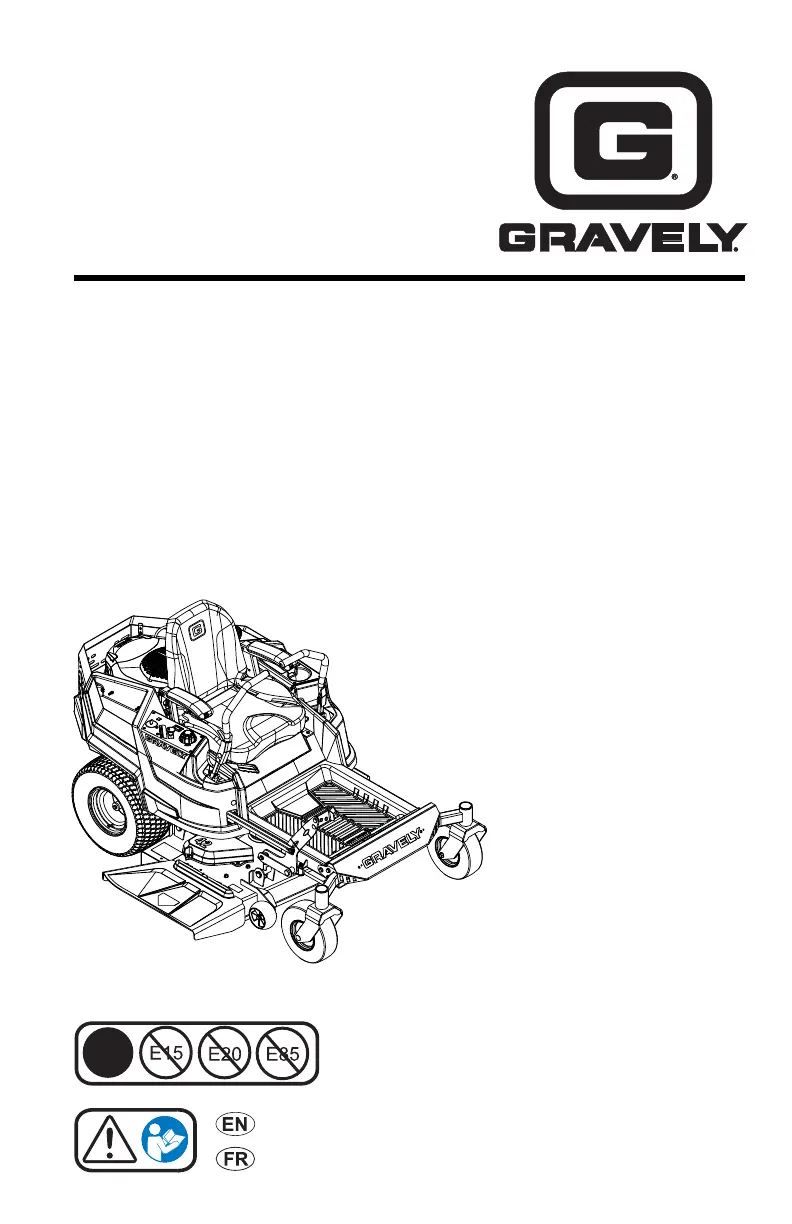

05102200C • 2/17
Printed in USA
ENGLISH
FRANÇAIS
E10
ZT X
Operator’s Manual
Manuel du Utilisateur
ZT XL
™
™
915202 – ZT XL 42
(SN 020000 +)
915204 – ZT XL 52
(SN 020000 +)
915206 – ZT XL 42
(SN 020000 +)
915216 – ZT XL 60
(SN 020000 +)
915218 – ZT XL 60
(SN 020000 +)
915230 – ZT X 52
(SN 020000 +)
915236 – ZT X 52 CARB
(SN 020000 +)
915238 – ZT XL 42 CARB
(SN 020000 +)
915240 – ZT XL 52 CARB
(SN 020000 +)
915242 – ZT XL 60 CARB
(SN 020000 +)
915172 – ZT X 42
(SN 020000 +)
915174 – ZT X 52
(SN 020000 +)
915176 – ZT X 42 CARB
(SN 020000 +)
915200 – ZT XL 52
(SN 020000 +)
Models

Table of Contents

Questions and Answers

  • R
    Regina BookerAug 20, 2025
    What to do if my Gravely ZT X 42 Lawn Mower engine does not start?
    • C
      cynthiadillonAug 20, 2025
      If your Gravely Lawn Mower engine won't start, several factors could be at play. First, ensure the Safety Interlock System is properly engaged and functioning; if it's faulty, it needs checking. A depleted fuel tank is a common culprit, so replenish it with fuel. Contaminated fuel can also prevent starting, necessitating a replacement with clean fuel. Check the battery; if it's discharged, charge it. Poor connections between the battery and its cables can hinder starting, so tighten or clean them. Inspect the spark plug wires for looseness and examine the spark plugs themselves, replacing them if faulty. If these steps don't resolve the issue, there may be an electrical or engine fault, in which case you should contact your Gravely dealer.
  • A
    Andrew TylerAug 22, 2025
    Why won't my Gravely ZT X 42 engine start?
    • C
      Calvin DickersonAug 22, 2025
      There are several reasons why your Gravely Lawn Mower engine might not be starting. It could be due to the Safety Interlock System not being engaged or being faulty. Another reason could be that the fuel tank is empty or the fuel supply is contaminated, so you should fill the fuel tank or replace the fuel with clean fuel. Also, the battery might be discharged, or the connection between the battery and battery cables may be poor, so ensure to charge the battery or tighten/clean the battery and battery cables. Finally, the spark plug wires could be loose or the spark plugs faulty, so connect the spark plug wires or replace the spark plugs.
  • M
    Michael HowellAug 25, 2025
    How to improve cutting quality of my Gravely Lawn Mower?
    • R
      reedmichaelAug 25, 2025
      If your Gravely Lawn Mower exhibits poor cutting quality, several factors may be responsible. Ensure the mower blades are level and the mower deck pitch is correct. Dull or faulty mower blades will also impact cutting performance, so sharpen or replace them as needed. Avoid mowing at excessively high speeds, as this can compromise the cut quality. Inspect the belt tension and condition; replace the deck drive belt if it's in poor condition. Also, avoid setting the cutting height too low, and for very tall grass, consider mowing twice.
  • M
    Morgan StevensAug 26, 2025
    What to do if my Gravely ZT X 42 Lawn Mower does not drive?
    • M
      mcamachoAug 26, 2025
      If your Gravely Lawn Mower does not drive, ensure that the transaxles are engaged by checking and engaging the levers. If the problem persists, the ground drive belt may be faulty, or the transaxles themselves might be faulty, requiring you to contact your Gravely dealer.
  • V
    Veronica Reed DDSAug 28, 2025
    What to do if Gravely ZT X 42 Lawn Mower has poor cutting quality?
    • R
      ronald14Aug 28, 2025
      If your Gravely Lawn Mower has poor cutting quality, consider the following: * Check if the mower blades are level or the mower deck pitch is incorrect. * See if the mower blades are dull or faulty—sharpen or replace them as needed. * Reduce your mowing speed. * Avoid setting the cutting height too low; for very tall grass, mow twice.
  • A
    Ashley GarciaAug 29, 2025
    What to do if Gravely ZT X 42 Lawn Mower does not drive?
    • M
      Manuel RosarioAug 30, 2025
      If your Gravely Lawn Mower isn't driving, the transaxles might be bypassed, so engage the levers.
  • T
    Teresa NortonAug 31, 2025
    Why is my Gravely ZT X 42 Lawn Mower engine running rough?
    • G
      George JonesAug 31, 2025
      If your Gravely Lawn Mower engine is running rough, first check the choke control knob; if it's in the 'on' position (applicable to models 915204, 915206, 915218, 915230, 915236, 915238, 915240, 915242), move it to the 'off' position. Another potential cause is a plugged air filter cartridge, which should be cleaned or replaced. If neither of these resolves the issue, the engine itself may be faulty, and you should contact your Gravely dealer.
  • L
    Lauren DominguezSep 2, 2025
    What to do if PTO malfunctions on my Gravely ZT X 42?
    • J
      Jacob JonesSep 2, 2025
      If the PTO (Power Take-Off) on your Gravely Lawn Mower is malfunctioning, start by ensuring the operator presence switch is engaged by sitting on the operator seat. If the issue persists, the operator presence switch may be faulty, and you should contact your Gravely dealer. Also, inspect the deck drive belt for any faults and replace it if necessary. If the problem continues, the PTO switch, wiring, connectors, or clutch may be faulty, requiring you to contact your Gravely dealer.
  • T
    torresjeremySep 4, 2025
    Why does my Gravely Lawn Mower engine overheat?
    • X
      xrobinsonSep 4, 2025
      If your Gravely Lawn Mower engine overheats, start by checking the engine oil level and adding oil if it is low. Also, inspect the cooling fins for any blockages and clean the engine if necessary. If the issue persists, the engine itself may be faulty, and you should contact your Gravely dealer.
  • E
    Elijah CookSep 6, 2025
    Why does my Gravely ZT X 42 move with engine off and parking brake engaged?
    • L
      Laura RogersSep 6, 2025
      If your Gravely Lawn Mower moves with the engine off and the parking brake engaged, the parking brake likely needs adjustment. Adjust the parking brake lever accordingly. If the issue persists, the parking brake itself may be faulty, and you should contact your Gravely dealer.

Summary

Safety Information

Safety Alerts and Signals

Understand safety symbols and signal words for hazard awareness.

Safety Decals

Location and explanation of safety decals on the unit.

Hazard Warnings

Details specific hazards like amputation, discharge, and tipping.

Operator Safety Rules

Guidelines for safe operation, operator age, and personal protection.

Controls and Features

Operation

Before Operating Unit

Pre-operation checks and preparation steps.

Starting and Operating the Engine

Procedures for starting and running the unit.

Mowing and Unit Handling

Maintenance

Maintenance Schedule

Routine Checks

Procedures for checking oil, brakes, and interlocks.

Component Servicing

Detailed steps for servicing blades, battery, belts, hydraulics.

Adjustments

Mower Deck Adjustment

Troubleshooting

Common Troubleshooting Issues

Addresses engine, drive, and PTO problems.

Cutting Quality Problems

Storage

Warranty Information

Limited Warranty Details

Gravely ZT X 42 Specifications

General IconGeneral
Engine BrandKawasaki
Cutting Width42 inches
Transmission TypeHydrostatic
Deck MaterialSteel
Number of Blades2
Cutting Height Range1.5 - 4.5 inches
TransmissionHydro-Gear EZT
Spindle MaterialAluminum
Ground Speed Forward7 mph
Ground Speed Reverse3 mph
Warranty3 years
Fuel Capacity2.8 gallons
Overall Width54 in
Turning RadiusZero
