GB - 14
ADJUSTING NEUTRAL
Adjust neutral on hydraulic pump if tractor "creeps" when
direction control pedal is not depressed.
1. Shut off engine and remove key.
2. Jack or hoist one of the drive wheels off the ground.
3. Start the engine. Do not engage parking brake.
4. Loosen adjusting bolt (Figure 7).
5. To correct forward creep, turn neutral bracket
clockwise.
To correct backward creep, turn neutral bracket
counterclockwise.
6. Retighten the adjusting bolt.
7. Ensure neutral switch sits in notch on plate. If it
does not, loosen plate bolt and rotate plate until
neutral switch sits in notch.
NOTE: This adjustment will affect the direction control
pedal angle. See Adjusting Direction Control Pedal on
page 14 to adjust angle.
ADJUSTING DIRECTION CONTROL PEDAL
1. Remove jam nut from stop bolt and remove stop
bolt from frame (Figure 8).
2. Remove bolt and nut connecting rod end to
direction control pedal.
3. Turn rod end farther onto rod to angle pedal back.
Turn rod end farther off of rod to angle pedal
forward.
4. Check that pedal is in a comfortable position. Adjust
again if necessary.
5. Replace bolt and nut removed in step 2.
6. Reinstall stop bolt and turn adjustment nut until
pedal hits bolt when fully depressed forward.
7. Reinstall jam nut on stop bolt and tighten.
WARNING: The following adjustment requires
engine running and guards removed. Use
extreme caution when performing this
adjustment.

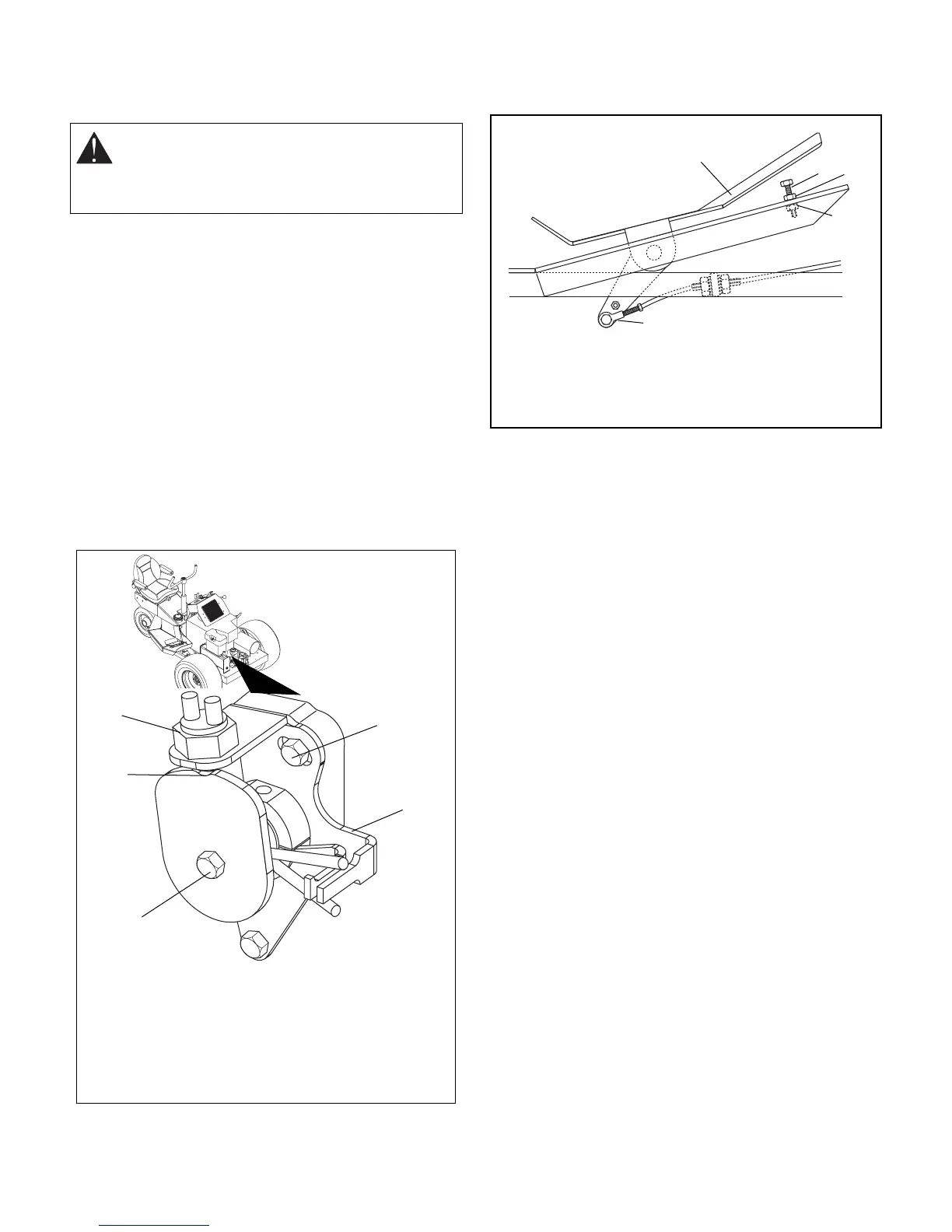

Figure 7
1. Adjusting Bolt
2. Neutral Bracket
3. Plate Bolt
4. Notch
5. Neutral Switch
1
3
4
5
2
OF3350
1. Control Pedal
2. Stop Bolt
3. Adjustment Nut
4. Jam Nut
5. Rod End
Figure 8
OF3360
1
2
3
4
5
