Gravely 990022 - Controls and Features

GB - 8
Check Safety Interlock System
See Safety Interlock System on page 9.
Check Function of All Controls
Ensure unit runs and performs properly. Refer to
Operation .
1. Parking Brake Lever
2. Throttle Lever
3. Choke Control
4. Oil Pressure Warning Light
5. Hourmeter
6. Deck Lift Lever
7. Cut Height Lever
8. Ignition Switch
9. PTO Switch
10. Handlebar
11. Hydraulic Oil Cooler
12. Muffler
13. Hydraulic Pump
14. Transmission Bypass Valve
15. Hydraulic Reservoir Fill
16. Battery
17. Direction Control Pedal
18. Fuel Tank Cap
19. Seat Suspension Adjustment Knob
20. Seat Adjustment Lever
WARNING: Failure of safety interlock and
improper operation could result in death or
serious injury.
WARNING: Failure of controls could result in
death or serious injury.
CONTROLS AND FEATURES

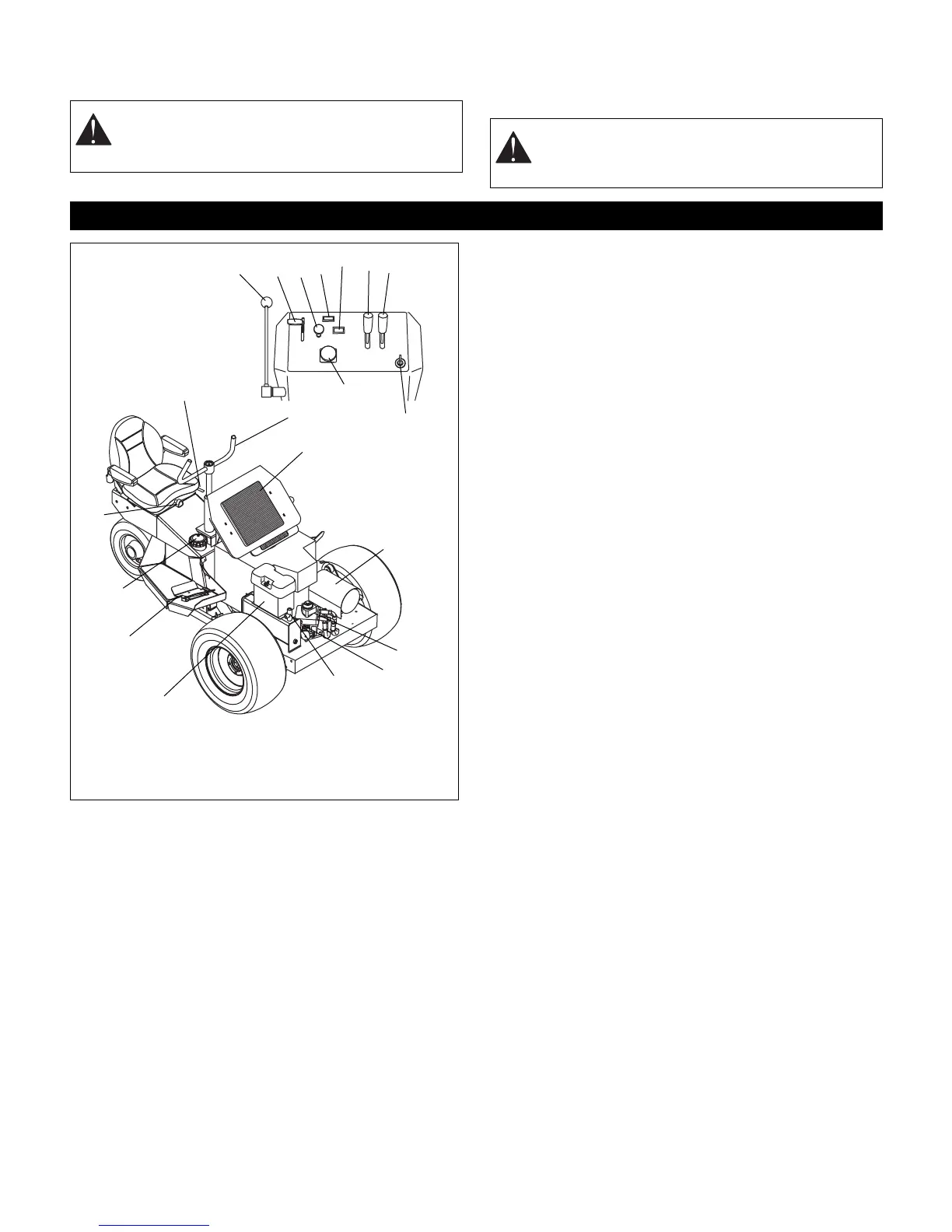

Figure 3
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
10
