EN - 12

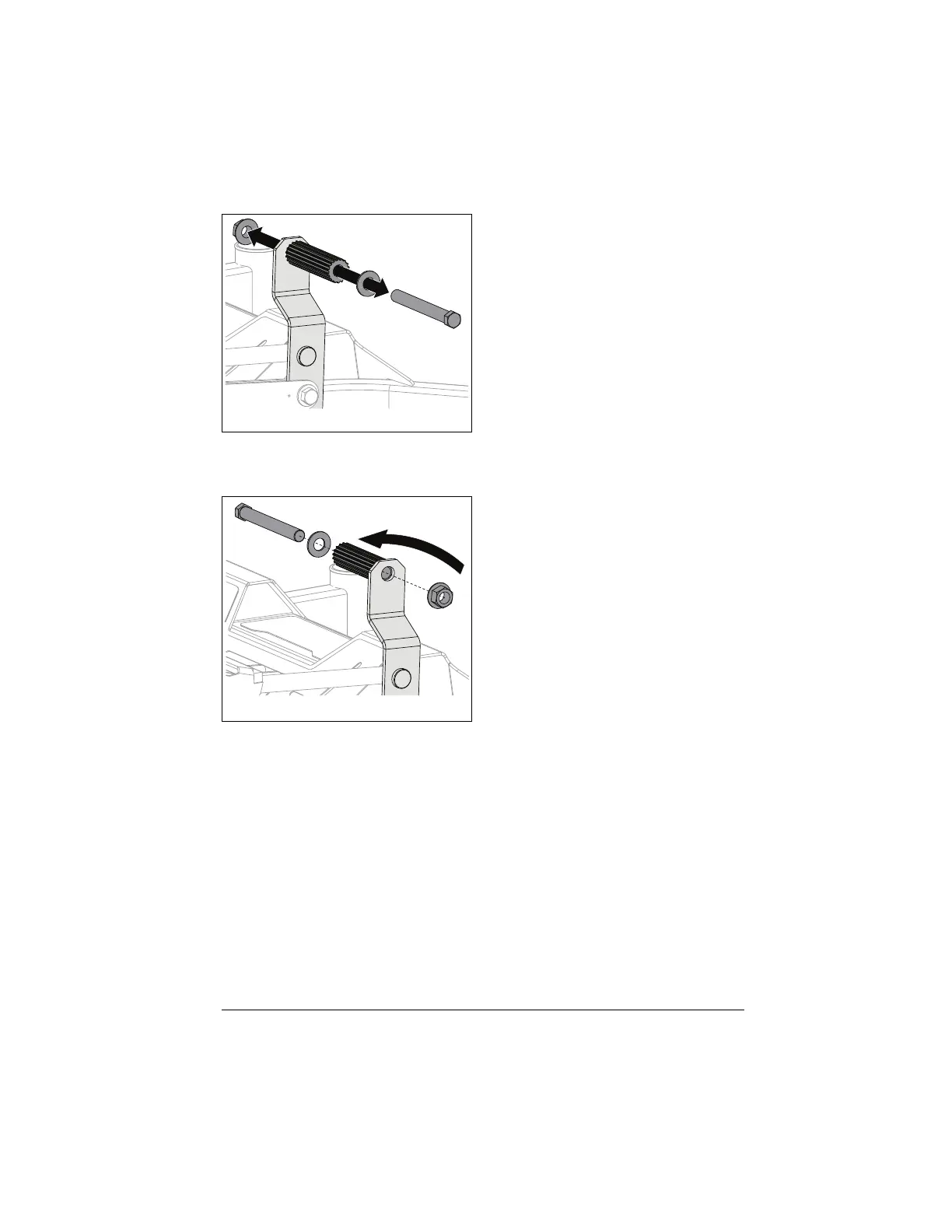

10. Remove hardware securing deck lift
pedal to unit and remove pedal. Retain for
reinstallation. See Figure 11.
11. Rotate pedal as shown in Figure 12 and
secure to unit with hardware removed in
step 10. See Figure 12.
12. Push transaxle bypass levers in to
engage transaxles.
13. Adjust steering levers. See Adjust
Steering Levers on page 25.
