Gravely Promaster 200 - General Maintenance and Adjustments

4 - 15
4.1 CONTROLS AND FEATURES
SECTION 4 - GENERAL MAINTENANCE & ADJUSTMENTS
1. Fuel Tank
2. Hydraulic Oil Tank
3. Steering T-Bar Control Levers
4. Ammeter
5. Choke (003,004,007,008,009,301,302)
6. Ignition/Keyswitch
7. Choke & Throttle (005,006,010,011)
Throttle (003,004,007,008,009,301,302)
8. PTO Switch
9. Deck Height Indicator (On Units With
Hydraulic Assist)
10. Parking Brake Lever ( On 200 Series)
11. Mower Lift Switch
12. Fuel Shut-Off
13. Oil Light

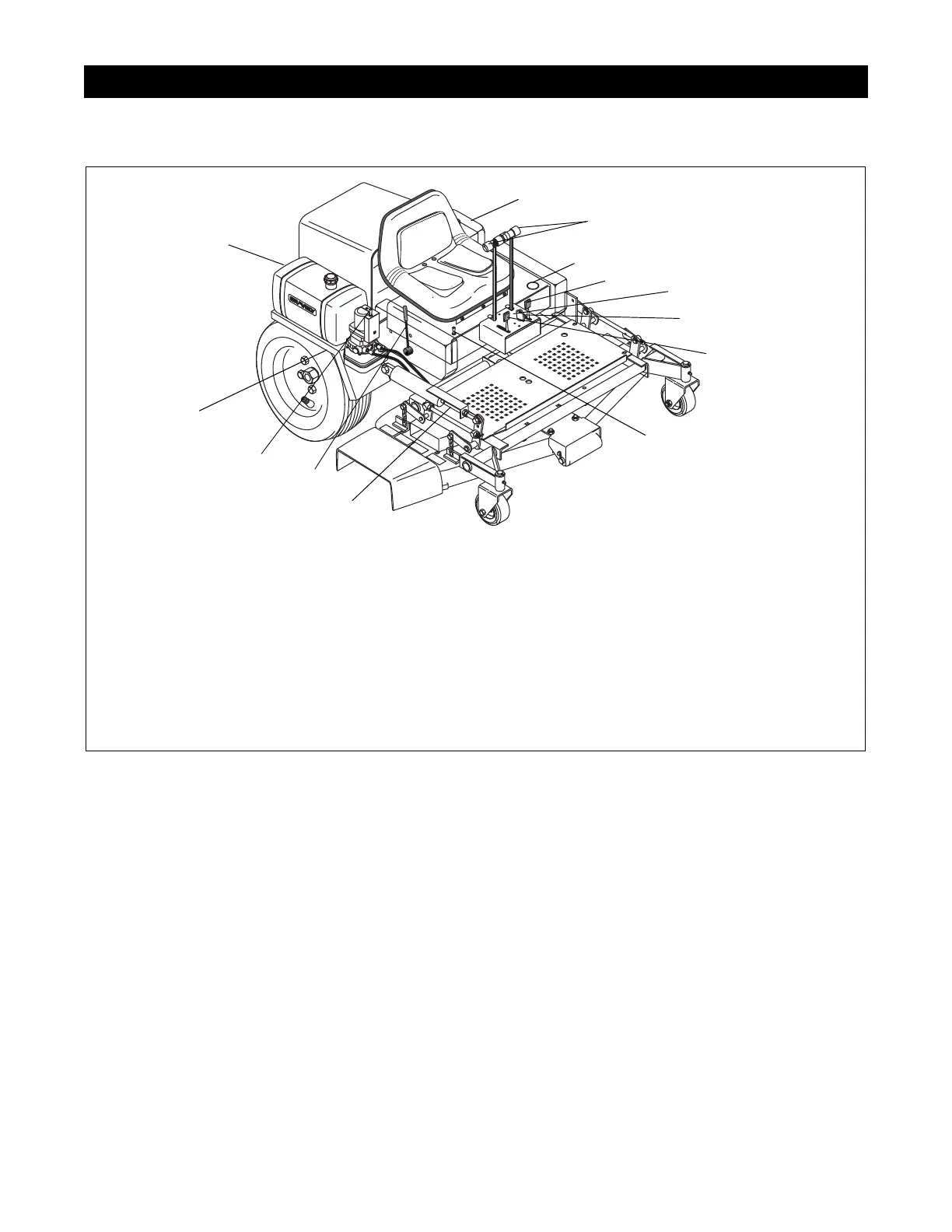

Figure 2
1
2
3
4
5
6
7
8
9
10
11
12
13
