Gravely Promaster 266 - Controls and Features

GB - 12
1. Hood
2. Parking Brake Lever
3. Steering Levers
4. Mower Lift Lever (992150, 154, 156,
159, 160, 163, 164, 166, 167, 168, 170)
5. Seat Adjustment Lever
6. Seat Suspension Adjustment Knob
7. Fuel Shut-Off Valve
8. Axle Locks
9. Tie-Down Lugs
10. Mower Lift Pedal (992152, 161, 162,
165, 175, 176)
11. Height of Cut Indicator
12. Cylinder Stops (992150, 154, 156, 159,
160, 163, 164, 166, 167, 168, 170)
13. Anti-Scalp Rollers
14. Cylinder Stop Storage Post (992150,
154, 156, 159, 160, 163, 164, 166, 167,
168, 170)
15. Foot Board Latch
16. Mower Deck with Chute Deflector
17. Belt Cover
18. Fuel Tanks
19. PTO (Power Take-Off) Switch
20. Glow Plug Light (992156, 160)
21. Ignition Switch
22. Coolant Temperature Gauge (992156,
160)
23. Hour Meter
24. Oil Pressure Light
25. Charging System Light (992156, 160)
26. Throttle Lever
27. Fuel/Water Separator Light (992156,
160)
28. Oil Pressure / Coolant Temperature
Light (992152, 159, 176)
29. Oil Pressure Light (992150, 154, 161,
162, 163, 164, 165, 166, 167, 168, 170,
175)
30. Choke Control (992150, 152, 154, 159,
161, 162, 163, 164, 165, 166, 167, 168,
170, 175, 176)

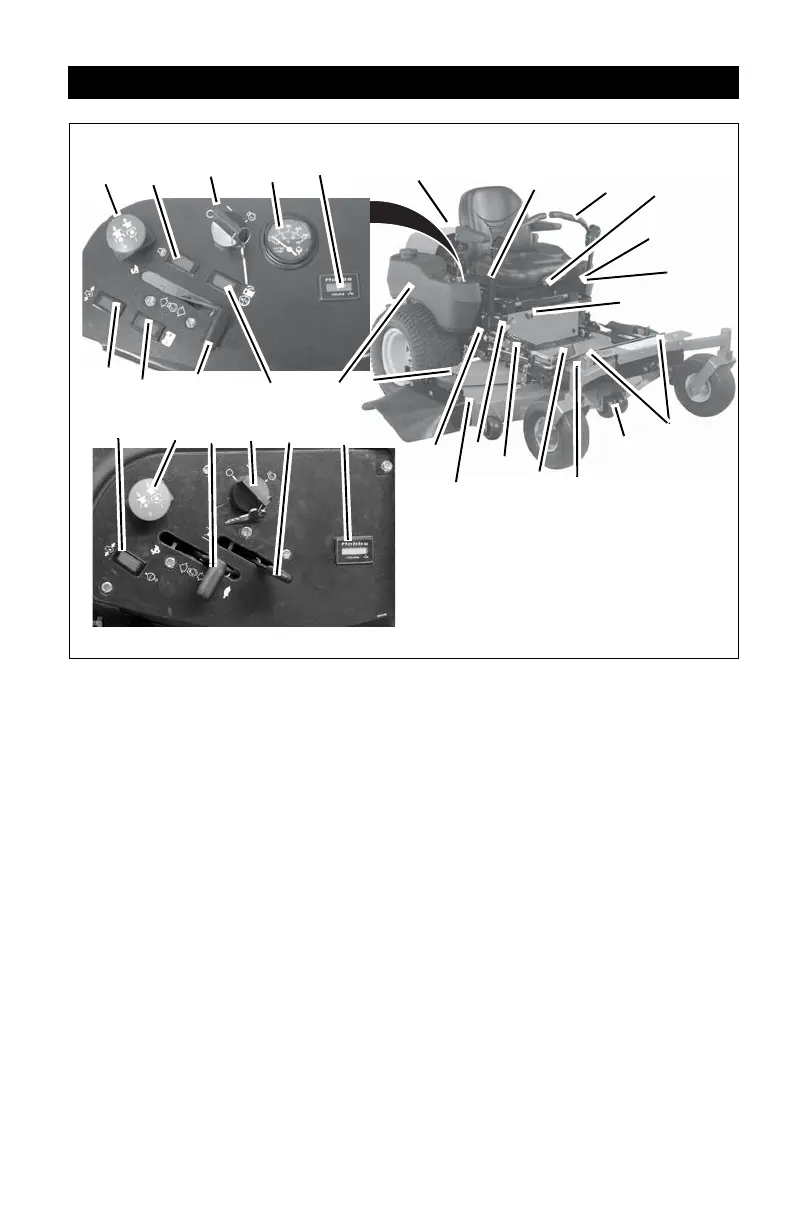

CONTROLS AND FEATURES
Figure 5
OF3223
1
18
3
4
5
6
7
2
8
9
13
16
17
15
19
21
24
22
26
Dash Panel for Models 992156, 160
Dash Panel for Models 992150, 152, 154,
159, 161, 162, 163, 164, 165, 166, 167,
168, 170, 175, 176
19
21
26
20
27
30
11
23
23
28 or 29
12, 14
10
25
