GB - 19
Install (Figure 9)
1. Slide mower deck under unit.
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Connect drag link to front deck bracket.
3. Connect front and rear trunnions to lift
arms.
4. Connect the PTO actuator cable to the
deck idler arm and cable anchor.
5. Install PTO belt on the engine drive
pulley (see REPLACING PTO BELT on
page 24).
NOTE: Make sure the cable is taut, but not
tight. The cable needs a slight amount of
slack for the pulley brake to work correctly.
6. Level and adjust pitch of mower deck
(see LEVELLING AND ADJUSTING
PITCH OF MOWER DECK on page 20).

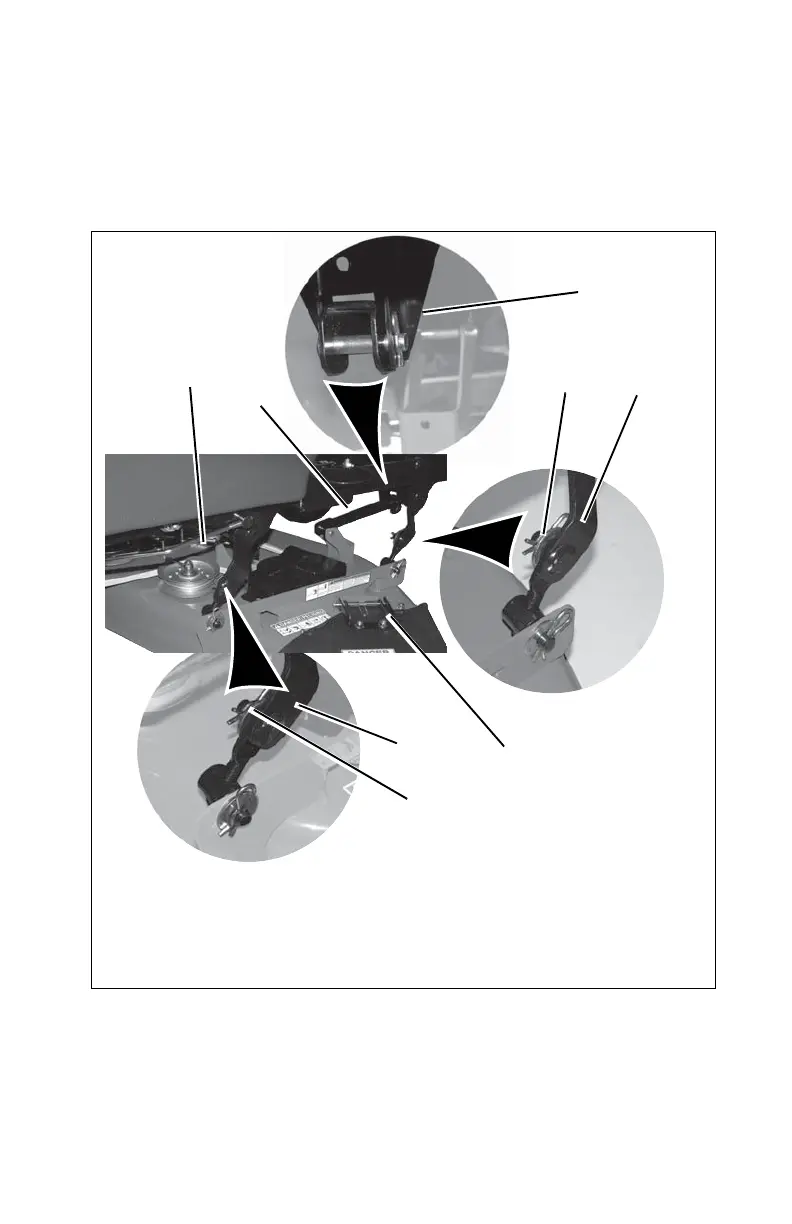

Figure 9
1. PTO Actuator Cable
2. Drag Link
3. Front Deck Bracket
4. Front Trunnion
5. Deck Lift Arm
6. Mower Deck
7. Rear Trunnion
5
4
3
1
2
5
7
6
