57

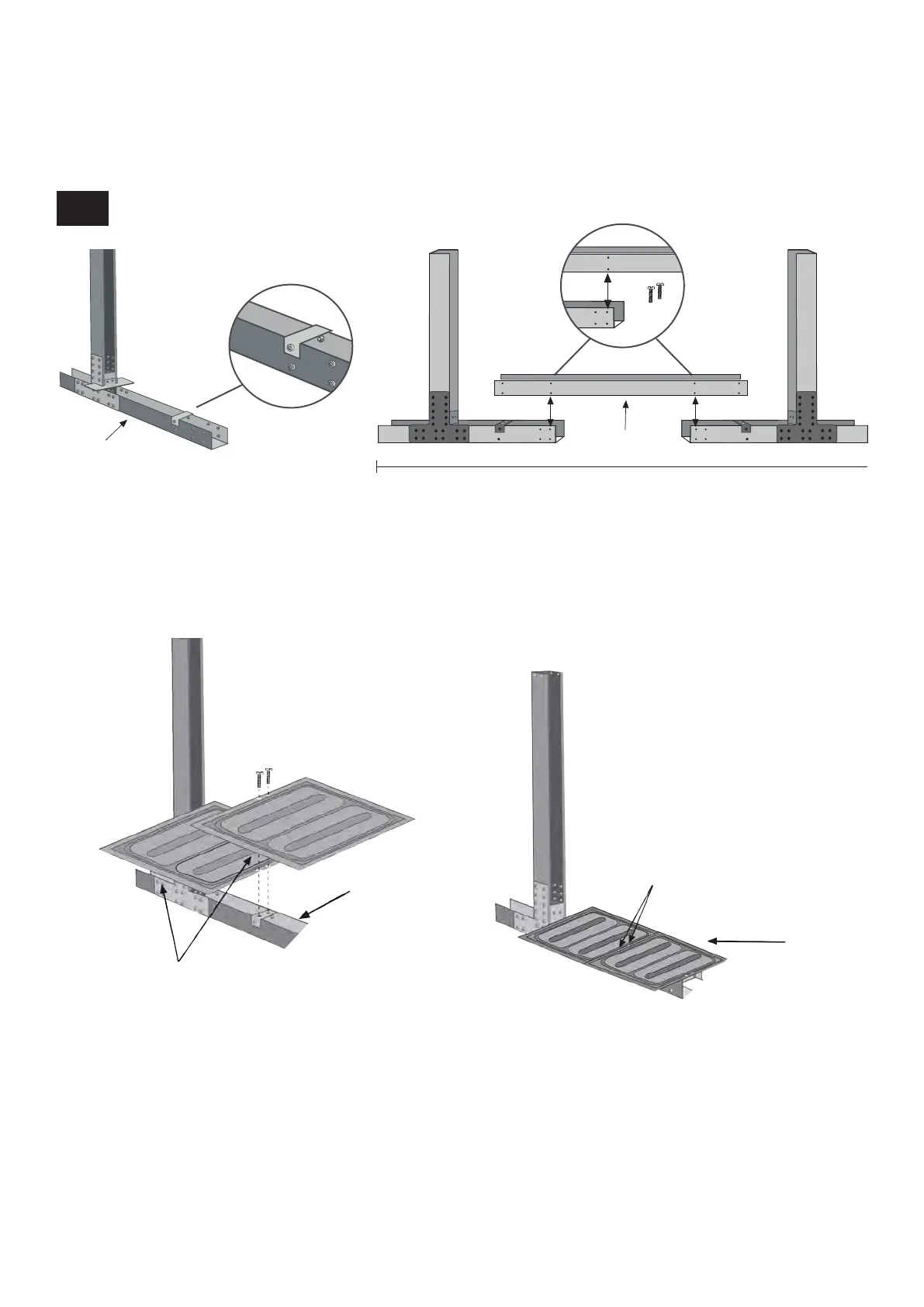

ASSEMBLY OF THE CROSSBASE
AND THE COLUMNS
• Take the crossbar Part type E and fix the PG crossbar and the TV bolts.
NOTE: there is only one crossbar between the PG crossbars (Part E).
Place the flap AP so that it coincides with its two holes with those of the PEU part (the closest to the part PV1135).
Then, place the other AP flap and fix them with two bolts TM640 (place the AP flaps after having introduced the support
into the previously prepared ditch).
x2A
PG
E
±3280
AP
AP x2
TM640
x2
CN
PG
TM640
x2
