ASSEMBLY OF THE
METALLIC STRIPS

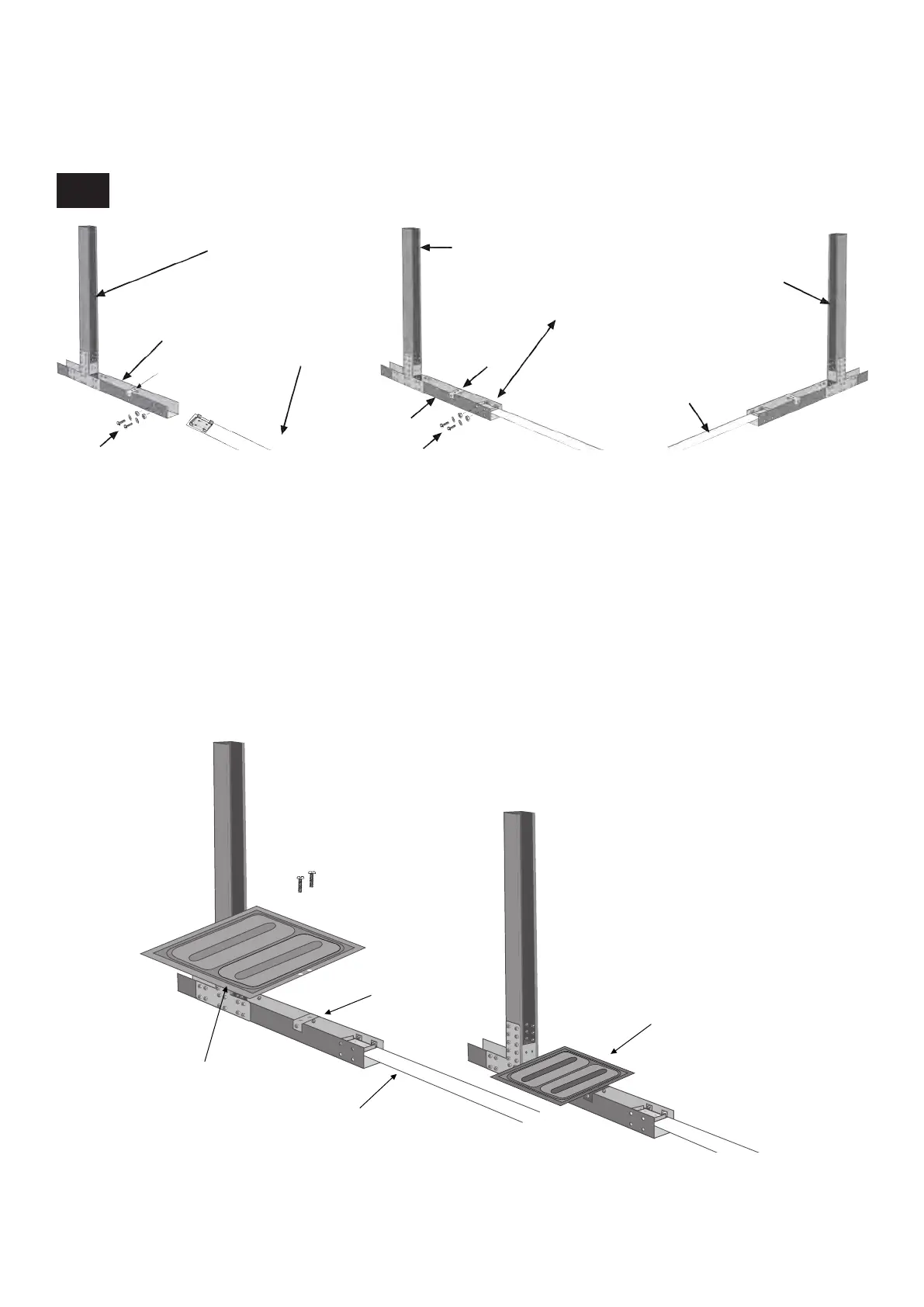

ASSEMBLY OF THE METALLIC STRAPS (CN) ON THE COLUMNS (C)
Bolt the part PEU with two upper holes in the centre of the PG part.
Bolt the end of each strap (CN) into the two upper holes of the end of the PG with the four TM& bolts and the two nuts
TM69, very tight. Repeat this operation with all the straps (CN) according to the pool model.
Lastly, bolt the other ends corresponding to the PG of the column C (PV1135).
Place the flap AP so that it coincides with its two holes with those of the PEU part.
PV1135
PG
PG
CN
CN
CN
PEU
PEU
TM69
TM69
x1B
PV1135
PV1135
IMPORTANT:
Install in the following order:
1- Metallic belt (x1A) lengthwise, so that the belt is supported on the bottom of trench.
2- Install the other 2 elements (x2B) as indicated by the drawing.
