Great Circle LCE01 - Page 15

13

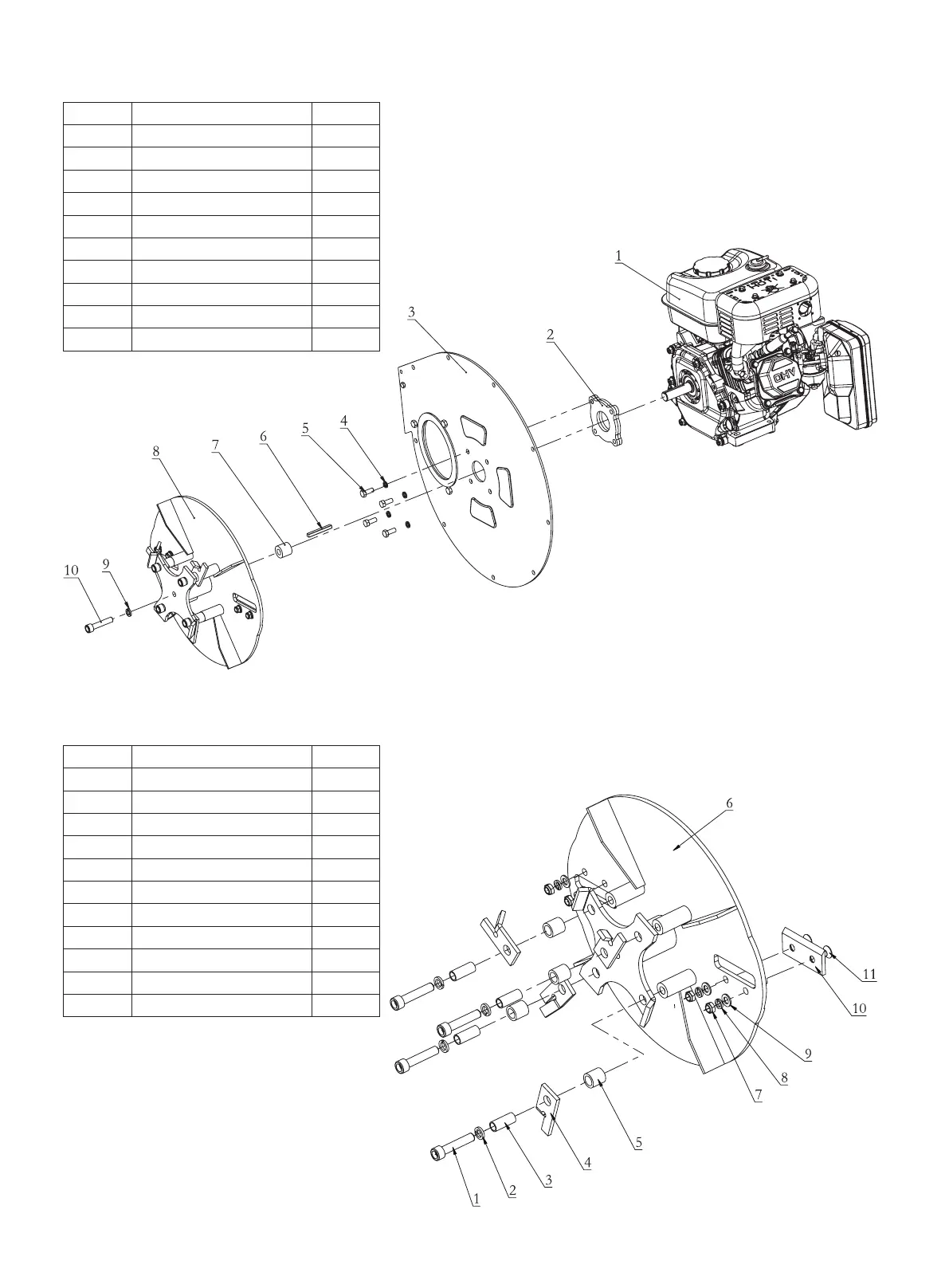

Parts Breakdown – Engine and Rotor Group
Parts Breakdown – Rotor Group
Part No.
1
2
3
4
5
6
7
8
9
10
Description
Engine
Flange
Engine plate
Spring washer 8
Hex bolt
Key parallel pin
Bearing spacer
Rotor assembly kit
Spring washer 10
Socket head cap screw
Q’ty
1
2
1
4
4
1
1
1
1
1
Part No.
1
2
3
4
5
6
7
8
9
10
11
Description
Socket head cap screw M10x50
Spring washer 10
Spacer
Y hammer
Bearing sleeve
Knives plate
Locknut M8
Spring washer 8
Washer 8
Knife
Screw
Q’ty
4
4
4
4
4
1
4
4
4
2
4
