Great Circle LCE01 - Parts Breakdown

12

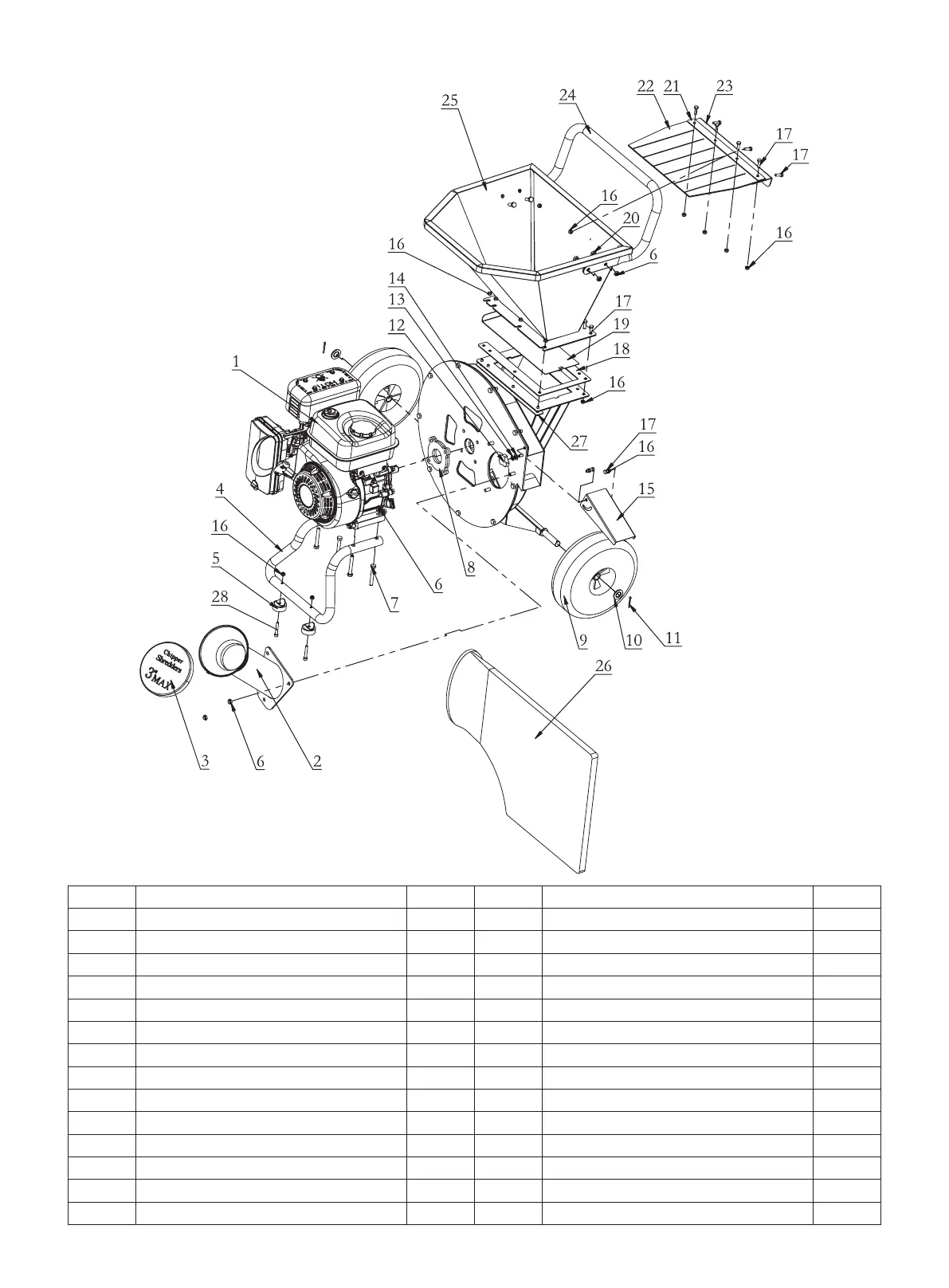

PARTS BREAKDOWN
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Description
Engine
Chipper cone
Cone cap
Support stand
Stand pad
Flange nut M8
Flange bolt M8x60
Flange
Wheel
Washer
Cotter pin
Handwheel
Spring washer
Washer
Q’ty
1
1
1
1
2
11
4
2
2
2
2
1
1
1
Part No.
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Description
Discharge guard
Flange nut M6
Flange bolt M6x20
Damper attachment
Damper
Flange bolt M8x20
Retainer hopper guard
Hopper Guard
Flange hopper guard
Handle
Hopper
Bag
Screw plate
Socket Cap Screw M6x40
Q’ty
1
17
17
1
1
4
1
1
1
1
1
1
1
2
