7

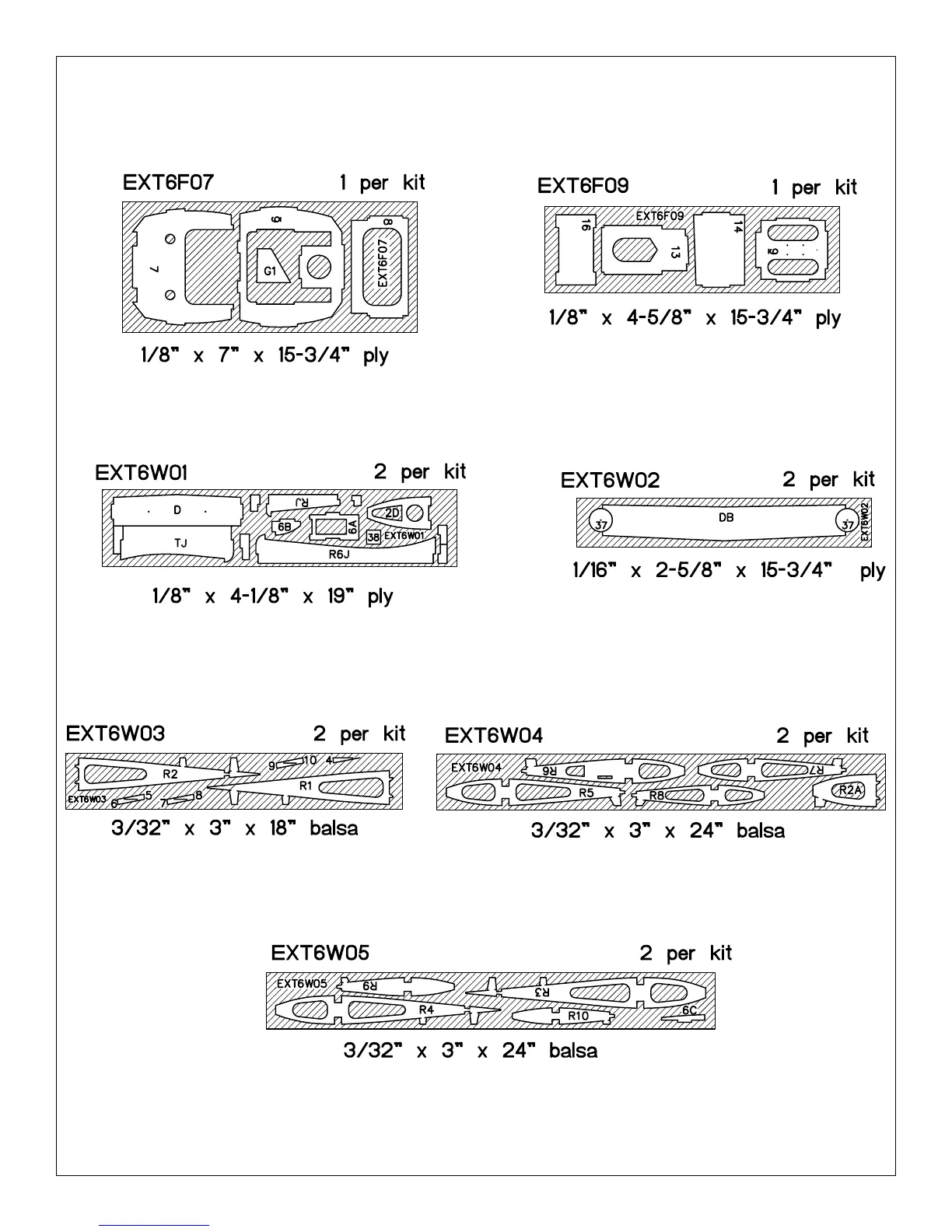

DIE-CUT PATTERNS

Table of Contents

Instruction Manual1
Table of Contents2
Safety Precautions2
Introduction2
Decisions You Must Make3
- Engine Selection3
- Exhaust System3
Precautions3
Preparations3
- Required Accessories3
- Building Supplies and Tools4
- Optional Tools or Accessories4
- Types of Wood4
- Common Abbreviations4
- Building Notes5
- Get Ready to Build5
- Inch/Metric Ruler & Conversions5
- Die-Cut Patterns6
Build the Tail Surfaces8
- Make the Stab Leading Edge Doubler8
- Make the Stab & Fin Sheeting8
- Build the Stab9
- Elevator Building Sequence10
- Fin Building Sequence10
- Rudder Building Sequence11
- Hinge the Tail Surfaces11
- Finish the Tail Surfaces11
Build the Wing12
- Build the Wing Spars12
- Build the Wing Panels12
- Sheet the Center Section14
- Servo Mount14
- Join the Wing Panels16
- Sheet the Top of the Wing18
- Build the Ailerons20
Build the Fuselage22
- Assemble the Fuselage Formers & Sides22
- Assemble the Fuselage23
- Mount the Wing to the Fuselage24
- Finish the Bottom of the Fuselage27
- Build the Front Fuselage Deck29
- Mount the Stabilizer to the Fuselage30
- Mount the Fin31
- Build the Turtle Deck31
- Mount the Engine & Tank Tray32
- Install the Servos & Make the Pushrods33
- Assemble the Wheel Pants36
- Assemble the Cowl38
Balance the Model Laterally39
Prepare the Model for Covering39
Cover the Model with Monokote Film40
- Covering Technique40
- Suggested Covering Sequence40
Painting40
Final Hookups & Checks41
- Join the Control Surfaces41
- Install the Hardware41
- Attach the Canopy42
- Set the Control Throws42
Balance Your Model43
Preflight43
- Charge the Batteries43
- Balance the Propeller44
- Find a Safe Place to Fly44
- Ground Check the Model44
- Range Check Your Radio44
- Engine Safety Precautions44
AMA Safety Code (Excerpt)45
- General45
- Radio Control45
Flying45
- Takeoff45
- Flying46
- Landing46
2-View Drawing47
Flight Log48
