INSTALLING YOUR FIREPLACE
Wall mounting bracket installation：
1. Open the box and take out the fireplace. The wall mounting bracket is attached to the back side of the fireplace.
Remove the screws holding it on at the bottom.
2. Choose a solid plain wall and put the bracket in the position where you want to install the fireplace. Mark holes with a
pen (6 for EF68/69PEN, 8 for GE70/72PEN) using the holes in the mounting bracket as a guide (Fig. 3)
3. If locating the fireplace on existing wall studs or solid wood walls, Screws can be inserted at this time and you can
proceed to step 6, otherwise continue the steps below for placing wall anchors.
4. Take away the bracket and then, using an 8mm drill bit, drill pilot holes in the wall. Put the plastic wall anchors into the
holes. (Fig. 4)
5. Insert the included long screws to secure the bracket to wall (Fig. 5)

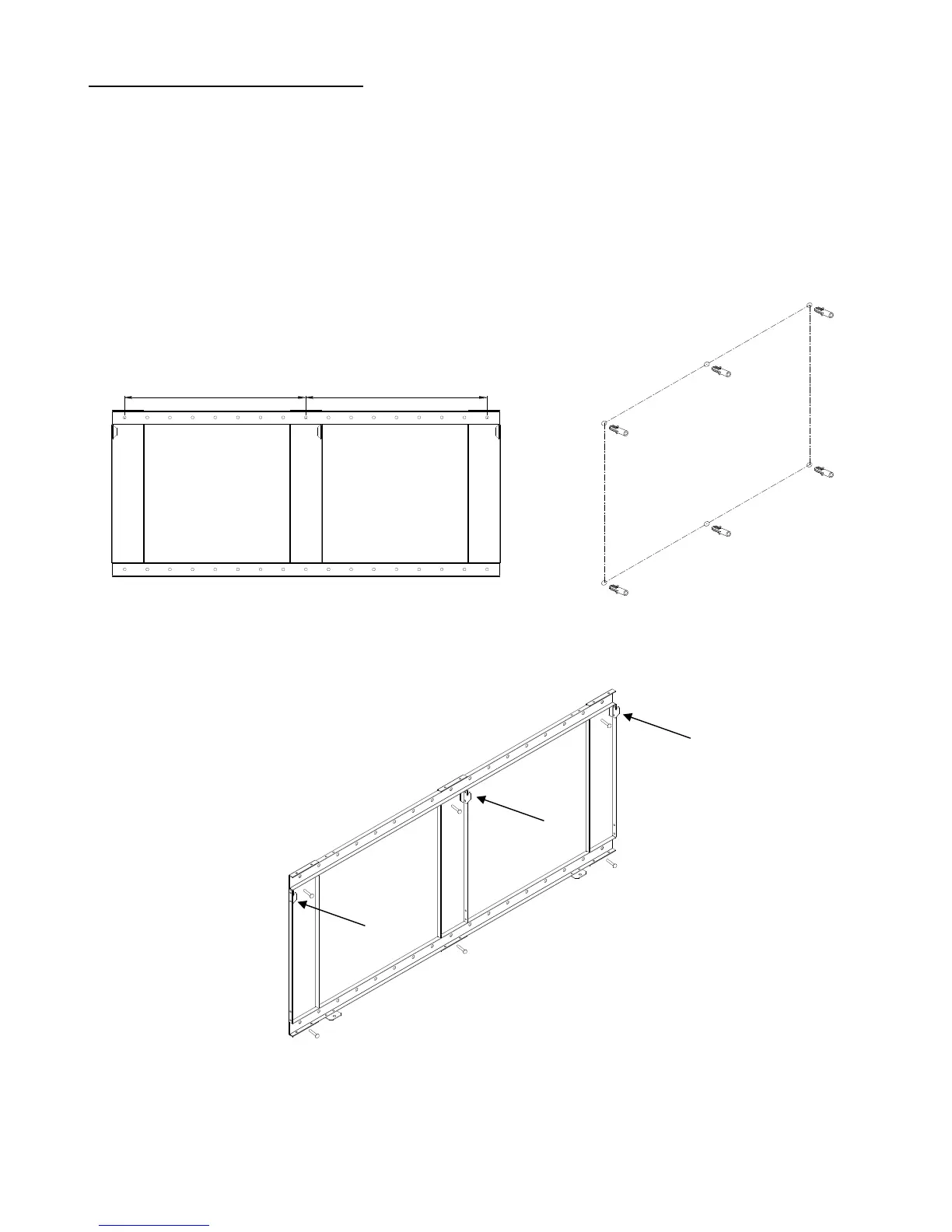

Fig. 3 Fig. 4
Fig. 5
IMPORTANT: Install in the
orientation shown with mounting
hooks at the TOP of bracket as
shown by arrows
To Next Page
