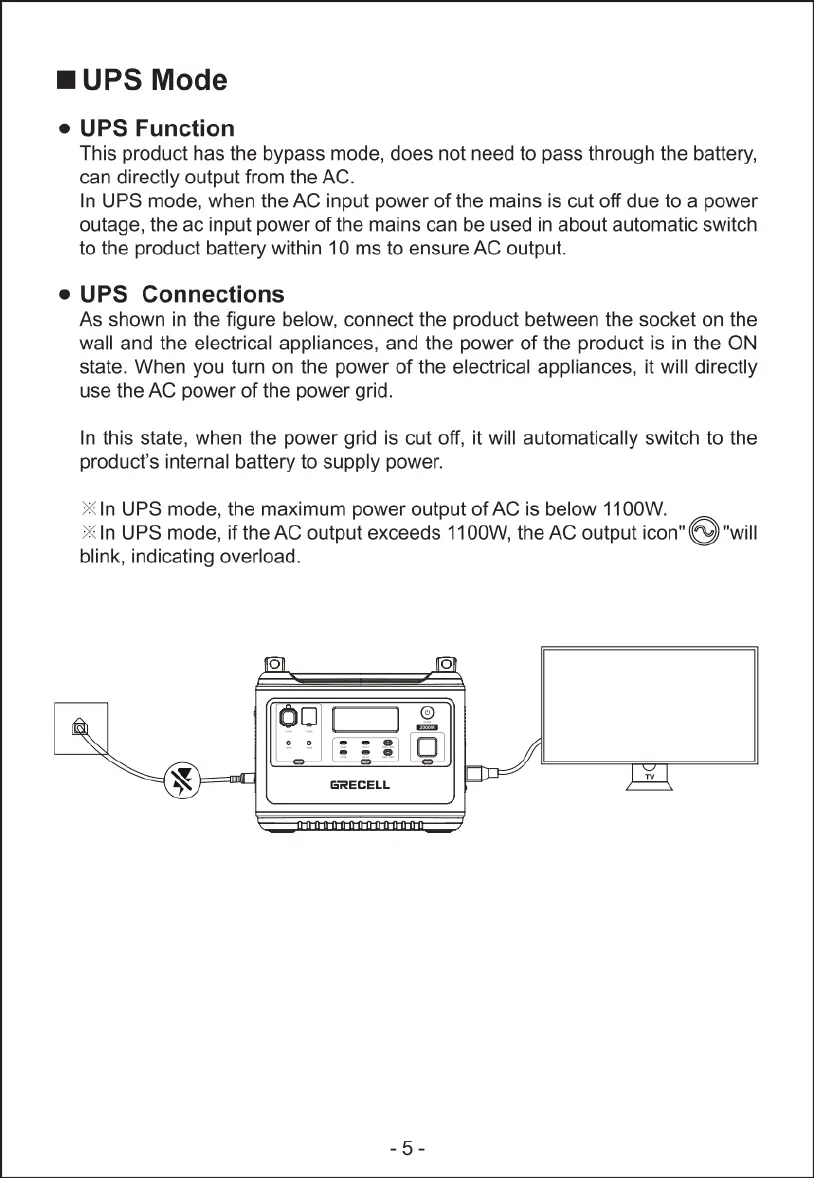

B UPS Mode
® UPS Function
This product has the bypass mode, does not need to pass through the battery,
can directly output from the AC.
In UPS mode, when the AC input power of the mains is cut off due to a power
outage, the ac input power of the mains can be used in about automatic switch
to the product battery within 10 ms to ensure AC output.
® UPS Connections
As shown in the figure below, connect the product between the socket on the
wall апа the electrical appliances, апа the power of е product is т the ОМ
state. When you turn оп the power of the electrical appliances, it will directly
use the AC power of the power grid.
In this state, when the power grid is cut off, it will automatically switch to the
product’s internal battery to supply power.
ЖИп UPS mode, the maximum power output of AC is below 1100W.
*In UPS mode, # the АС output exceeds 1100W, the АС output icon"@"will
blink, indicating overload.
