(6) Route the e-manage ultimate wire harness safely though the engine bay and use cable ties to secure the
harness and prevent it from moving. Place the A/C line grommet in its original location.
※
※
※
※
Use cable ties to secure the harness to the accelerator control cable secure areas. 〈Part №１８〉
(7) Adjust the dipswitches on the e-manage Ultimate unit. Secure the unit and plug in the harness
connectors.
Refer to the diagram below for dipswitch instructions.
It is important that you adjust these switches properly.
Engine damage may be caused if not set properly
Secure the e-manage unit in an area free from moisture, dust, sunlight, and direct heat from
the heater vents.
Please try to avoid placing the e-manage unit under the carpet or floor mats.

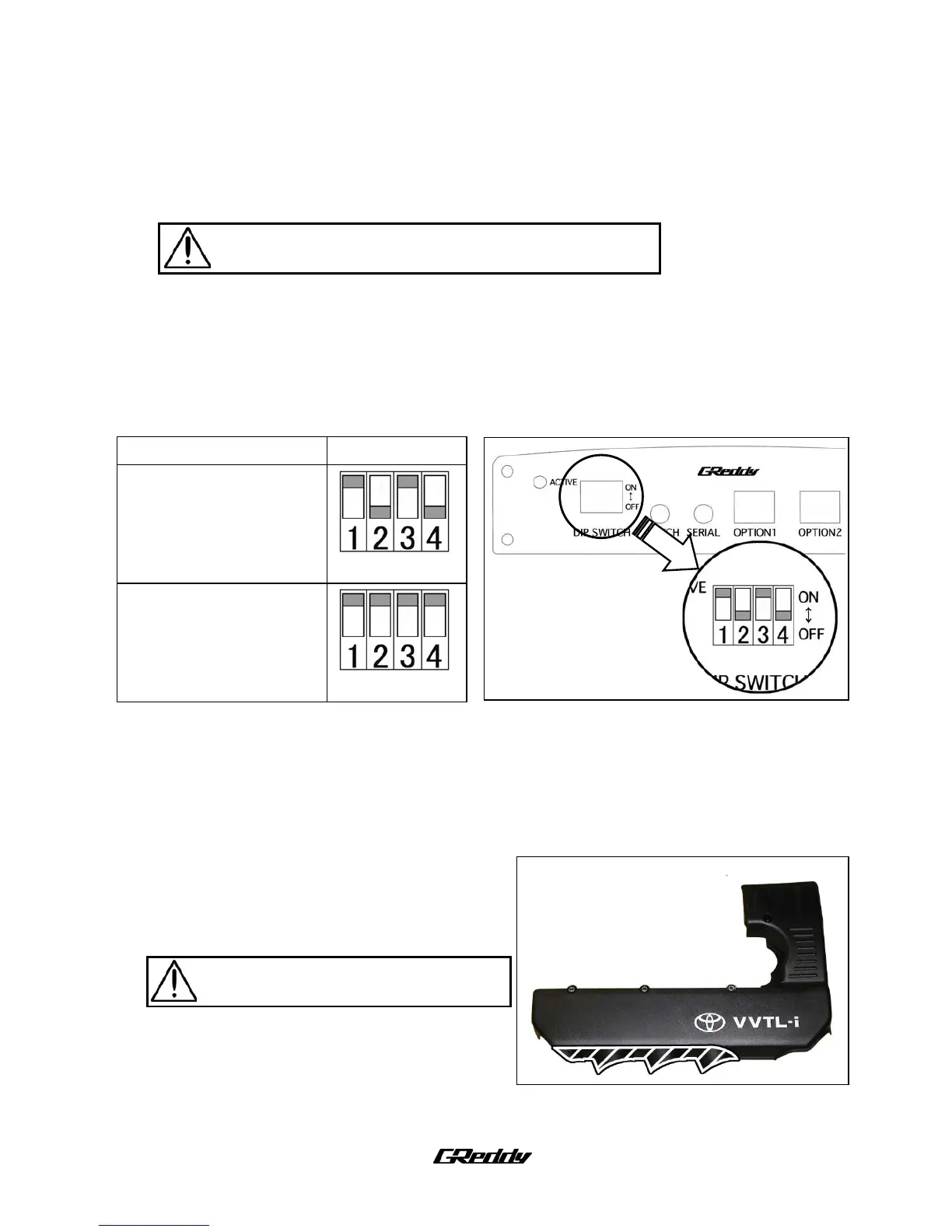

○ Front Panel Dip Switch Settings
Application Switch Setting
・Use with OE Air Cleaner Box
※１,３－ＯＮ
・Use with AIRINX Filter Kit
・Factory setting
※１,２,３,４－ＯＮ
３－14 OE Air Cleaner Installation
Install the air cleaner case, air cleaner hose No.1, engine bay ECM outlet duct, and upper radiator
support seal.
※ If installing AIRINX Air Filter Set, refer to AIRINX instruction manual.
３－15 OE Cylinder Head Cover Modification
Cut the highlighted portion of the cylinder head
cover No.2 in the picture on the right.
Re-use the OE bolts.
Please use safety glasses and a
mask to prevent injury.
