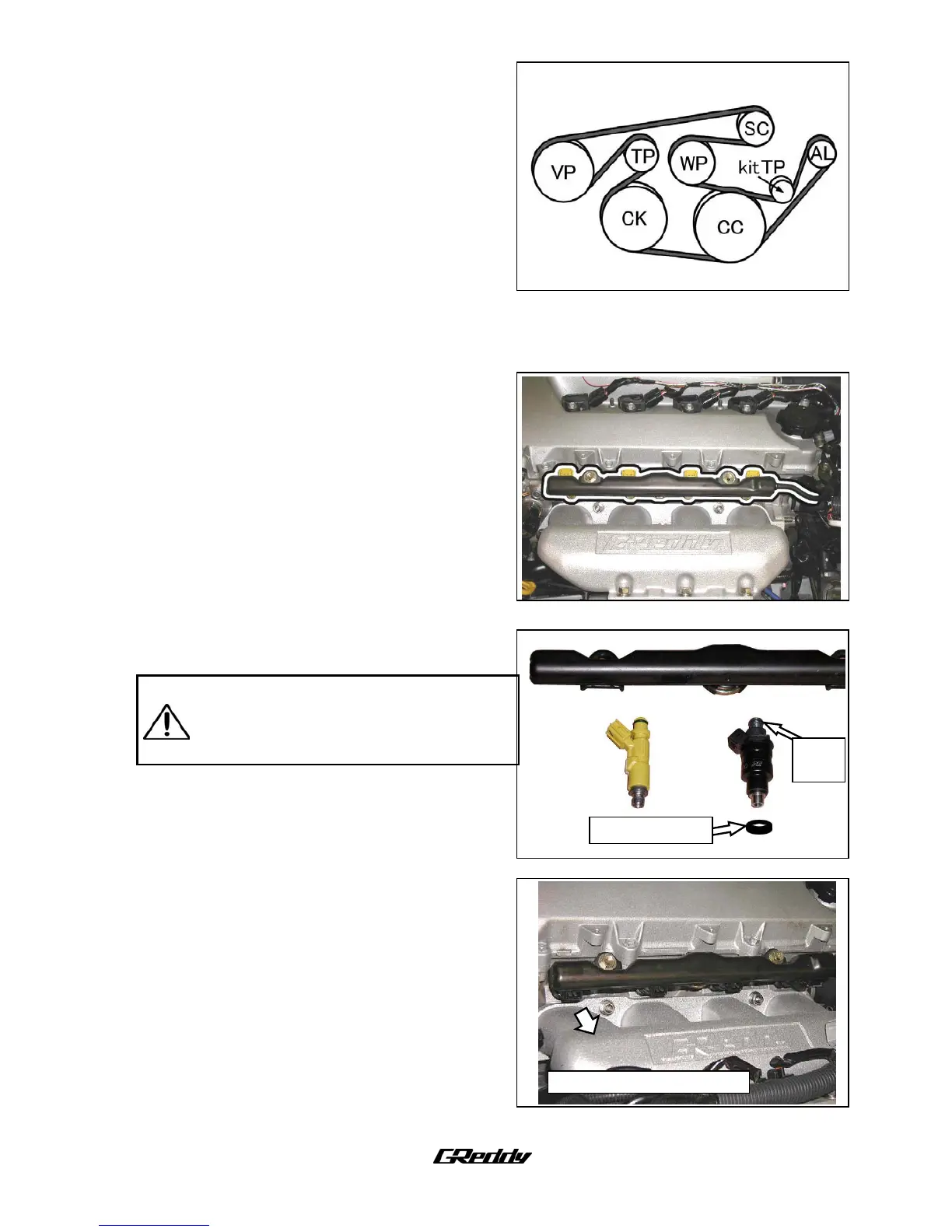

３－８ Kit V Ribbed Belt Installation.
Adjust the tensioner pulley toward the front of the
vehicle to adjust belt tension.
〈Part №５〉
ＶＰ ： Vane Pump Pulley
ＣＫ ： Crank Pulley
ＣＣ ： Cooler Compressor
ＷＰ ： Water Pump Pulley
ＡＬ ： Alternator Pulley
ＴＰ ： OE Tensioner Pulley
kit ＴＰ ： ＫＩＴ Tenstioner Pulley
ＳＣ ： Supercharger Pulley
３－９ Kit Injector Installation
(1) Remove the fuel delivery pipe and fuel injectors
(2) Replace OE injectors with the provided injectors and
install fuel delivery pipe back to original location.
Please check for fuels leaks after kit is
installed to prevent injury or damage from
fire.
※
※
※
Use the Kit O-ring to seal the top of the injector.
Lubricate O-ring with silicone grease.
Kit
O-ring
OE Insulator
Re-use OE bolts, spacer, and injectors insulators.
If the OE Insulator is damaged, please replace.
Injector connector direction
Install the injector connectors to face toward the
front of the vehicle.
〈Part №２１〉
―９―
