Cassette Type Fan Coil Unit
16

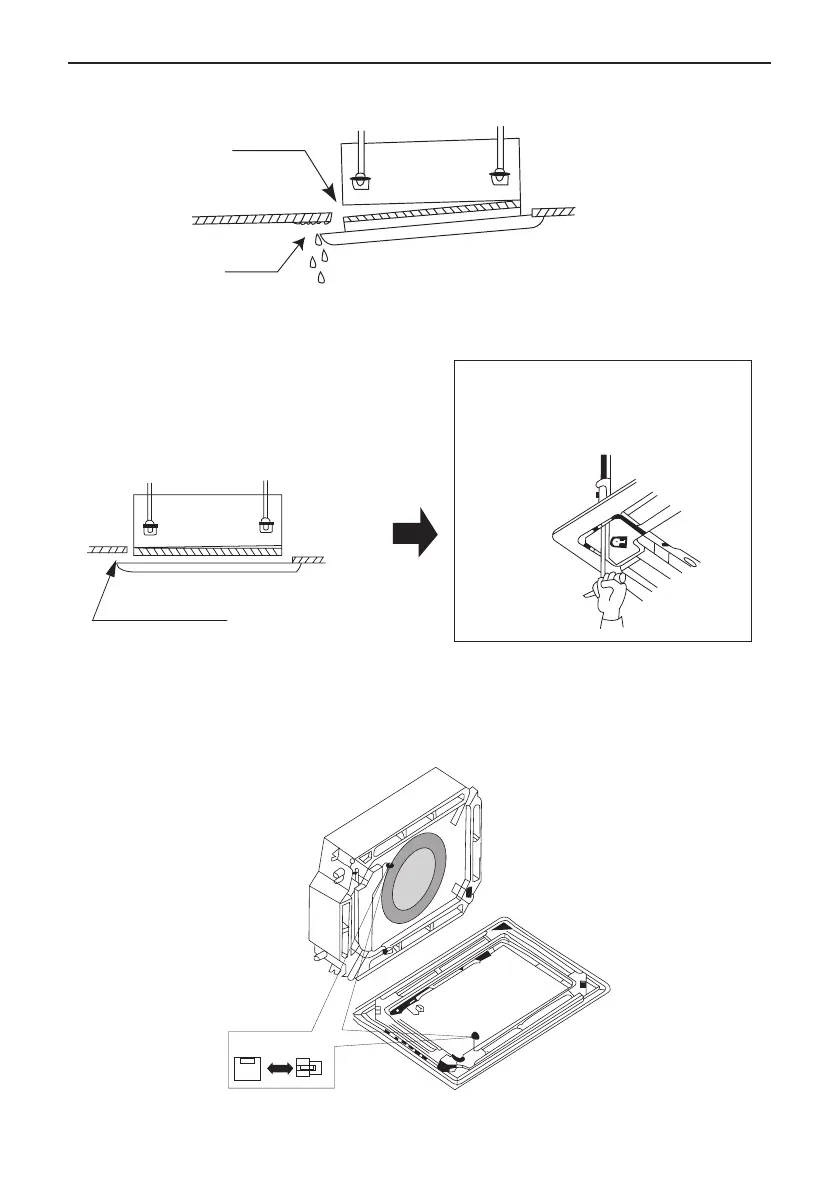

(1) Improper screwing of the screws may cause the troubles shown in Fig.29.
Air leak
Air leak from ceiling
Contamination dew condensation,dew dripping
Fig.29
(2) If gap is still left between the ceiling and the panel after screwing the screws, readjust height of
the indoor unit body. (Refer to Fig.30)
No gap is allowed
Adjustment of the indoor unit body from the holes in
the corner of the panel is possible if the indooor unit
is kept leveled and the drainage pipe piping etc
is unaffectecd.
Fig.30
After xing, be sure no gap left between the ceiling and the panel.
(3) Wiring of the decoration panel.
1) Connect the joints for displyer on the panel to the main boarded.
2) Connect the joints for swing ap motor lead wire installed on the panel. (Refer to Fig.31)
At panelAt body
Fig.31
