Cassette Type Fan Coil Unit
4
Receiver
Power & Run
(
red & white
)
Display
Timer & Sleep(yellow)
Auto Button

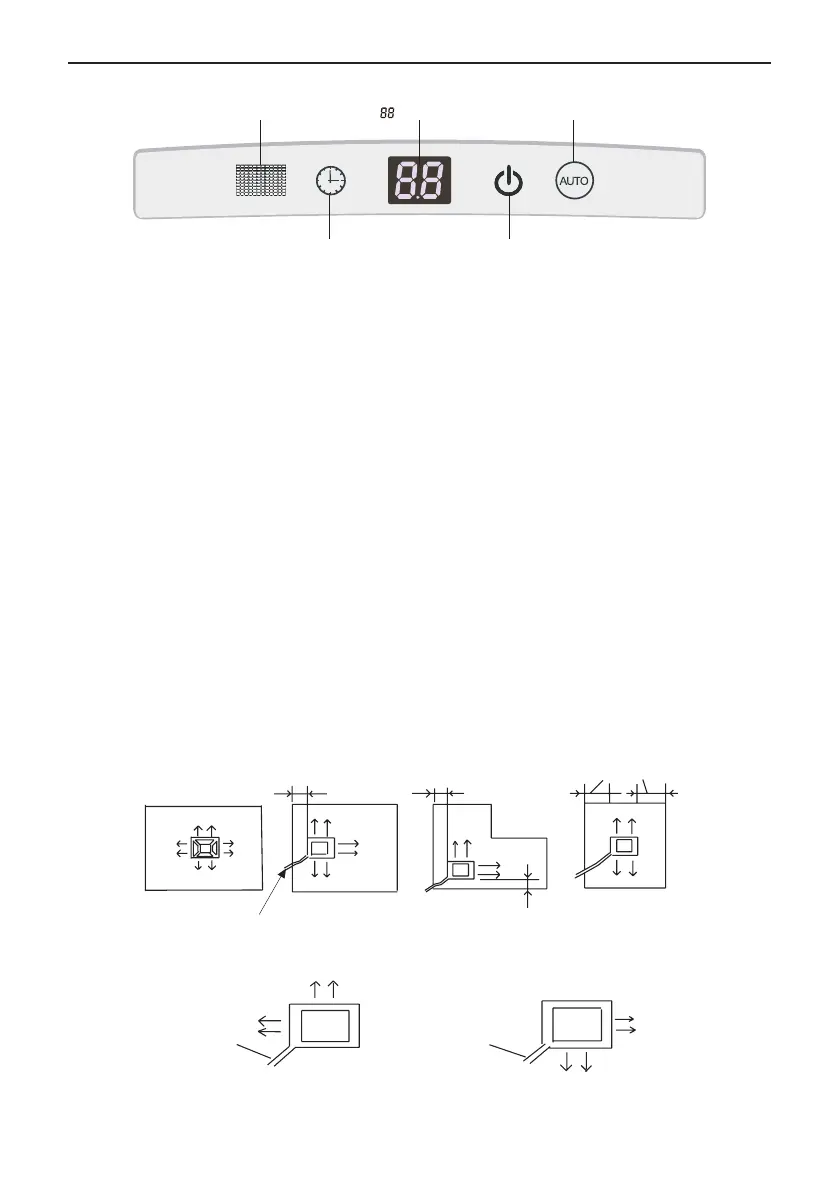

Fig. 2
4.1 Instructions of the front panel
(1) Timer & Sleep (yellow LED): it light when Timer or Sleep is on and goes out when Timer or
Sleep is off.
(2) Power(red LED): it light when power is on and goes out when power is off.
(3) Run (white LED): It light when the unit is on and goes out when the unit is off.
(4) AUTO button :use for emergency operation.
When the wireless remote control is lost or damaged, please use the AUTO button.At this time,
the unit will operated as follow:
(1) At operation: When the unit stop , pressed AUTO button over 5 seconds,the unit run.
(2) At stopping: When the unit is running, pressed AUTO button and overrun 5 seconds,the unit
stop.
(3) When the unit is running, pressed AUTO button less than 5 seconds. The unit select from
COOL, DRY, FAN, HEAT,COOL modes automatically.
5 Installation of the unit
5.1 Selection the mounting position
(1) Especially, the installation place is important for the unit because it is very difcult to move from
place after the rst installation.
(2) Decide the mounting position together with the customer as Fig.3
(3) The discharge direction can be selected as shown Fig.3.
( 4 directions
Piping position
(3 directions)
(2 directions
4’’(100mm) or more
4’’(100mm) or more 4’’(100mm) or more
39’’(1000mm) or more
Fig.3
Since 2 -way outlet as shown Fig.4 causes performance problems, do not set it.
Pipe
Pipe
Fig.4
