U-Match Series DC Inverter Service Manual
62

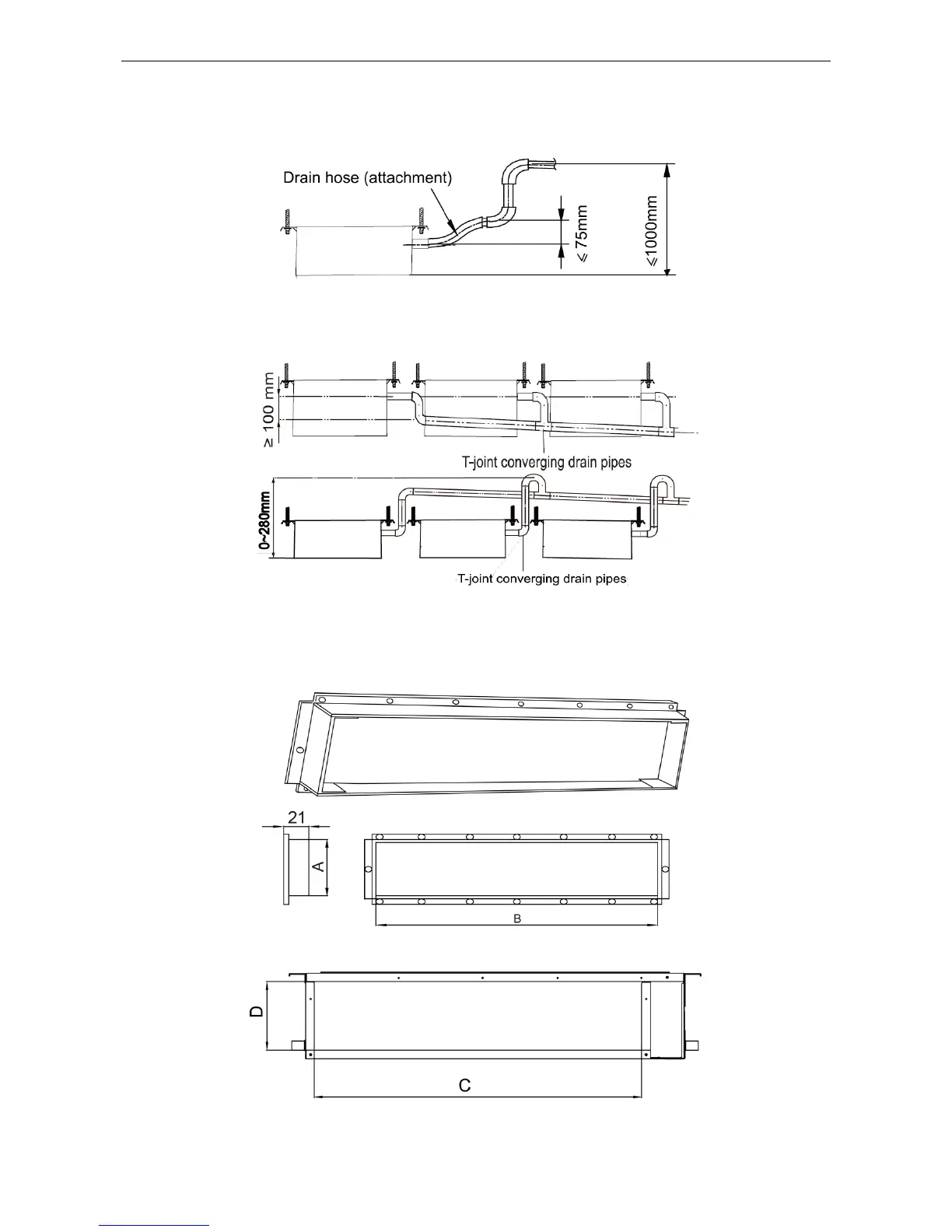

Figure 3-1-15
a) The vertical height of the drain hose should be 75mm or less so that it is unnecessary for
the drain port to withstand additional force.
Figure 3-1-16
b) When multiple drain hoses are used, their installation should be performed as shown in the
figure below.
Figure 3-1-17
1.1.7 Installation of air duct
Dimensions of the Supply Air Outlet/Return Air Inlet
Figure 3-1-18 Supply Air Outlet
Figure 3-1-19 Return Air Inlet
