Gree GKH42K3FI

U-Match Series DC Inverter Service Manual
90
 Single-phase units (36k~48k)
Duct Type Unit
Floor Ceilling
Casssete Type Unit
GUHD36NK3FO+GFH36K3FI+ GTH36K3FI+ GKH36K3FI
GUHD42NK3FO+GFH42K3FI+ GTH42K3FI+ GKH42K3FI
①. Power cord 3×4.0 mm
2
(H07RN-F)
②. Power cord 3×1.0 mm
2
(H05VV-F)
③. Communication Cords2×0.75 mm
2
(H05VV-F)
GUHD48NK3FO+GFH48K3FI+ GTH48K3FI+ GKH48K3FI
①. Power cord 3×6.0 mm
2
(H07RN-F)
②. Power cord 3×1.0 mm
2
(H05VV-F)
③. Communication Cords 2×0.75 mm
2
(H05VV-F)
 Three-phase units
Duct Type Unit
Floor Ceilling
Casssete Type Unit
GUHD36NM3FO+ GFH36K3FI+ GTH36K3FI+ GKH36K3FI
GUHD42NM3FO+ GFH42K3FI+ GTH42K3FI+ GKH42K3FI
GUHD48NM3FO+ GFH48K3FI+ GTH48K3FI+ GKH48K3FI
GUHD60NM3FO+ GFH60K3FI+ GTH60K3FI+ GKH60K3FI
①. Power cord 5×1.5 mm
2
(H07RN-F)
②. Power cord 3×1.0 mm
2
(H05VV-F)
③. Communication Cords 2×0.75 mm
2
(H05VV-F)

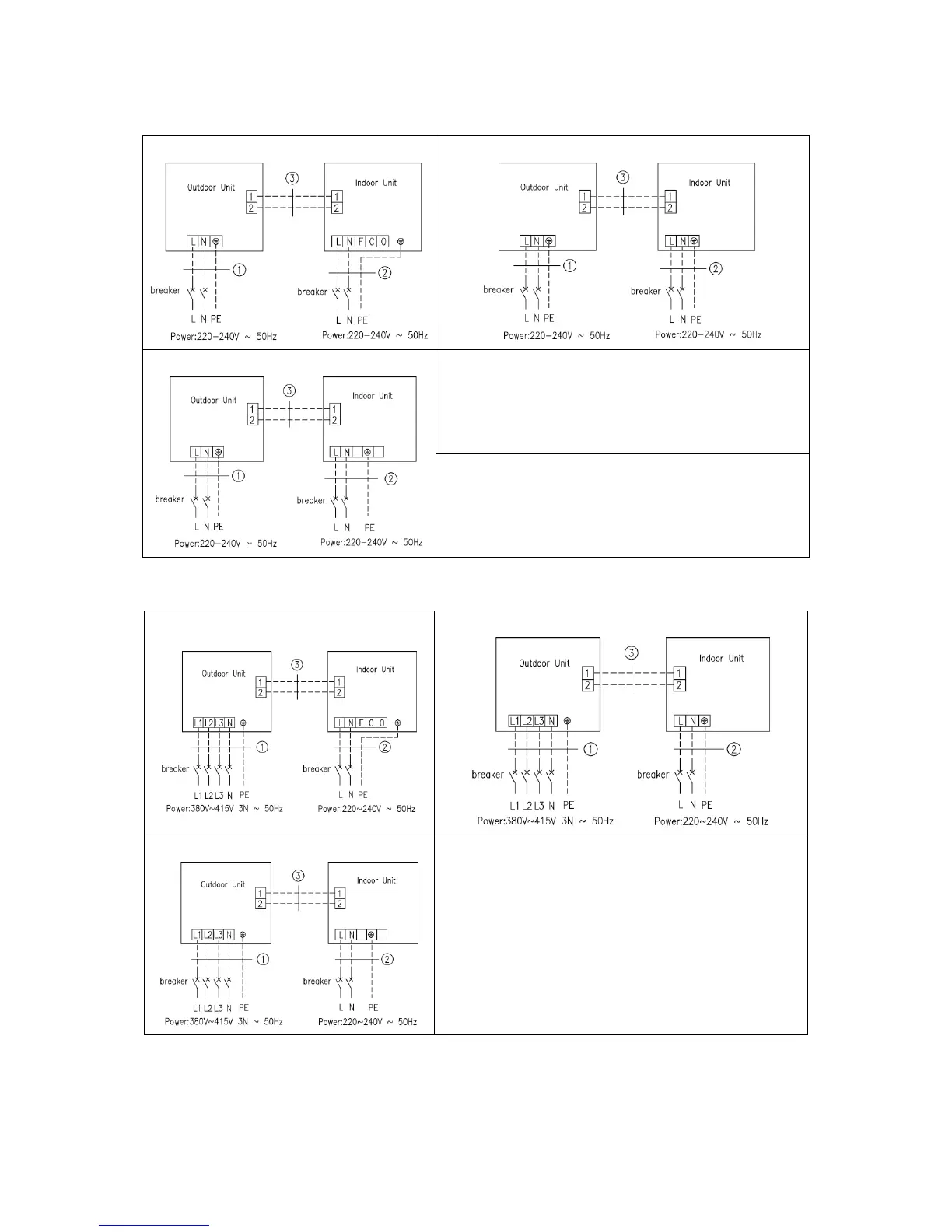

Figure 3-2-9
