D.C. Inverter Multi VRF Modular
10

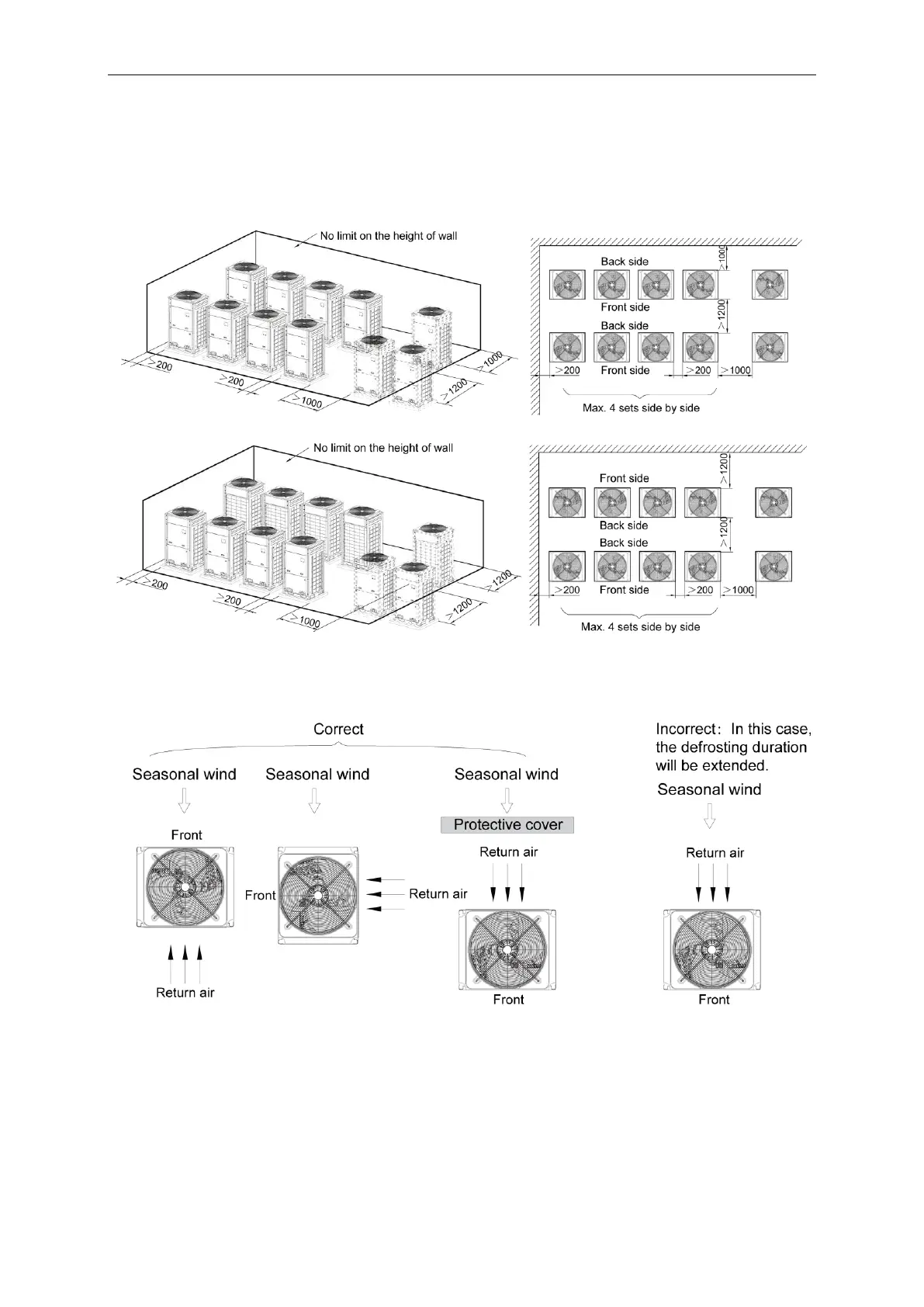

3.2.3 Space dimension for multiple-module unit
For keeping good ventilation, make sure there is no obstructions above the unit.
When the unit is located at a half-open space (front and left/right side is open), install the unit
as per the same or opposite direction.
Fig.9
Fig.10
3.2.4 Take seasonal wind into consideration when installing the outdoor unit
Fig.11
