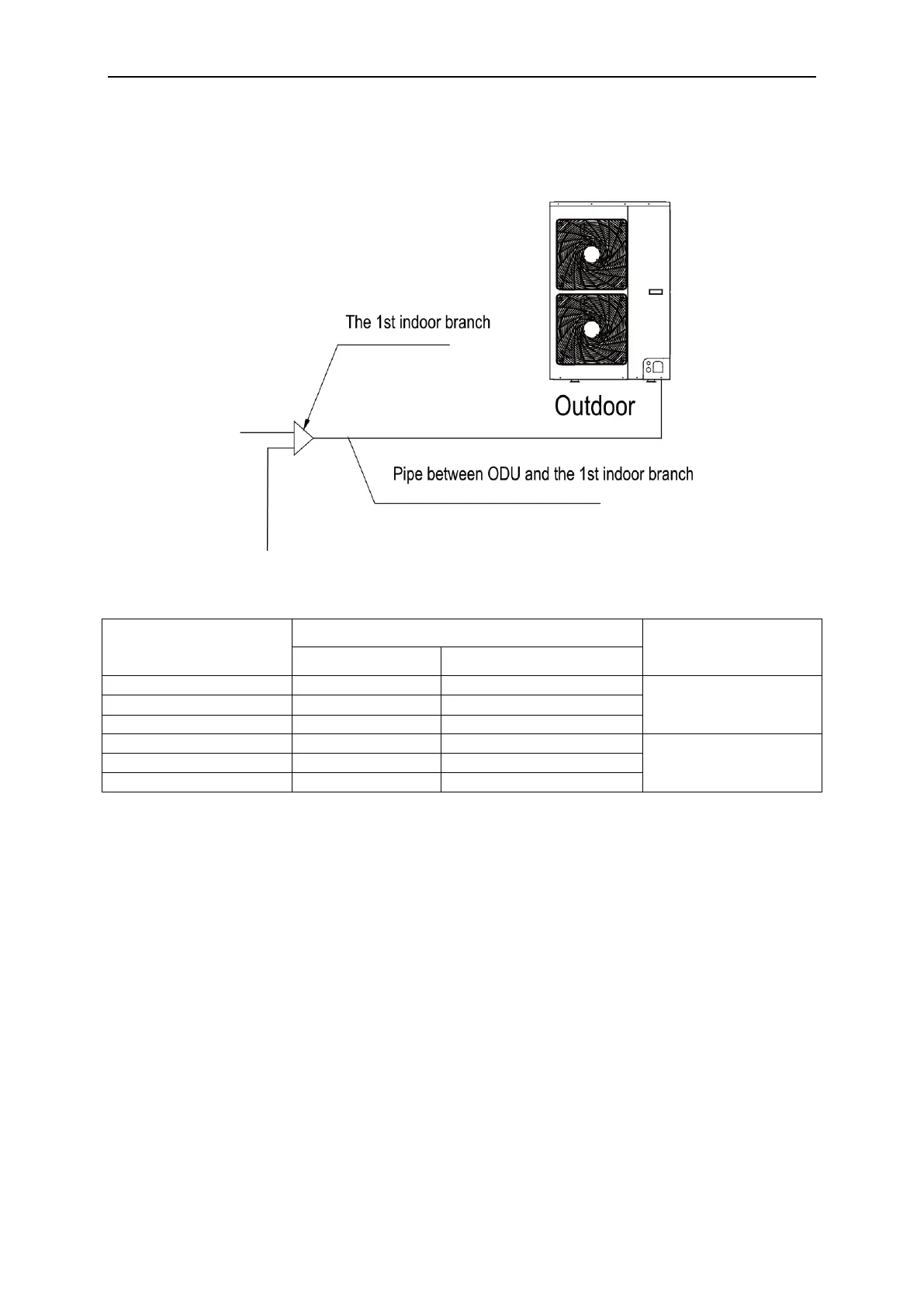

4.2.3 Dimension of Pipe (Main Pipe) from ODU to the 1st Indoor Branch
Dimension of pipe from ODU to the 1st indoor branch will be determined by the dimension of
outdoor connection pipe.
Fig.6
Dimension of outdoor connection pipe
Basic module
Pipe dimension
Connection method
Gas pipe (mm)
Liquid pipe（mm）
GMV-H224WL/A-X
Φ19.05
Φ9.52
Welding connection
GMV-H280WL/A-X
Φ22.20
Φ9.52
GMV-H335WL/A-X
Φ25.40
Φ12.70
GMV-224WL/C-X
Φ19.05
Φ9.52
Welding connection
GMV-280WL/C-X
Φ22.20
Φ9.52
GMV-335WL/C-X
Φ25.40
Φ12.70
