DC Inverter Multi VRF System
15

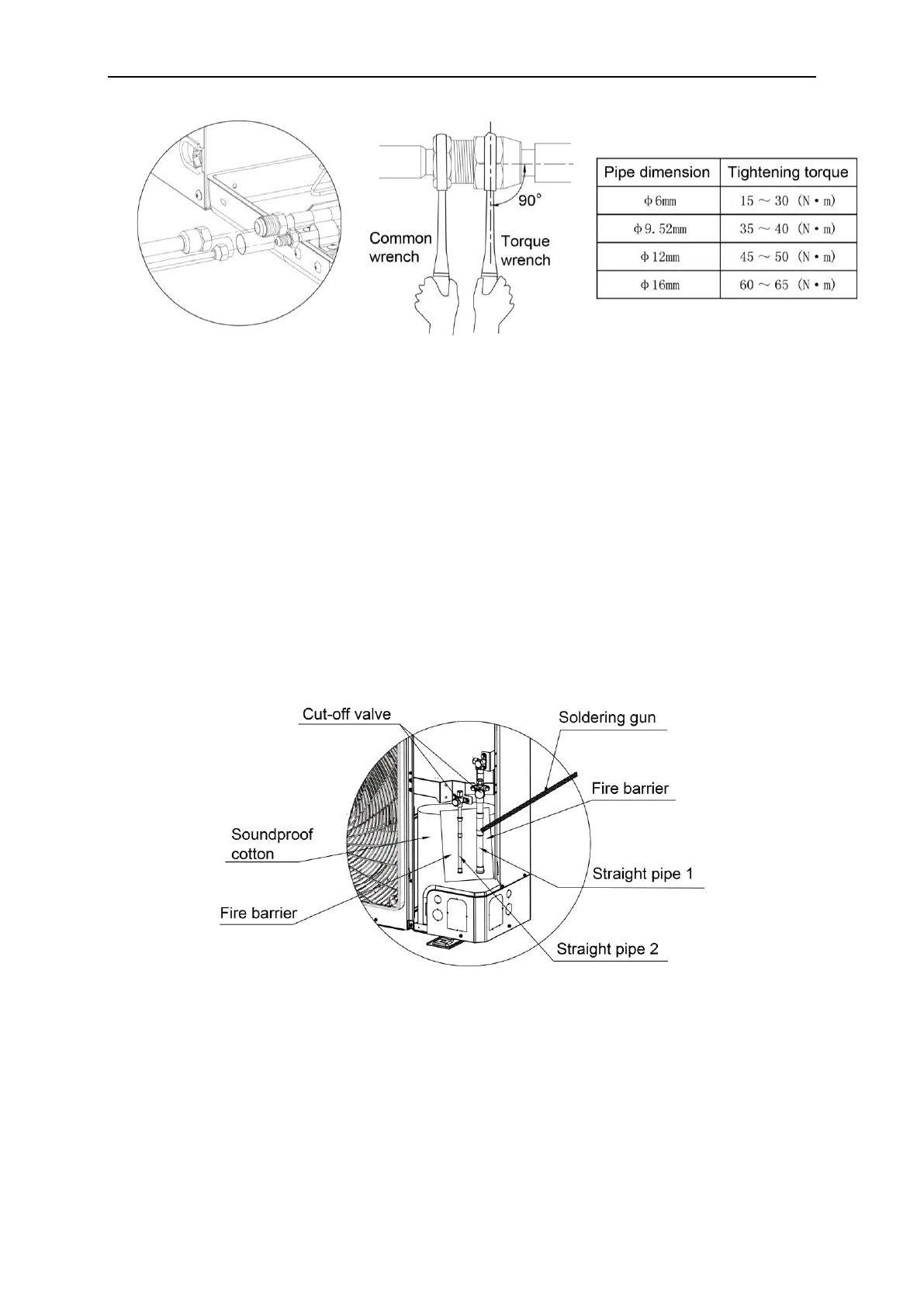

Fig. 13 Fig. 14
4.3.5 Outdoor Pipe Connection
During engineering installation, the connection pipe inside the unit must be wrapped by
insulation sleeve.
（1） Pipe connection for GMV-H224WL/A-X,GMV-224WL/C-X:As shown in Fig.15 and
Fig.16, open the outermost soundproof cotton and place a fire barrier between
compressor and straight pipe. Use a soldering gun to unsolder straight pipe 1 and
straight pipe 2. Install connection pipe 1 and connection pipe 2 to the corresponding
position and then seal the apertures with welding rod. First weld the liquid side
connection pipe and then weld the gas side connection pipe. During welding, it’s
necessary to use wet gauze to wrap up the two cut-off valves. Make sure the flame
won’t burn the soundproof cotton or other components.
Fig. 15
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.
