GREE GMV5E DC INVERTER VRF UNITS SERVICE MANUAL

213

full protection happens.

Possible reason：

■IDU is installed improperly

■Drainage pump is broken

■Float switch operates abnormally

■IDU mainboard is abnormal

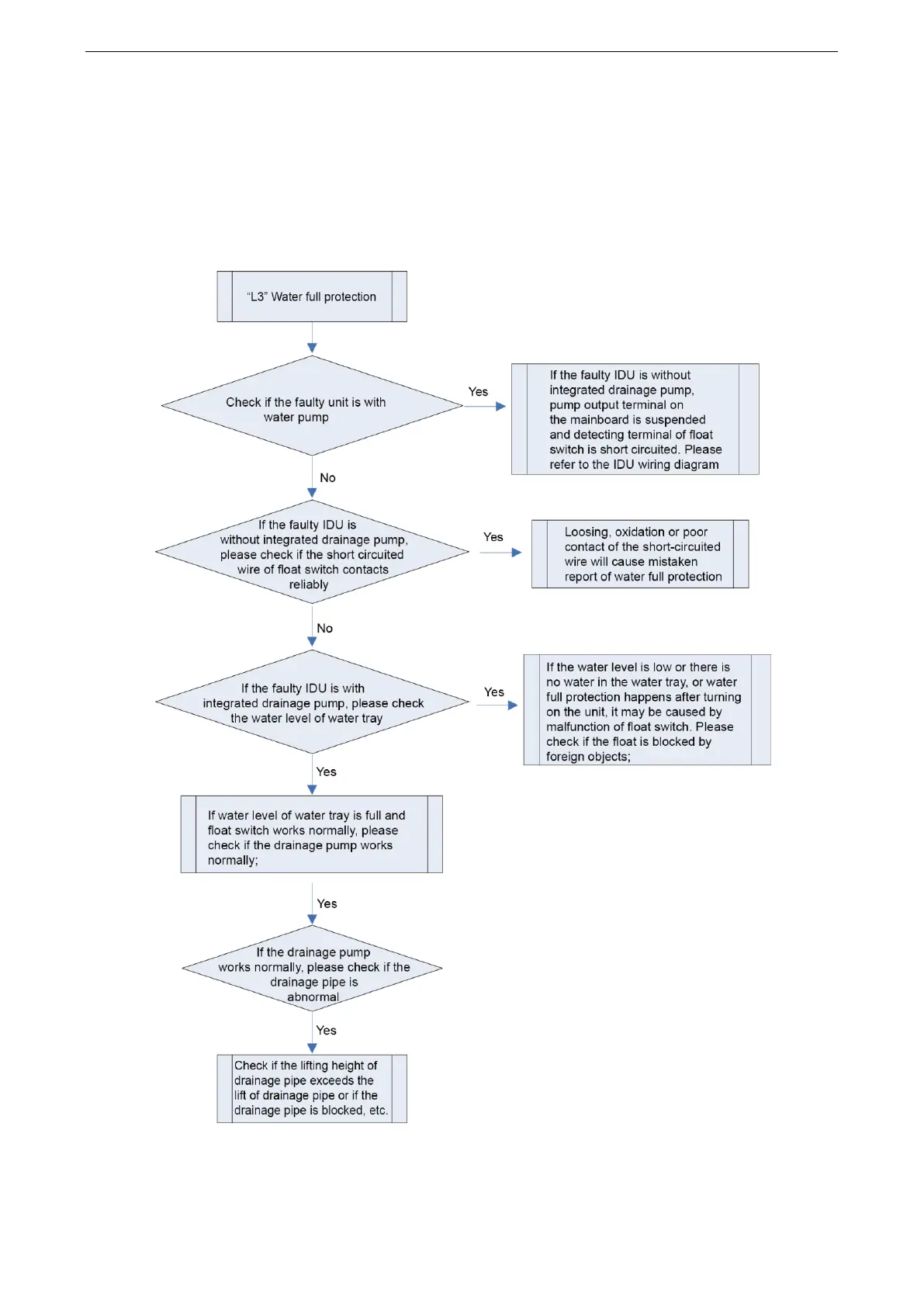

Troubleshooting:
