GREE GMV5E DC INVERTER VRF UNITS SERVICE MANUAL
286
3.5.2 Model: GMV-335WM/E-X

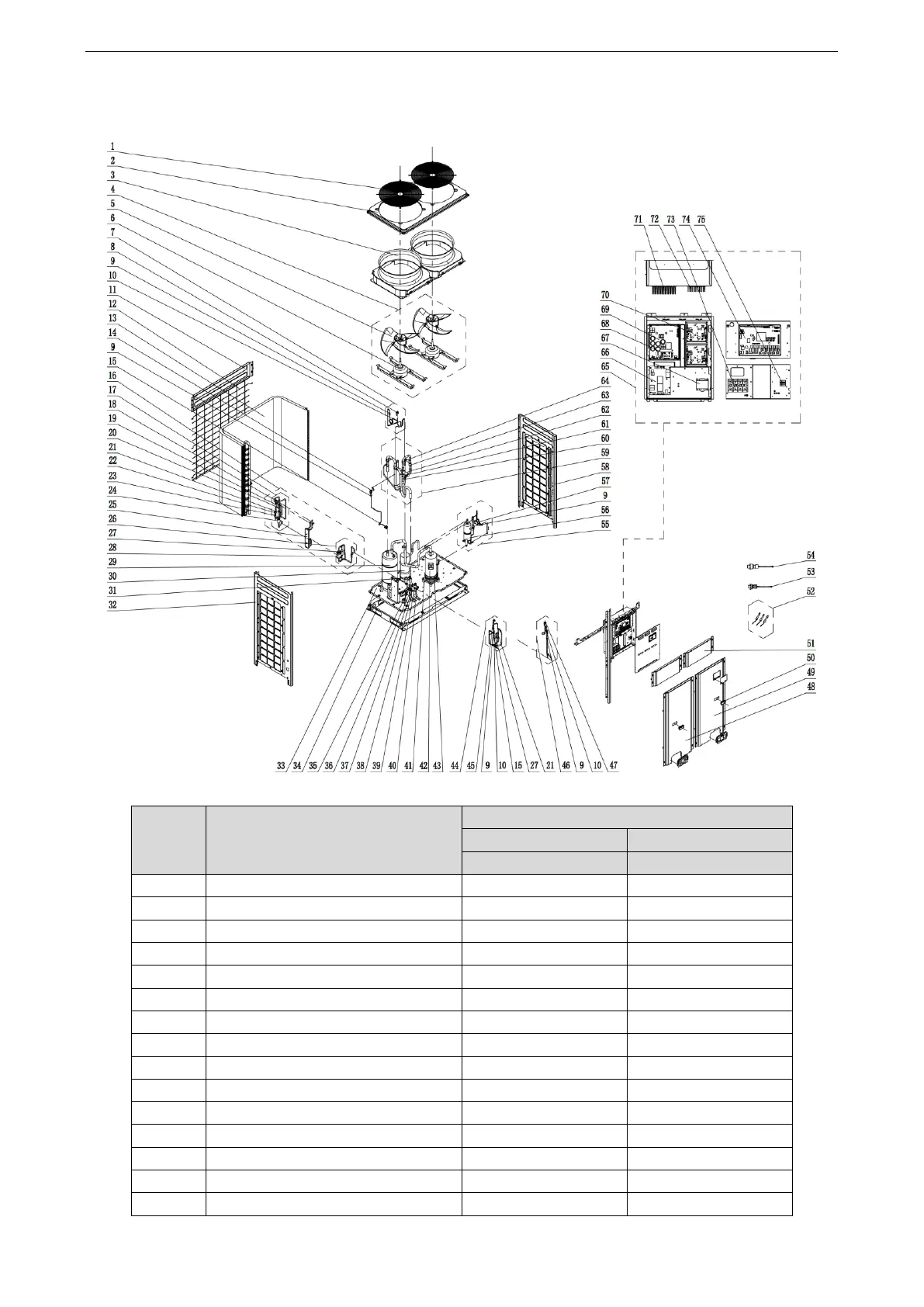

Exploded View:
Parts List:
No.
Name of part
GMV-335WM/E-X
Product Code
CN851W1810
Part code
Quantity
1
Rear Grill
01574100002
2
2
Top Cover
01264100006P
1
3
Diversion Circle
10474100002
2
4
Motor for Axial Fan Assy
15404100018
2
5
Axial Flow Fan
10434100002
1
6
Fan Motor
15704124
1
7
Gas By-pass sub- assy
04634100012
1
8
Magnet Coil
4304000420
1
9
Filter
07415200002
1
10
Electromagnetic Valve
43000054
1
11
Rear Top Cover
01264100005P
1
12
Rear Grill
01574100001
1
13
Condenser Assy
01124100096
1
14
Low Pressure Survey Valve Sub-assy
07334100010
1
15
Cut off Valve
07130239
1
