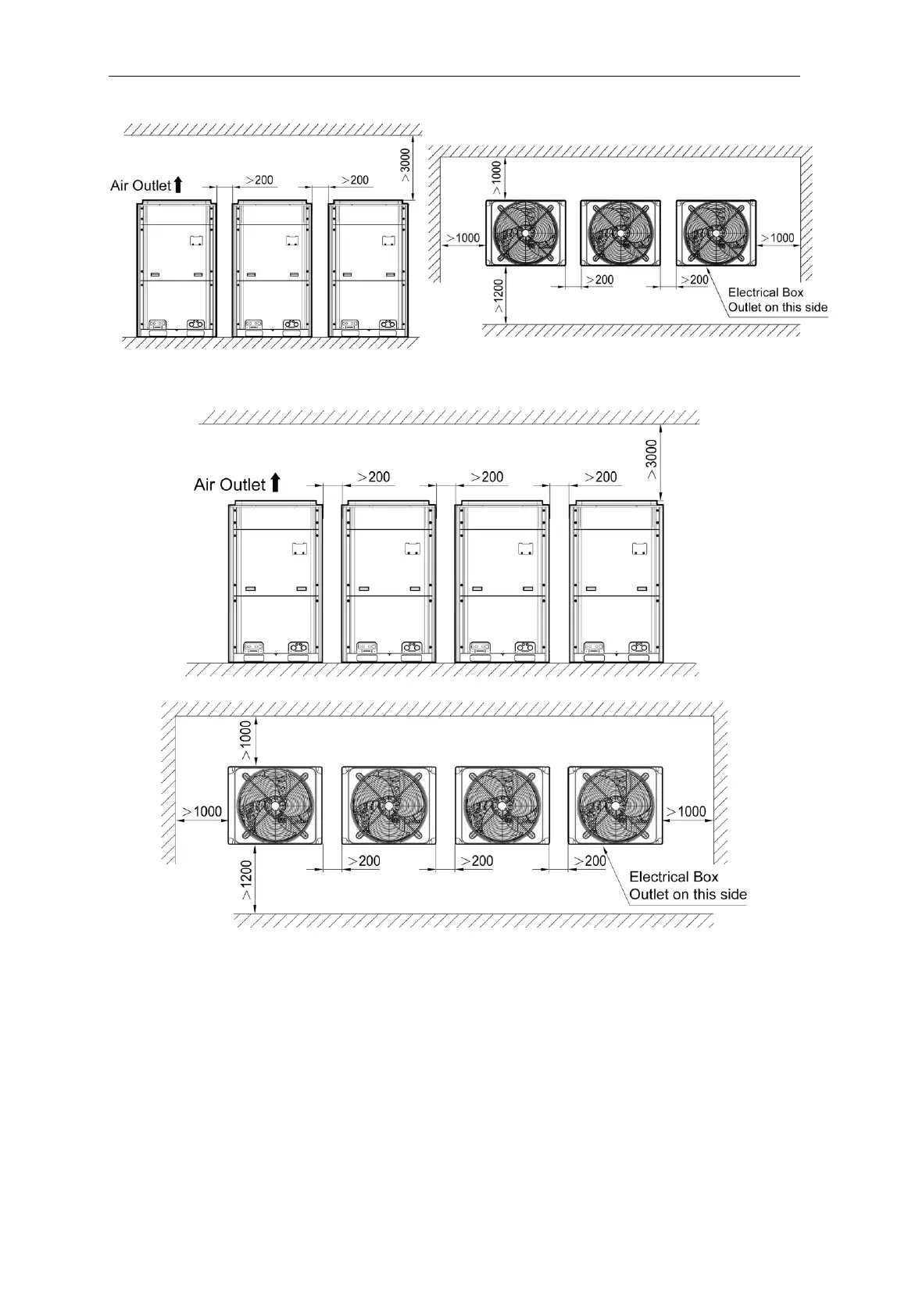

3.2.1.3 Space dimension for three-module unit
Fig. 3.2.3
3.2.1.4 Space dimension for four-module unit
Fig. 3.2.4
3.2.2 When there is wall (or similar obstruction) above the unit, keep the distance
between the unit top and the wall at least 3000mm or above. When the unit is
located in a totally open space with no obstructions in four directions, keep the
distance between the unit top and wall at least 1500mm or above (See Fig. 3.2.5).
When space is limited within 1500mm or the unit is not set in an open space, air
return pipe is required to be installed in order to keep good ventilation (See Fig.
3.2.6).
