GMV DC Inverter VRF
44
4.7.2 Communication connection between IDU and wired controller

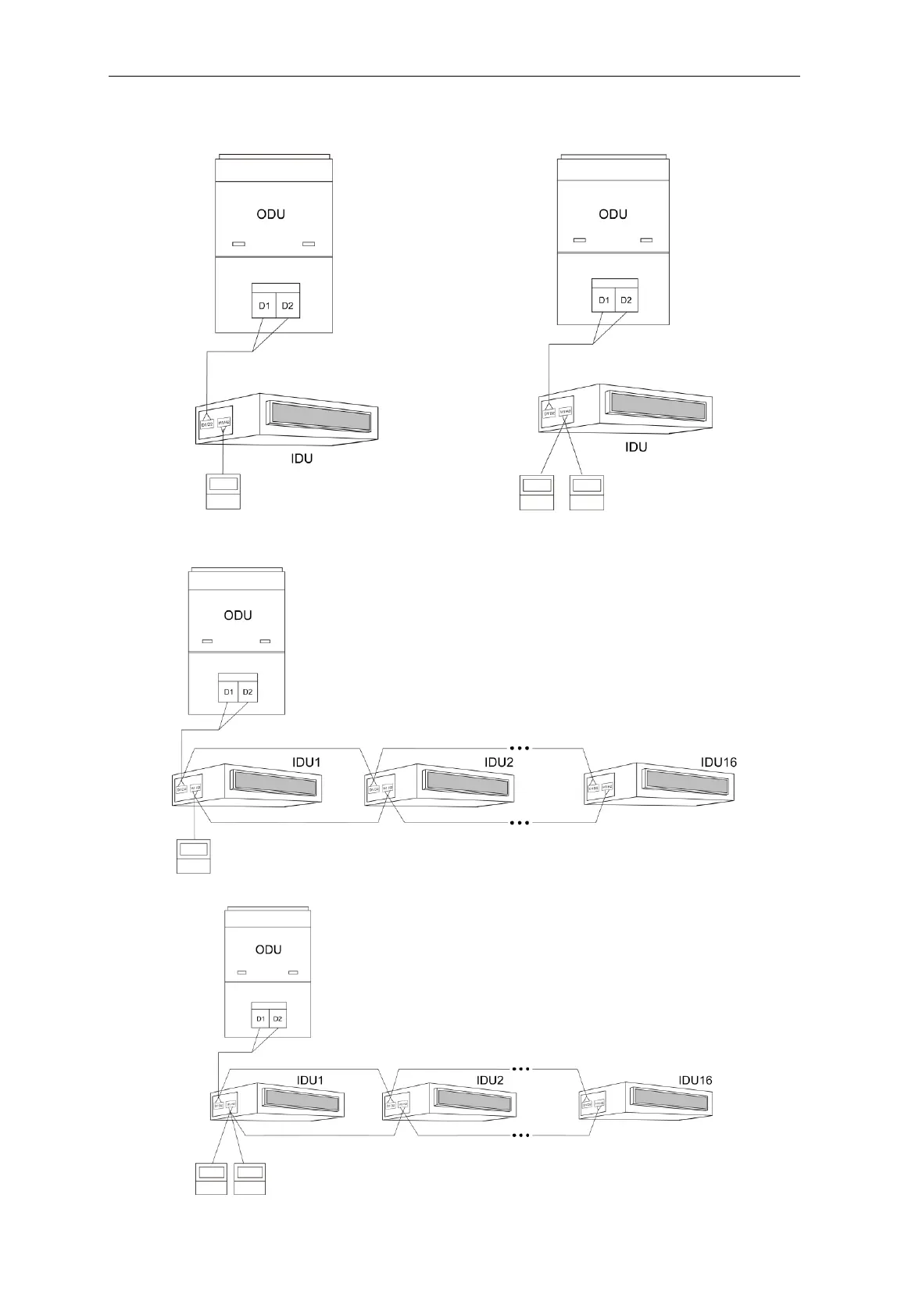

There are four kinds of connection between IDU and wired controller, as shown below:
Fig. 4.7.3 One wired controller controls one IDU Fig. 4.7.4 Two wired controllers control
one IDU
Fig. 4.7.5 One wired controller controls multiple IDUs
Fig. 4.7.6 Two wired controllers control multiple IDUs
