Gree GMV-450WM/B-X User Manual

D.C. Inverter Multi VRF Modular
17
GMV-504WM/B-X, GMV-560WM/B-X and GMV-615WM/B-X
Fi
g.19
4.2.3 Allowable pipe length and drop height among indoor and outdoor units

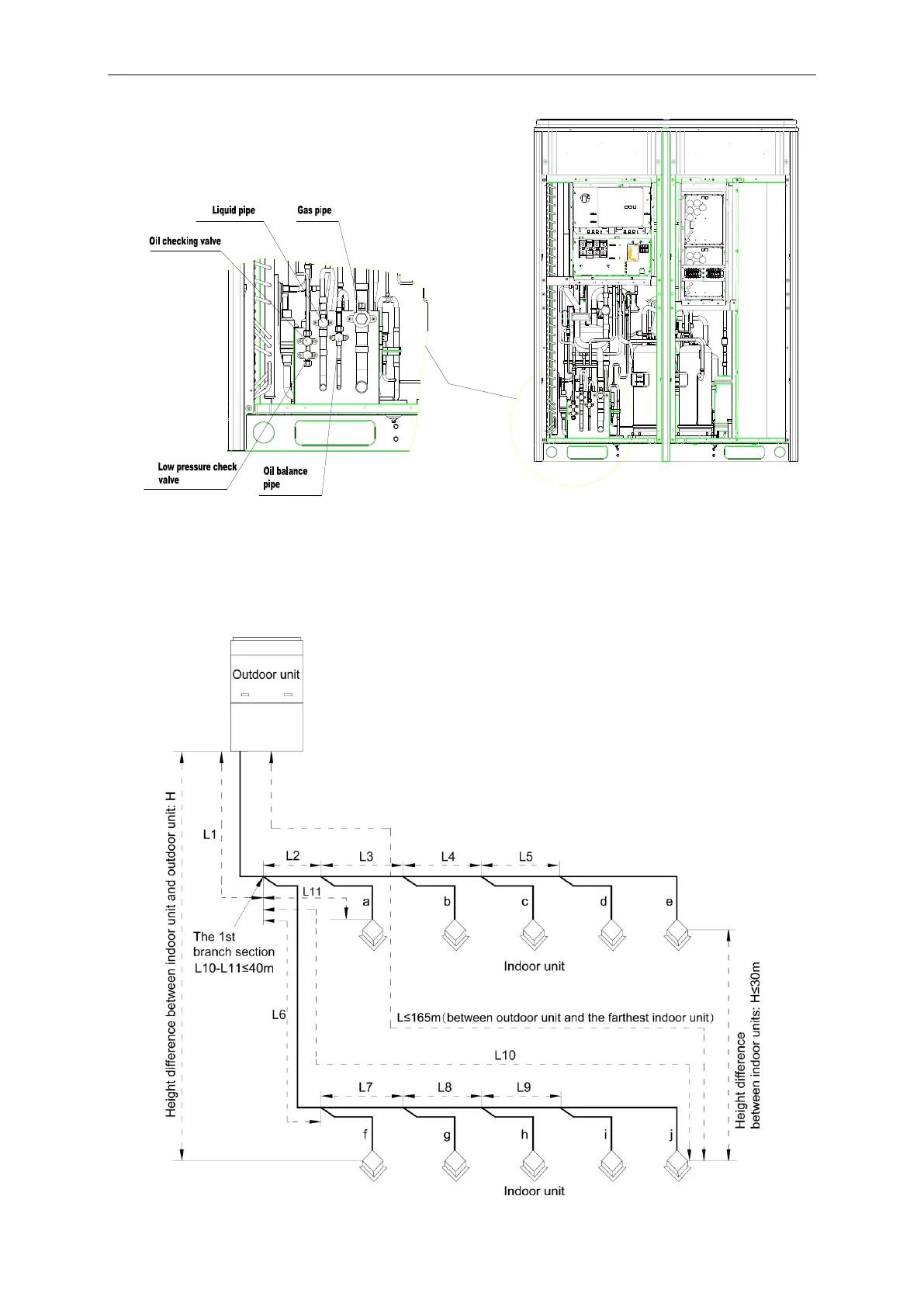

Y type branch joint is adopted to connect indoor and outdoor units. Connecting method is
shown in the figure below.
Remark: Equivalent length of one Y-type manifold is about 0.5m.
Fig.20
