Gree GMV-450WM/B-X User Manual

D.C. Inverter Multi VRF Modular
21
Pipe size of basic outdoor module is shown as follows:
Basic Module
Pipe between ODU and the first branch of IDU
Gas Pipe(mm)
Liquid Pipe(mm)
GMV-224WM/B-X
Φ19.05
Φ9.52
GMV-280WM/B-X
Φ22.2
Φ9.52
GMV-335WM/B-X
Φ25.4
Φ12.7
GMV-400WM/B-X
Φ25.4
Φ12.7
GMV-450WM/B-X
Φ28.6
Φ12.7
GMV-504WM/B-X
Φ28.6
Φ15.9
GMV-560WM/B-X
Φ28.6
Φ15.9
GMV-615WM/B-X
Φ28.6
Φ15.9

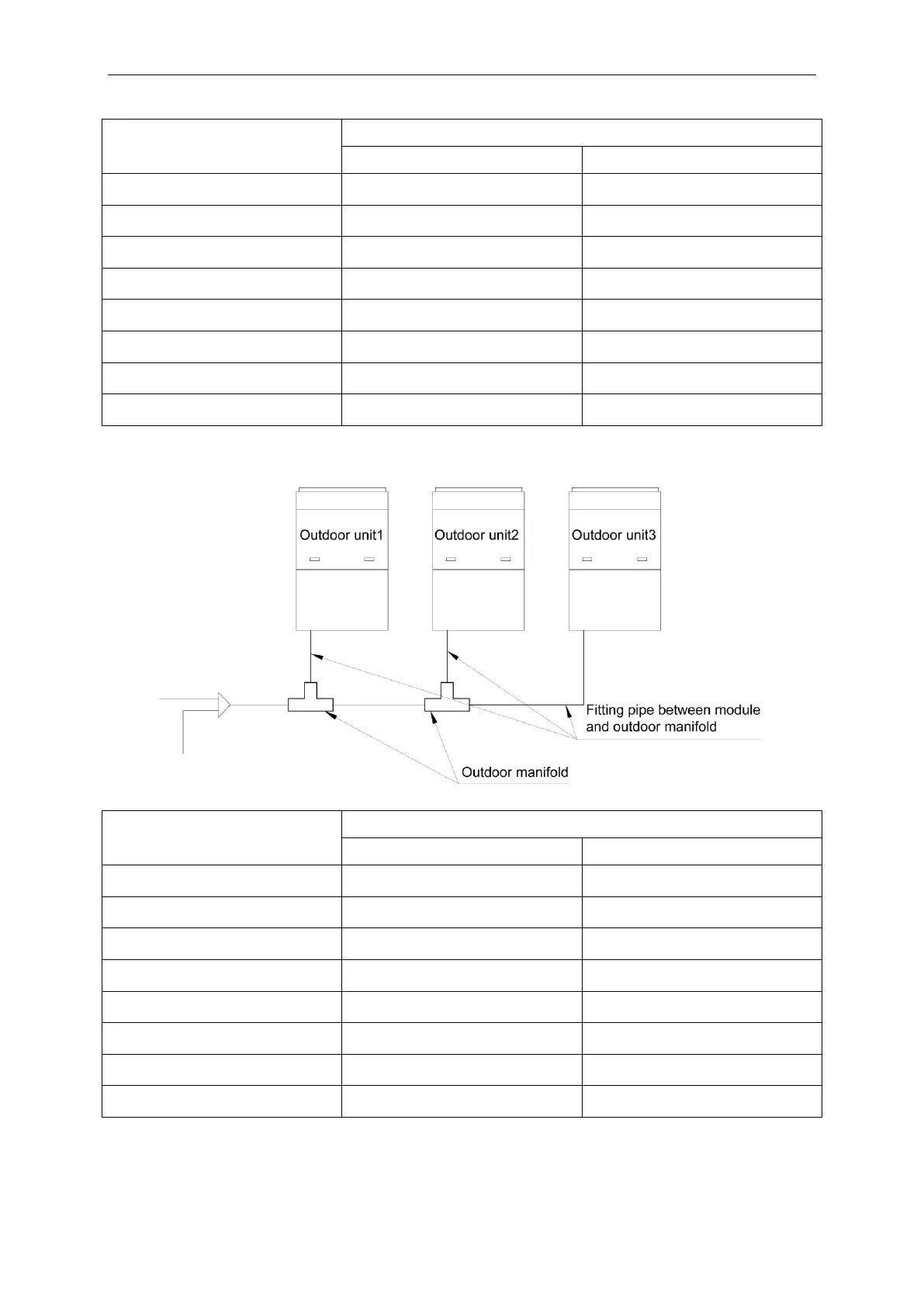

4.2.5.2 For multi-module unit, select appropriate manifold connected to oudoor module as per the
pipe size of basic module. Pipe size of basic outdoor module is shown as follows:
Fig.24
Basic Module
Pipe between module and branch of ODU
Gas Pipe(mm)
Liquid Pipe(mm)
GMV-224WM/B-X
Φ19.05
Φ9.52
GMV-280WM/B-X
Φ22.2
Φ9.52
GMV-335WM/B-X
Φ25.4
Φ12.7
GMV-400WM/B-X
Φ25.4
Φ12.7
GMV-450WM/B-X
Φ28.6
Φ12.7
GMV-504WM/B-X
Φ28.6
Φ15.9
GMV-560WM/B-X
Φ28.6
Φ15.9
GMV-615WM/B-X
Φ28.6
Φ15.9
