Gree GMV-450WM/B-X User Manual

D.C. Inverter Multi VRF Modular
23

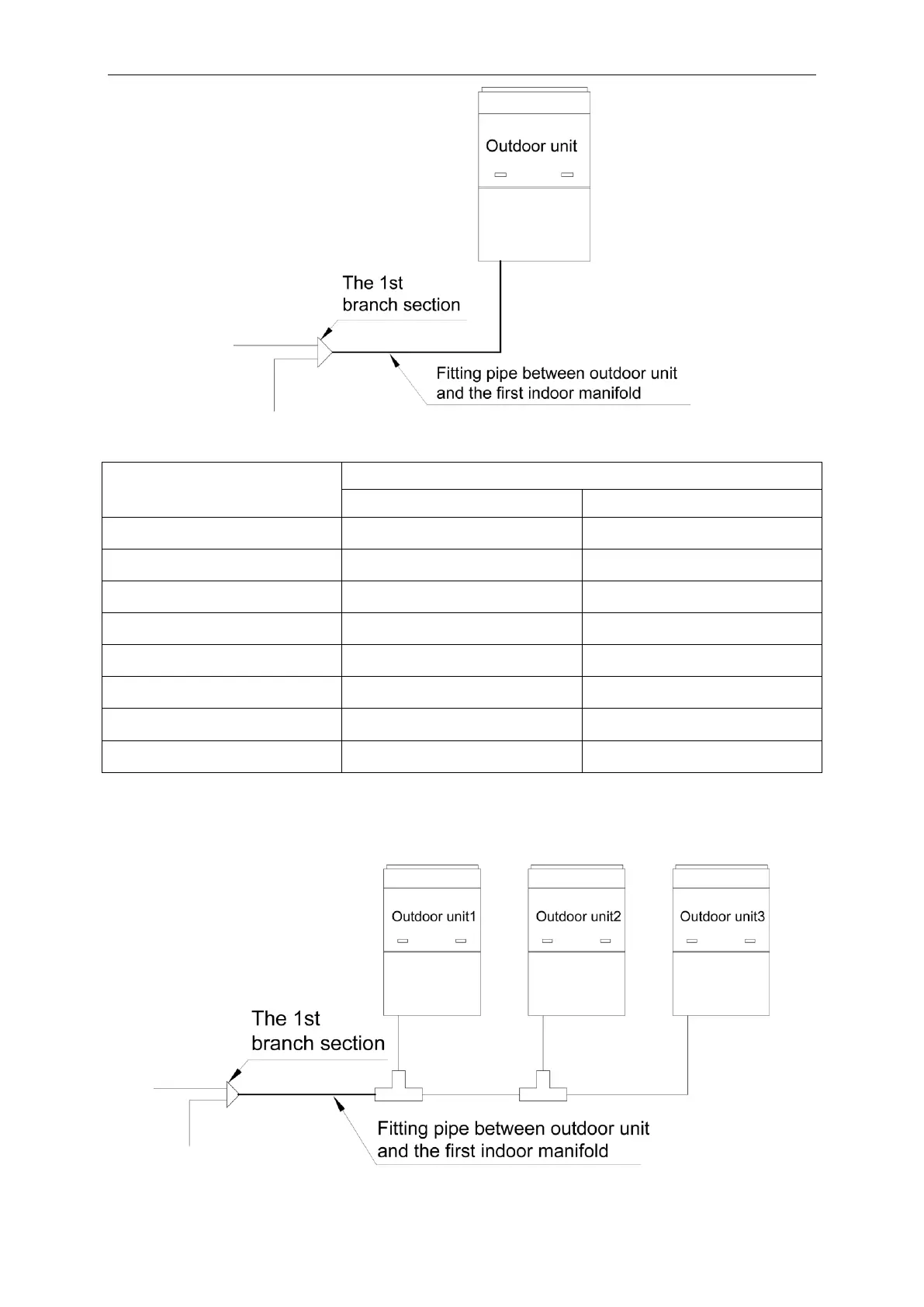

Fig.26
Basic Module(single module)
Pipe between ODU and the first branch of IDU
Gas Pipe(mm)
Liquid Pipe(mm)
GMV-224WM/B-X
Φ19.05
Φ9.52
GMV-280WM/B-X
Φ22.2
Φ9.52
GMV-335WM/B-X
Φ25.4
Φ12.7
GMV-400WM/B-X
Φ25.4
Φ12.7
GMV-450WM/B-X
Φ28.6
Φ12.7
GMV-504WM/B-X
Φ28.6
Φ15.9
GMV-560WM/B-X
Φ28.6
Φ15.9
GMV-615WM/B-X
Φ28.6
Φ15.9
For multiple modules, the piping from ODU to the first branch of IDU is based on the total
rated capacity of outdoor modules.
Fig.27
