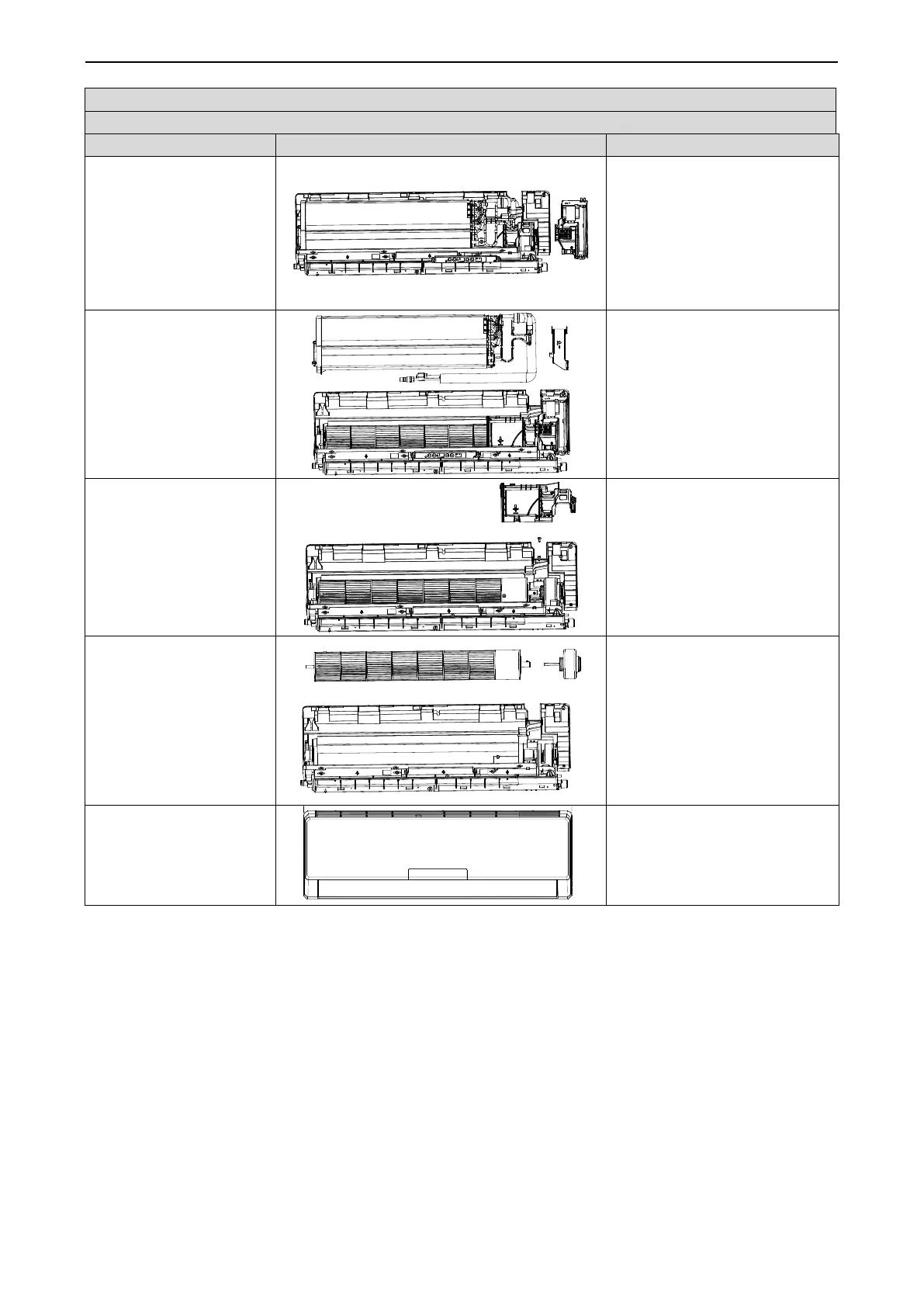

GREE GMV5 INDOOR UNIT SERVICE MANUAL
180
Removal of Fan Motor
Remark: before removing, making sure power is disconnected.
Step
Diagram
Operation Procedure
7. Remove the electrical
box
●Unscrew the screws fixing the
electrical box with a screwdriver.
●Remove the electrical box.
8. Remove the evaporator
●Use a screwdriver to unscrew the
screws fixing the press plate of
connection pipe on the back of the
unit and take off the press plate.
●Unscrew the screws of
evaporator with a screwdriver and
then remove the evaporator.
9.Remove motor’s pressing
plate
●Unscrew the fixing screws of the
pressing plate with a screwdriver
and then remove it.
10. Remove the motor and
fan
●Take off the motor and fan
directly.
●Use a screwdriver to unscrew the
screws connecting the motor and
the fan.
11. Install a new motor.
●Assemble units based on the
reverse order of this procedure
and power on the units for test.
