Gree GMV-N140U/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
195

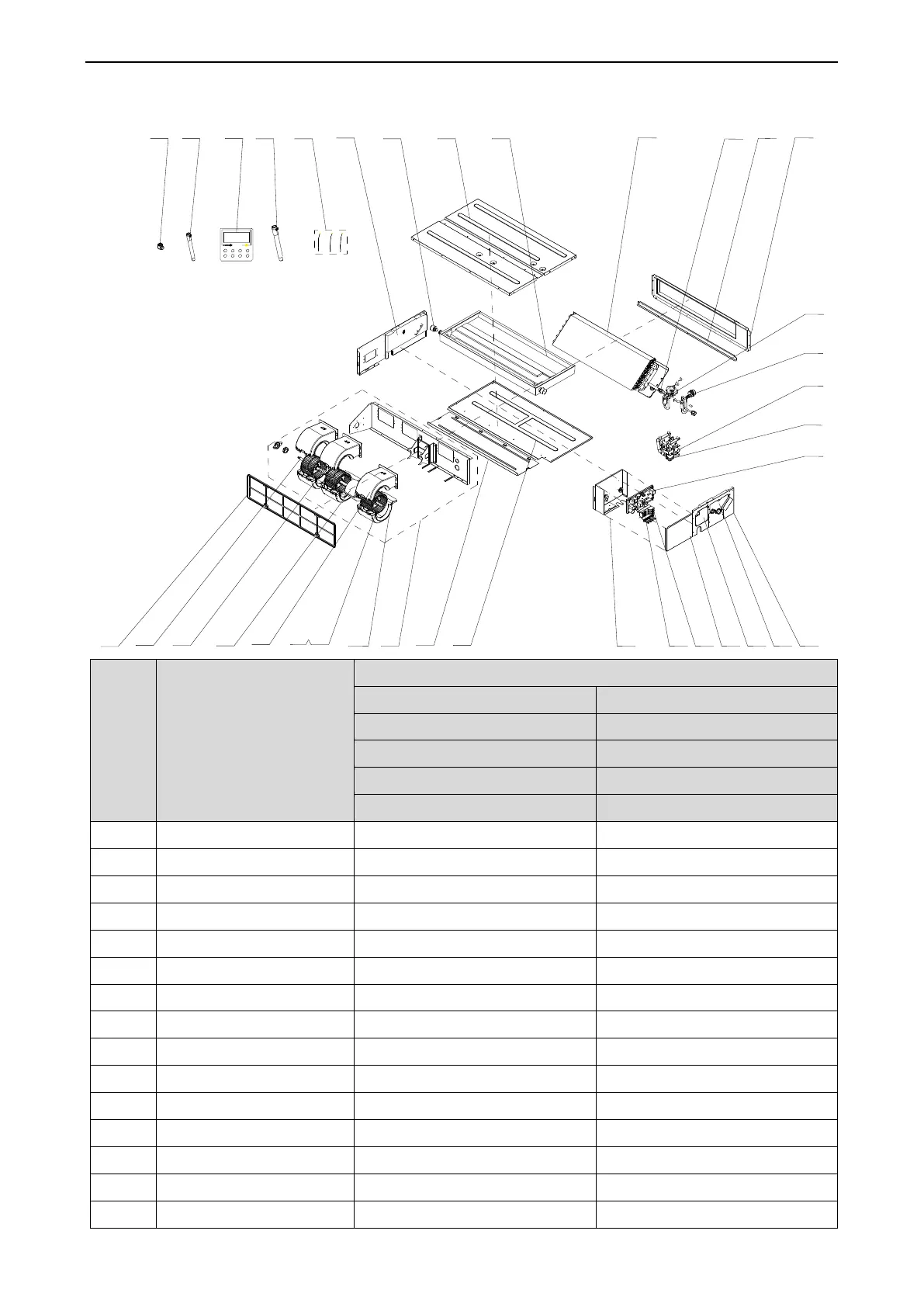

Exploded View of GMV-ND40PLS/A-T, GMV-ND45PLS/A-T, GMV-ND50PLS/A-T:
5
6
8
31
7
4
12 13 14 15 16 17 18
30
2929 2828
32
24
25
27
22
23
21
20
26
1919
34 33
1
3
2
10 11
9
3536
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND40PLS/A-T
CM800N3400
GMV-ND45PLS/A-T
CM800N3410
GMV-ND50PLS/A-T
CM800N3420
Part code
Quantity
1
Filter Sub-Assy
11725210
1
2
Rotary Axis Sub-Assy
73018020
1
3
Joint Slack
73018731
1
4
Fan Motor
15704100001
1
5
Front Volute Casing
26905205
3
6
Centrifugal Fan
10425200
3
7
Fan Bearing
76512210
1
8
Rear Volute Casing
26905206
3
9
Centrifugal fan assy
15404100023
1
10
Cover board (Fan motor)
01265333
1
11
Bottom Cover Plate
01265332
1
12
Electric Box Assy
01394100204
1
13
Terminal Board
42011106
1
14
Terminal Board
4201800002601
1
15
Electric Box Cover
01424100035
1
