Gree GMV-N140U/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
226
NO.
Model
GMV-NX140P/A(X1.2)-K
Qty.
Product Code
CM800N3610
Part Name
Part Code
22
Cover Of Air-In
01258602
1
23
Top Cover Board Assy
01264625
1
24
Fan Motor Mounting Plate Sub-Assy
01325293
1
25
Blower
15018603
2
26
Fan Motor
1570520901
1
27
Blower
15018604
1
28
Air intake side-board Sub-assy
01375221
1
29
Fan Motor
1570521001
1
30
Filter Sub-Assy
11725205
2
31
Main Board
30226000052
1
32
Capacitor CBB61
33010056
1
33
Capacitor CBB61
33010064
1
34
Terminal Board
4201800002601
1
Above data is subject to change without notice, pls reference the SP in global service website.

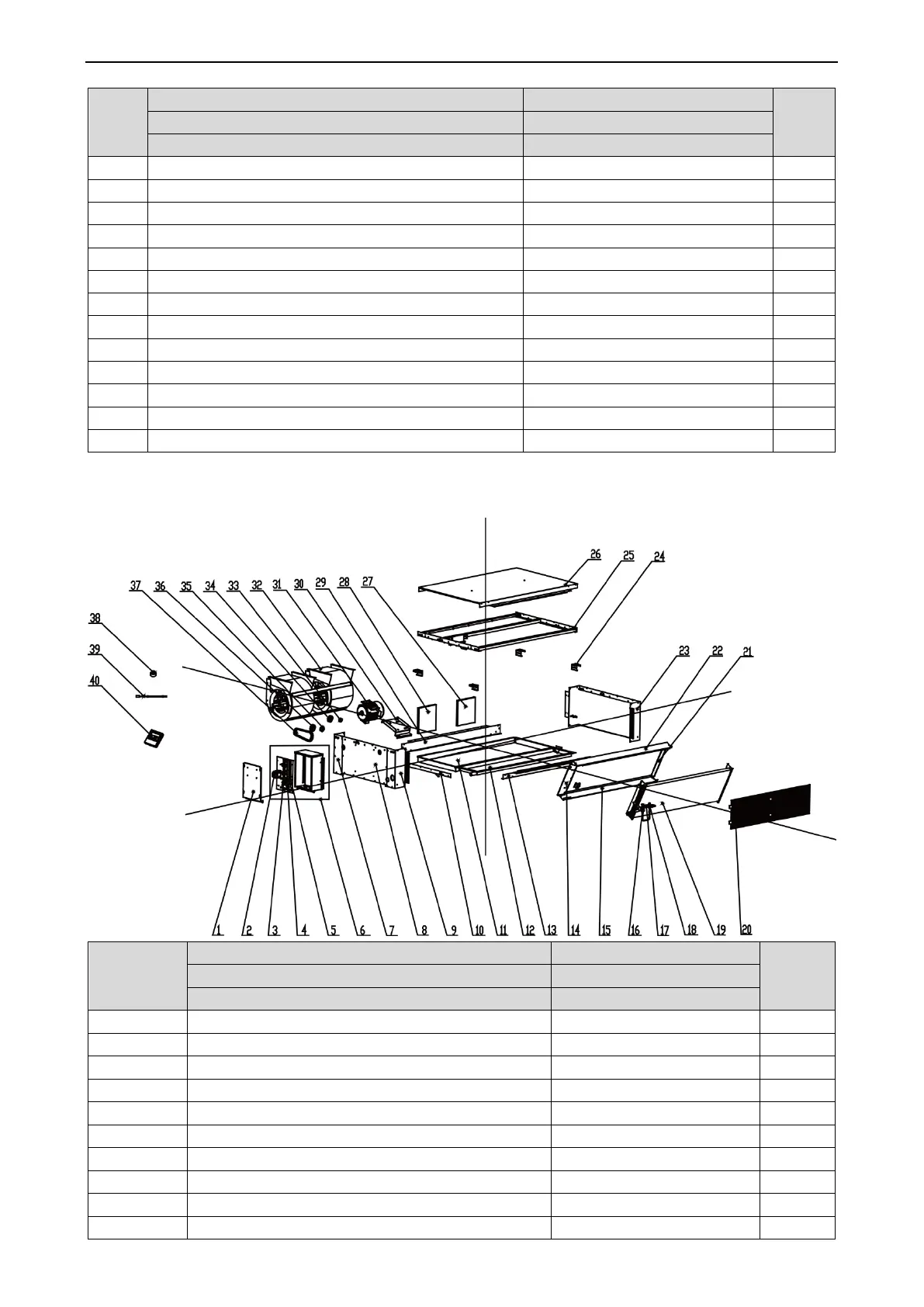

Exploded View of GMV-NX224P/A(X2.0)-M:
NO.
Model
GMV-NX224P/A(X2.0)-M
Qty.
Product Code
CM800N3620
Part Name
Part Code
1
Electric Box Cover
01419141
1
2
AC Contactor
44010232
1
3
Terminal Board
420100071
1
4
Terminal Board
4201800002601
1
5
Main Board
30226000052
1
6
Electric Box Assy
01394100202
1
7
Right Side Plate Sub-Assy
01309105
1
8
Access panel sub-assy
01544126
1
9
Right Side Plate Sub-Assy
01314209
1
10
Side beam assy
01874178
1
