GREE GMV5 INDOOR UNIT SERVICE MANUAL
232
NO.
Model
GMV-NDX125P/A-T
GMV-NDX140P/A-T
Qty.
Product Code
CM810N1220
CM810N1020
Part Name
Part Code
Part Code
27
Foam Sub-Assy(Water Tray)
12505200021
12505200021
1
28
Top Cover Board Assy
01264100105
01264100105
1
29
Right Side Plate Assy
01315200148
01315200148
1
30
Display Board
30296000040
30296000040
1
31
Temperature Sensor
3900005910
3900005910
1
32
Temperature Sensor
390000592
390000592
1
33
Temperature Sensor
390000454
390000454
1
34
Temperature Sensor
390002072
390002072
1
35
Drain Hose Sub-Assy
05232050
05232050
1
36
Corrugated Pipe
05015408
05015408
1
Above data is subject to change without notice, pls reference the SP in global service website.

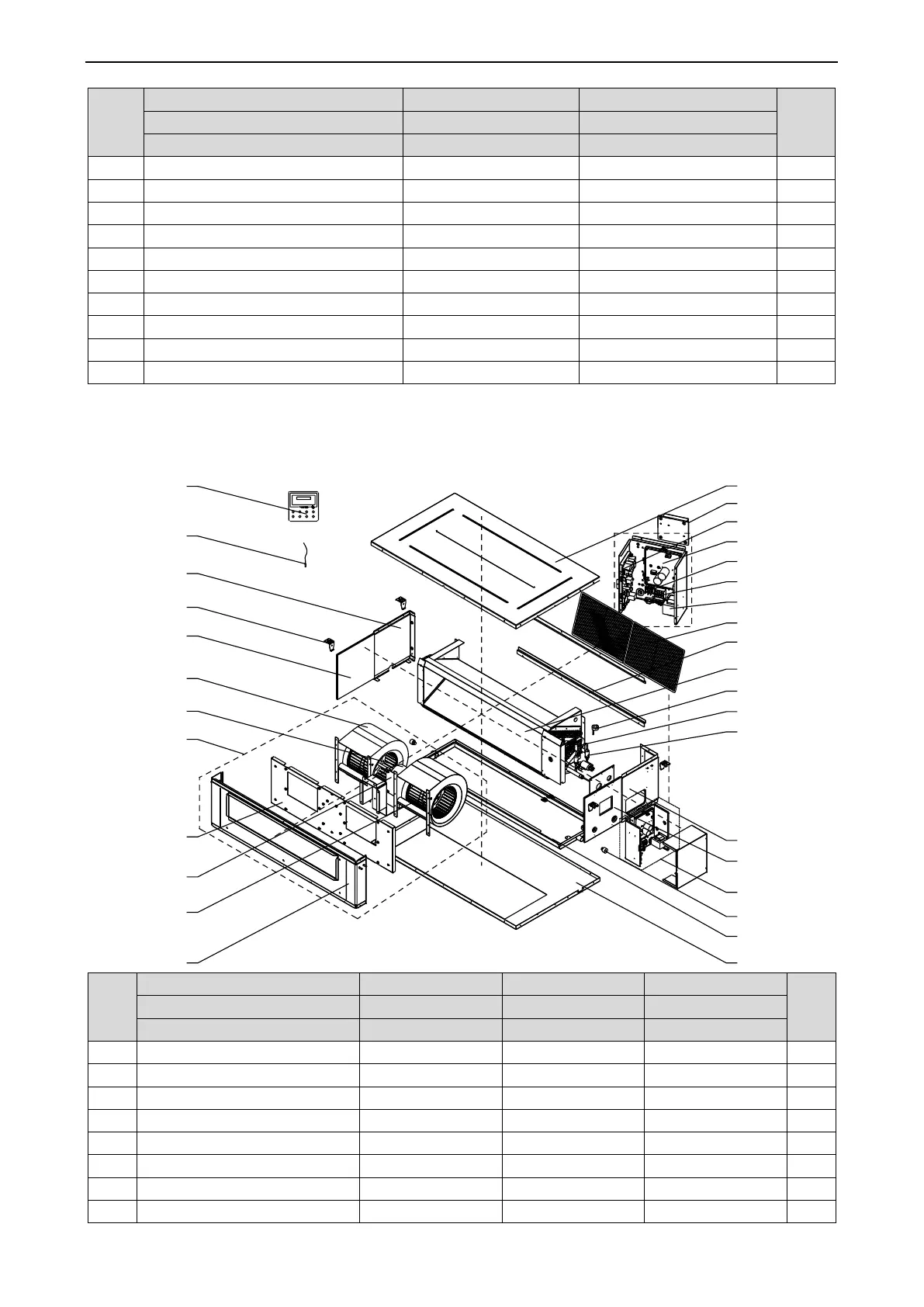

Exploded View of GMV-NDX224P/A-T, GMV-NDX250P/A-T, GMV-NDX280P/A-T:
12
6
2
1
5
3
4
10
11
9
7
13
17
16
31
19
14
18
20
22
29
23
25
26
27
28
严 禁 在 潮 湿 场
所 使 用
24
15
21
8
30
NO.
Model
GMV-NDX224P/A-T
GMV-NDX250P/A-T
GMV-NDX280P/A-T
Qty.
Product Code
CM810N0260
CM810N1230
CM810N0270
Part Name
Part Code
Part Code
Part Code
1
Display Board
30296000040
30296000040
30296000040
1
2
Sensor Sub-Assy
39004165G
39004165G
39004165G
1
3
Left Side Plate Assy 2
01315367
01315367
01315367
1
4
Hook
02112466
02112466
02112466
4
5
Left Side Plate Sub-Assy 1
01315376
01315376
01315376
1
6
Centrifugal Fan (Left)
1570530601
1570530601
1570530601
1
7
Brushless DC Motor
15704100009
15704100009
15704100009
1
8
Centrifugal Fan Assy
15404100075
15404100075
15404100075
1
