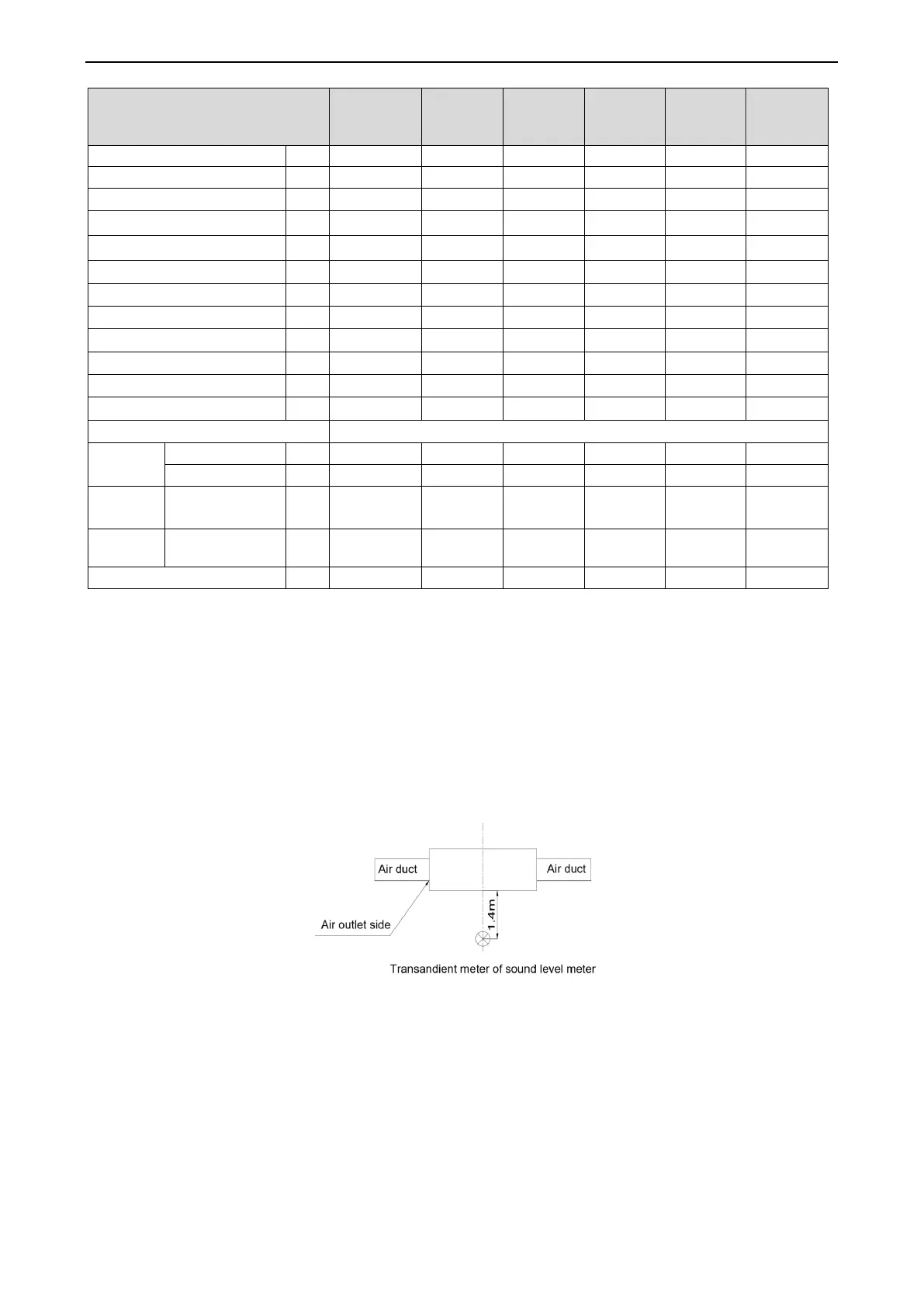

GREE GMV5 INDOOR UNIT SERVICE MANUAL
42
Model
GMV-
ND90PHS/B-
T
GMV-
ND100PHS/
B-T
GMV-
ND112PHS/
B-T
GMV-
ND125PHS/
B-T
GMV-
ND140PHS/
B-T
GMV-
ND160PHS/
B-T
Horse Power
HP
4
4
4
5
5
6
Cooling capacity
kW
9.0
10.0
11.2
12.5
14.0
16.0
Heating capacity
kW
10.0
11.2
12.5
14.0
16.0
18.0
Air Volume
m
3
/h
1800
1800
2000
2000
2350
2500
External Static Pressure
Pa
90/0~200
90/0~200
90/0~200
90/0~200
90/0~200
90/0~200
Cooling power input
W
140
140
160
160
220
230
Cooling current input
A
1.1
1.1
1.1
1.1
2.0
2.0
Heating power input
W
140
140
160
160
220
230
Heating current input
A
1.1
1.1
1.1
1.1
2.0
2.0
*Minimum line current
A
0.75
0.75
0.875
0.875
1.25
1.25
*Maximum fuse current
A
6
6
6
6
6
6
Sound pressure level
dB(A)
40
40
40
40
42
44
Power supply**
220-240V 1 phase ~50Hz/208-230V 1 phase ~60Hz
Pipe
diameter
Liquid pipe
mm
Φ9.52
Φ9.52
Φ9.52
Φ9.52
Φ9.52
Φ9.52
Gas pipe
mm
Φ15.9
Φ15.9
Φ15.9
Φ15.9
Φ15.9
Φ19.05
Drain pipe
External diameter
×thickness
mm
Φ25×2.5
Φ25×2.5
Φ25×2.5
Φ25×2.5
Φ25×2.5
Φ25×2.5
Dimensions
W×D×H
mm
700×300
×1400
700×300
×1400
700×300
×1400
700×300
×1400
700×300
×1400
700×300
×1400
Net weight
kg
57
57
57
57
58
58
Notes:
① Rated cooling capacity test conditions: indoor 27°C DB/19°C WB, outdoor 35°C DB; connection
pipe length: 5 m, without height drop between units.
② Rated heating capacity test conditions: indoor 20°C DB, outdoor 7°C DB/6 °C WB; connection
pipe length: 5 m, without height drop between units.
③ In the column of “Unit external static pressure”: The figure before “/” indicates the default external
static pressure of unit before delivery, and the figures after indicate the adjustable static pressure
range of unit.
