Multi Variable Air Conditioners Compact Cassette Type Indoor Unit
15
Fig.4.5.3

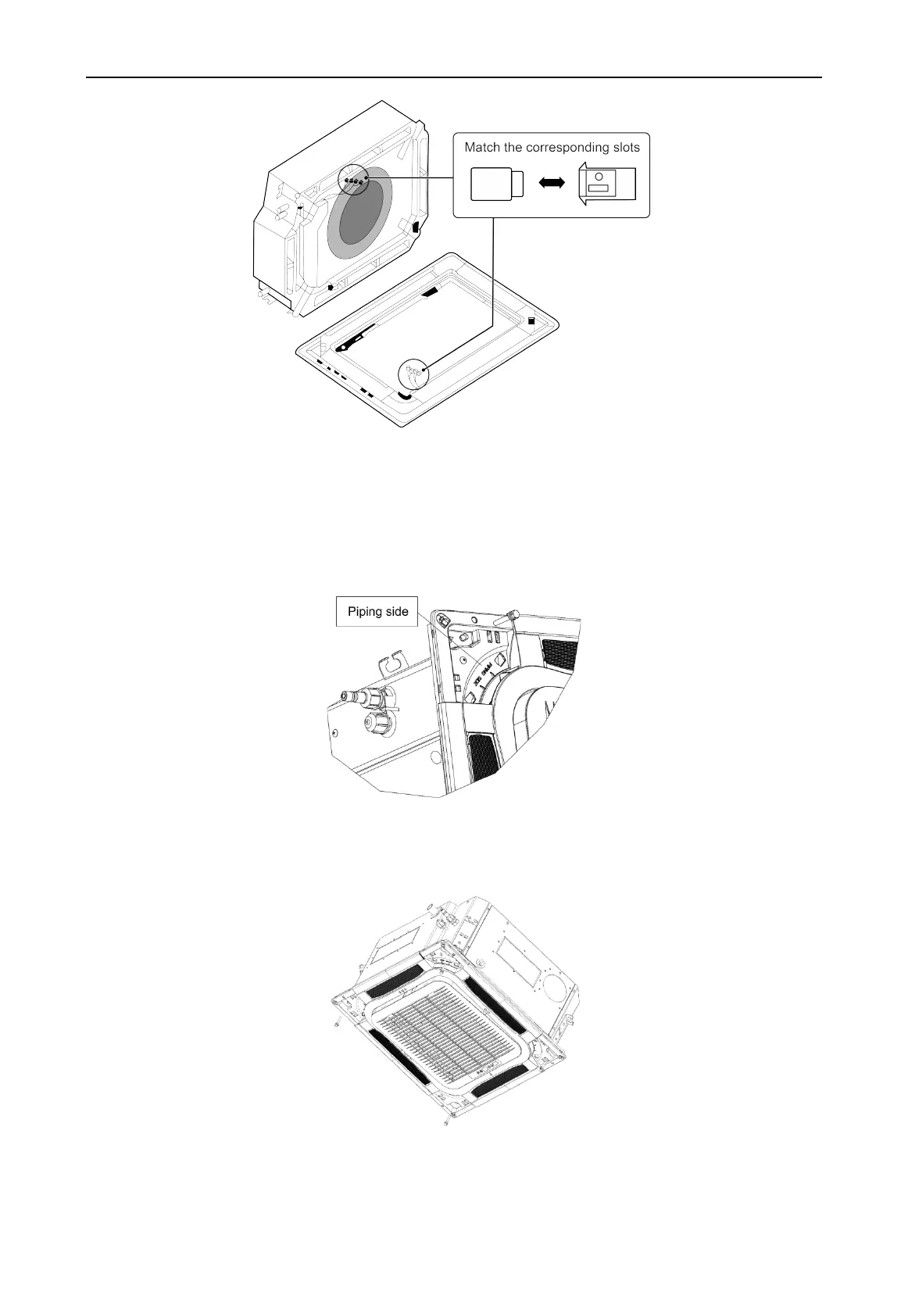

4.5.2 Panel Installation
(1) Detach the panel’s corner cap, there is a mark “piping side” on one of the 4 corners, adjust
the panel direction so as to keep the mark and fittings on the same corner, as shown in
Fig.4.5.4.
Fig.4.5.4
(2) Adjust the position of panel to make the panel holes fix at the holes on the units.
(3) Fix the 4 screws at the two side of panel, as shown in Fig.4.5.5.
Fig.4.5.5
(4) Detach the air inlet grille from panel, make a wiring connection of signal receiver. Notices
that the connection wire not stuck in the middle of body and panel, or may cause air leakage
To Next Page
