raising pipe towards drainage direction should be at least 1%~2%. If the raising pipe is
vertical with the unit, the raising height should be less than C, as shown in Fig.4.3.7.
Unit: mm (inch)

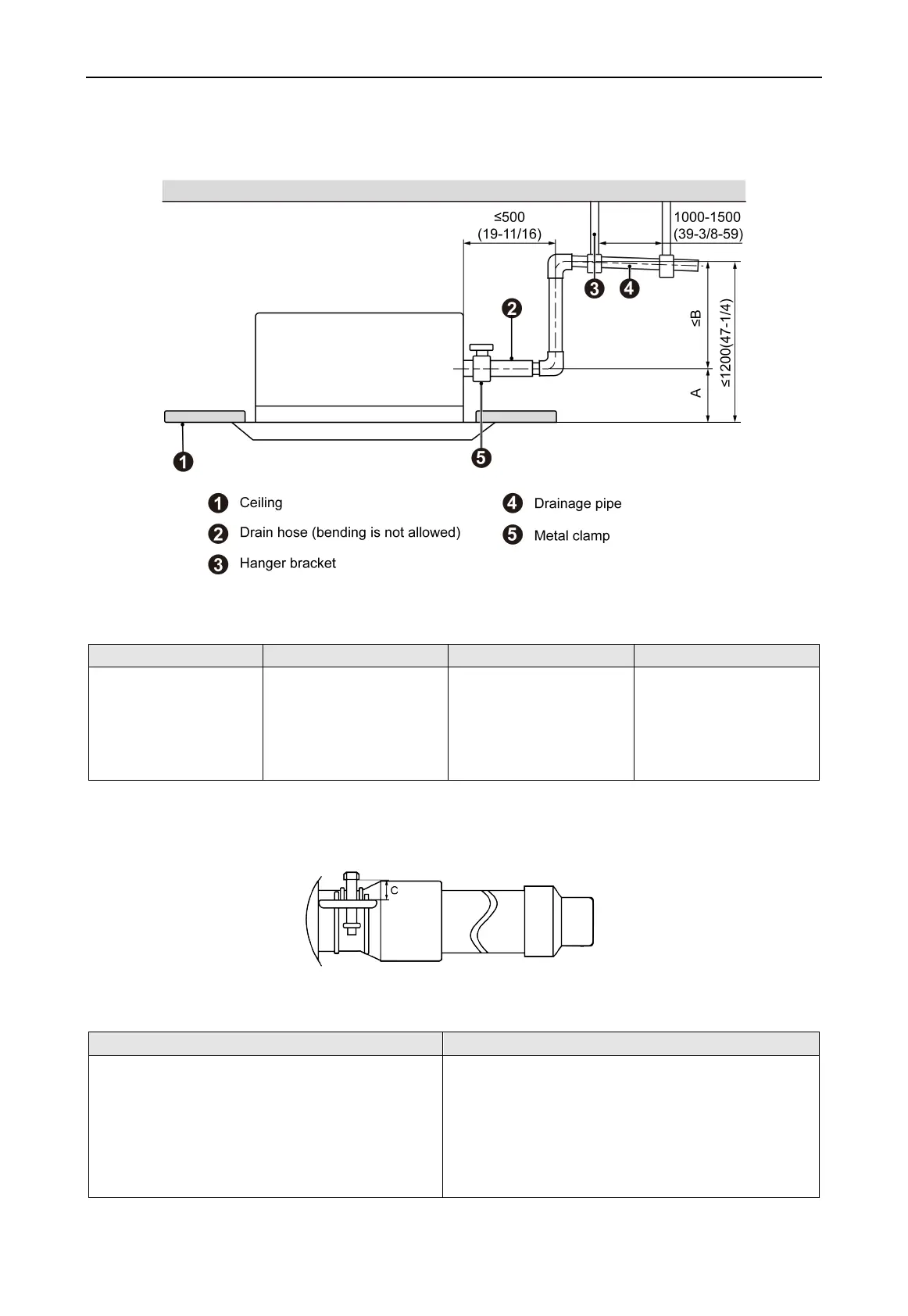

Fig.4.3.7
Unit: mm (inch)
Model
A
B
C
GMV-ND05T/E-T(U)
GMV-ND07T/E-T(U)
GMV-ND09T/E-T(U)
GMV-ND12T/E-T(U)
GMV-ND15T/E-T(U)
GMV-ND18T/E-T(U)
225
(8-7/8)
975
(38-3/8)
925
(36-7/16)
(11) During the installation, distance from soft drain pipe to the gasket is C when the bolt is
tightened. It is not allowed to apply PVC or other related glue in the joints of two ends of
drain pipe.
Fig.4.3.8
Unit: mm (inch)
Model
C
GMV-ND05T/E-T(U)
GMV-ND07T/E-T(U)
GMV-ND09T/E-T(U)
GMV-ND12T/E-T(U)
GMV-ND15T/E-T(U)
GMV-ND18T/E-T(U)
10±3(3/8±1/8)
