Gree GMV-ND28ZD/A-T

GREE GMV5 INDOOR UNIT SERVICE MANUAL
118

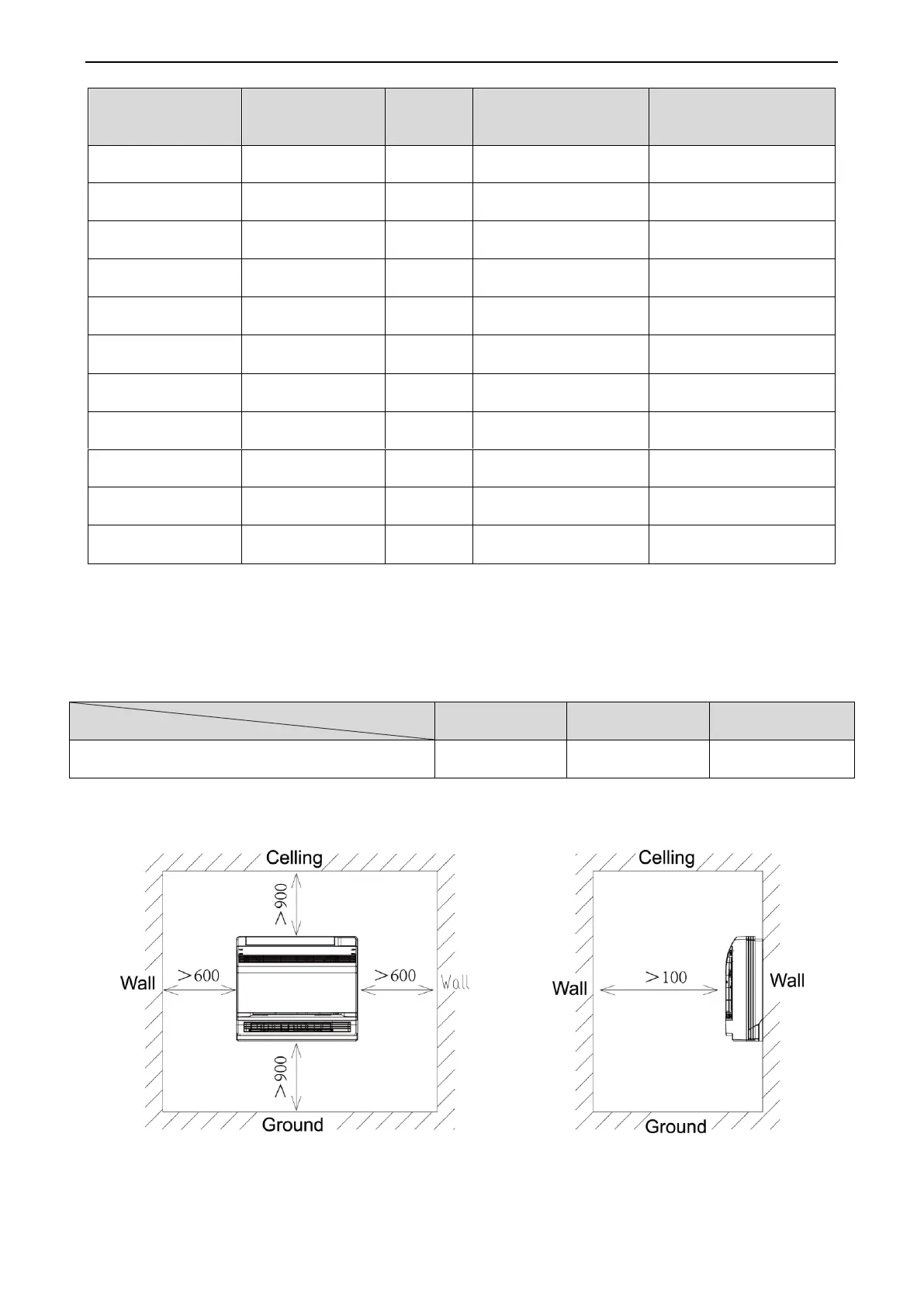

Model
Power Cord Size
Air Switch
apacity
(A)
Minimum Sectional Area of
Ground Wire
(mm
2
/AWG)
Minimum Sectional Area of
Power Cord
(mm
2
/AWG)
GMV-ND22G/A3A-T,
GMV-ND22G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND28G/A3A-T,
GMV-ND28G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND36G/A3A-T,
GMV-ND36G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND45G/A3A-T,
GMV-ND45G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND50G/A3A-T,
GMV-ND50G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND56G/A3A-T,
GMV-ND56G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND63G/A3A-T,
GMV-ND63G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND71G/A3A-T,
GMV-ND71G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND80G/A3A-T,
GMV-ND80G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND90G/A3A-T,
GMV-ND90G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND100G/A3A-T,
GMV-ND100G/A8A-T
220-240V~50Hz
/208-230V~60Hz
6
1.0/AWG18
1.0/AWG18
3.12 Console Type Indoor Unit
3.12.1 Outline and installation dimension
The table below lists the detailed dimensions.
Unit: mm
Item
Model
W
H
D
GMV-ND22C/A-T, GMV-ND28C/A-T, GMV-ND36C/A-T,
GMV-ND45C/A-T, GMV-ND50C/A-T
700
600
215
3.12.2 Installation space
Unit:mm
3.12.3 Installation notice
Connect the ends of the connection pipe with two leading pipes, and then tighten the joint nuts tightly.
Connect the connect pipe with the two relative leading pipe, tie the nut on tie –in of the connect pipe
