Gree GMV-ND28ZD/A-T

GREE GMV5 INDOOR UNIT SERVICE MANUAL
265
5.16 Concealed Floor Standing Type

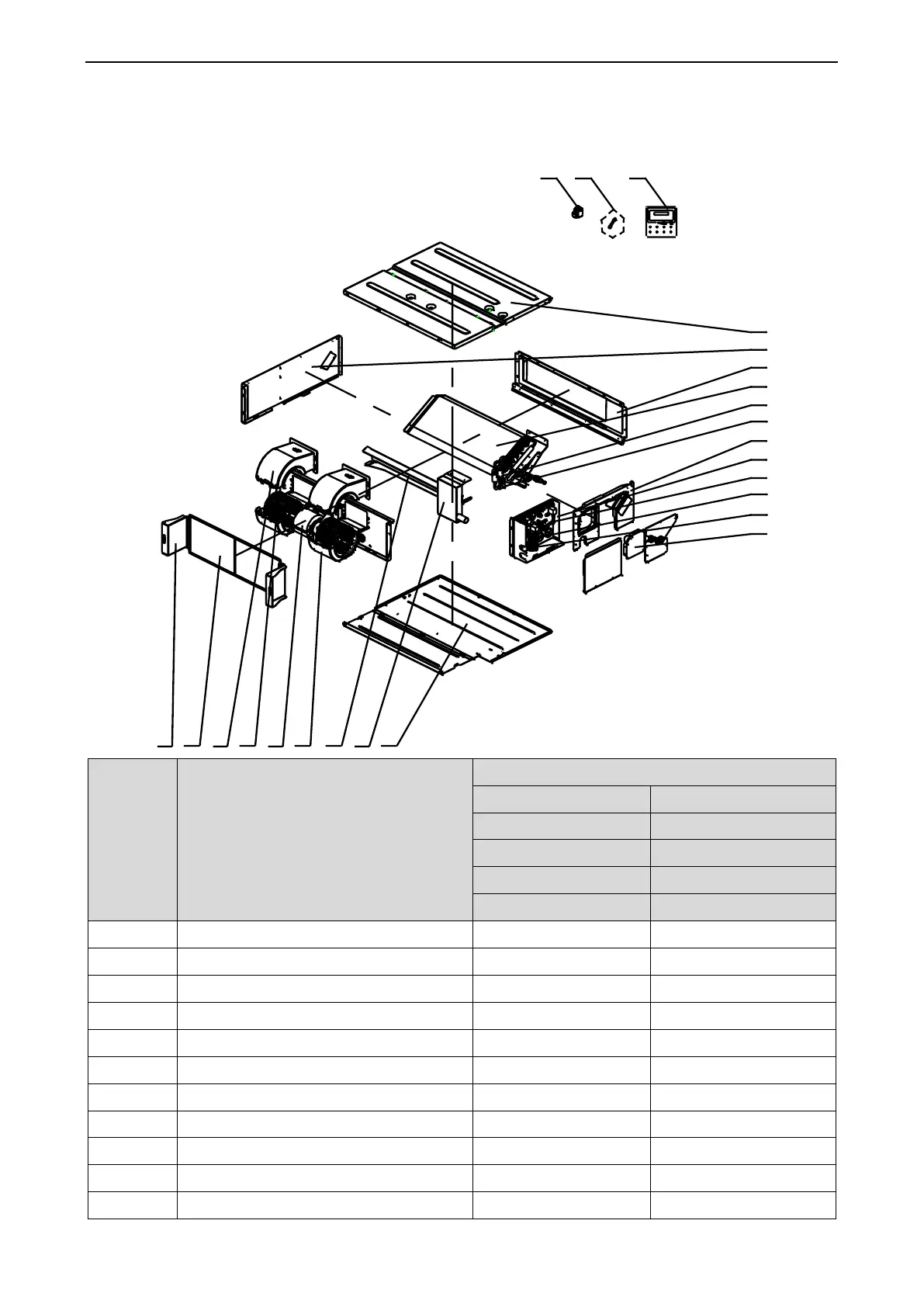

Exploded View of GMV-ND22ZA/A-T, GMV-ND28ZA/A-T, GMV-ND36ZA/A-T:
2
3
4 5 6 7 8 9
1111
1212
1010
1313
1414
1616
1717
2222
2121
1818
2323
1919
2020
1515
2424
1
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND22ZA/A-T
CM810N1490
GMV-ND28ZA/A-T
CM810N1480
GMV-ND36ZA/A-T
CM810N1460
Part code
Quantity
1
Supporter
012060002587
2
2
Filter Sub-Assy
111001000102
1
3
Front Volute Casing
26905205
2
4
Centrifugal Fan
10425200
2
5
Brushless DC Motor
15704100001
1
6
Rear Volute Casing
26905206
2
7
Water Tray Assy
000069060002
1
8
Water Tray Assy
000069000112
1
9
Bottom Cover Plate Assy
000133000016
1
10
Sealplate sub-assy (drainage)
01495318
1
11
Terminal Board
4201800002601
1
